High Security Welded Y Post Metal Fence With Razor Wires For Airport And Prison Perimeter Protection
Product Details
| Product Name | Prison Fence | Material | Low Carbon Steel Sheet |
|---|---|---|---|
| Place Of Origin | Hebei, China | Certificate | ISO9001 |
| Technique | Welding | Function | Security |
| Size | Customized | Color | Silver Or Green |
| Height | 1.8M | Length | 2.5M |
Product Description
High Security Welded Y Post Metal Fences With Razor Wires For Airport Construction
Product Overview

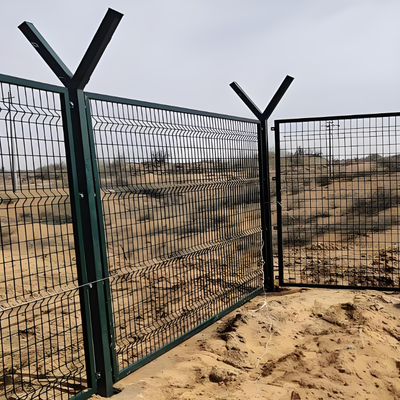

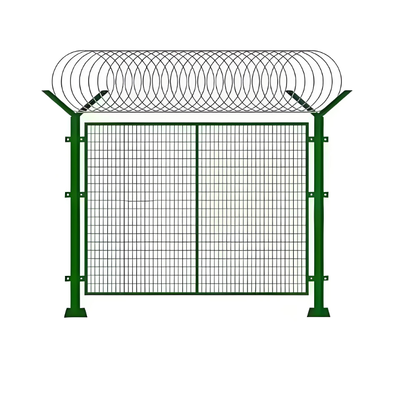

High Security Welded Y Post Metal Fences with Razor Wires are specifically designed for airport construction and perimeter protection. These fences feature Y-shaped columns made from square tubes with V-shaped tops, providing exceptional security when combined with razor wire toppers.
The Y-shaped column design typically uses 60x60mmx3mm square tubes connected to guardrail mesh through side walls. Installation is versatile, allowing for pre-embedding or flange fixation to cement floors. Additional security is achieved through blade barbed wire or ordinary barbed wire mounted on the Y-shaped columns.
Available as fence panels in various configurations including high-security fences, chain link fences, and welded metal fences. Special V-bending treatment enhances transverse strength, making this classic airport security fence suitable for worldwide airport applications.
Technical Specifications
Materials: Low carbon steel sheet, cold rolled sheet, aluminum sheet, stainless steel sheet
Processing Mode: Deep stamping and drawing process
Classification
- Electric/Hot dipped galvanized expanded mesh
- Copper plated expanded mesh
- PVC coated expanded mesh
- Aluminum expanded mesh
| Thickness (mm) | SWD (mm) | LWD (mm) | Stems Width (mm) |
|---|---|---|---|
| 0.5 | 2.5 | 4.5 | 0.5 |
| 0.5 | 10 | 25 | 0.5 |
| 0.6 | 10 | 25 | 1 |
| 0.8 | 10 | 25 | 1 |
| 1 | 10 | 25 | 1.1 |
| 1 | 15 | 40 | 1.5 |
| 1.2 | 10 | 25 | 1.1 |
| 1.2 | 15 | 40 | 1.5 |
| 1.5 | 15 | 40 | 1.5 |
| 1.5 | 23 | 60 | 2.6 |
| 2 | 18 | 50 | 2.1 |
| 2 | 22 | 60 | 2.6 |
| 3 | 40 | 80 | 3.8 |
| 4 | 50 | 100 | 4 |
| 4 | 60 | 120 | 4 |
| 4 | 80 | 180 | 4 |
| 4 | 100 | 200 | 4 |
| 4.5 | 50 | 100 | 5 |
| 5 | 50 | 100 | 5 |
| 5 | 75 | 150 | 5 |
| 6 | 50 | 100 | 6 |
| 8 | 50 | 100 | 8 |
Standard Dimensions: Width: 0.5m-2.0m, Length: 30m, 50m (Other sizes available upon request)
Product Advantages
- Openings permit free flow of light, heat, sound & air
- Won't unravel when cut, unlike woven wire mesh
- Available in various mesh configurations and decorative patterns
- Wide range of colors and openings
- Cost effective and environmentally friendly
- Raised surface provides slip resistance, ideal for walkways
- Light weight suitable for outer wall hanging
- Durability and low maintenance requirements
Applications
Expanded metal fencing offers versatile applications across architectural, commercial, industrial, and building industries. Ideal for decorative applications including architectural curtain mesh and decorative spray coated expanded metal mesh.

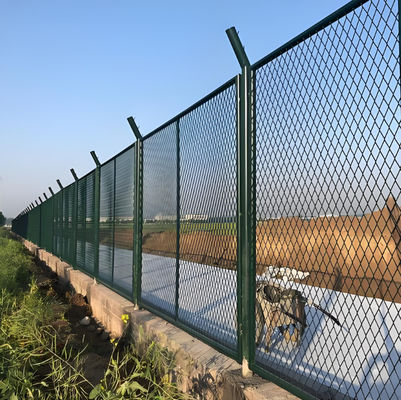

Airport fences provide excellent corrosion resistance and durability with enhanced safety features. Widely used not only in airports but also in sports venues, public spaces, schools, industrial facilities, and various other secured areas.
Frequently Asked Questions
When can I get the price?
We usually quote within 12 hours after receiving your inquiry.
How can I get a sample to check your quality?
After price confirmation, you can request samples to evaluate our product quality.
Can you do the design for us?
Yes. We have a professional team with rich experience in packaging box design and manufacturing.
How long can I expect to get the sample?
After payment of sample charges and confirmation of files, samples will be ready for delivery in 3-7 days.
What about the lead time for mass production?
Lead time depends on order quantity and season. Minimum order quantity lead time is approximately 7 days.
