Y Shaped Post High Security Airport Metal Fencing With Razor Wire Barbed Wire
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Prison Fence | Material | Low Carbon Steel Sheet |
|---|---|---|---|
| Place Of Origin | Hebei, China | Certificate | ISO9001 |
| Technique | Welding | Function | Security |
| Size | Customized | Color | Silver Or Green |
| Height | 1.8M | Length | 2.5M |
| Highlight | Razor Wire Metal Fencing,High Security Metal Fencing,Airport Metal Fencing |
||
Product Description

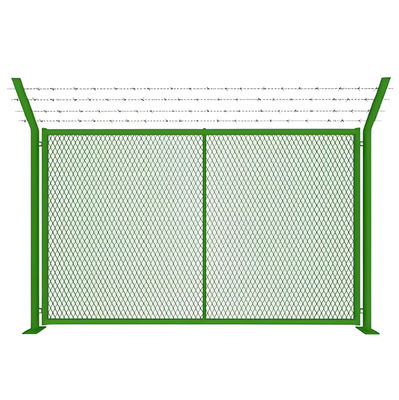

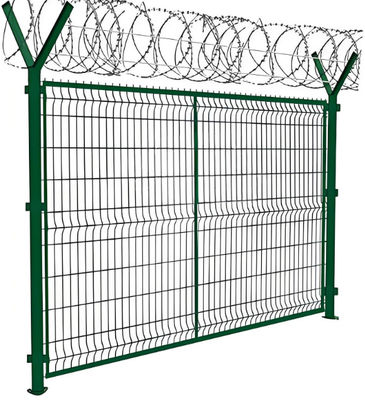

Y Shaped Post High Security Airport Metal Fencing With Razor Wire Barbed Wire
High Security Prison Fencing Description

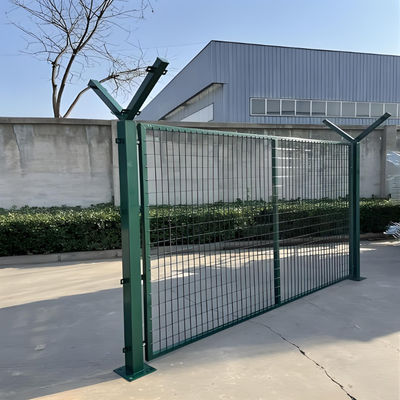

The composition of Y-shaped column guardrail network. This type of column is generally made of square tubes and welded with a V shape on the top. A small number of them are cylindrical. The square columns are generally 60x60mmx3mm and are connected to the guardrail mesh through the side wall. The installation of this isolation mesh is almost not affected by any movement and can be pre-embedded or fixed to the cement floor through flanges. The top of the guardrail can be equipped with a blade barbed wire or ordinary barbed wire through the Y-shaped column to further protect the product.
High Security Prison Fencing Specification
* Material: Low carbon steel sheet, cold rolled sheet, aluminum sheet,stainless steel sheet
* Processing mode: Deep stamping and drawing process
* Classification:
I. Electric/Hot dipped galvanized expanded mesh;
II. Copper plated expanded mesh;
III. PVC coated expanded mesh;
IV.Aluminum expanded mesh.
| Thickness (mm) | SWD (mm) | LWD (mm) | Stems width (mm) | Width & Length |
| 0.5 | 2.5 | 4.5 | 0.5 | |
| 0.5 | 10 | 25 | 0.5 |
Width :0.5m-2.0m Length :30m,50m
Other sizes can be as request. |
| 0.6 | 10 | 25 | 1 | |
| 0.8 | 10 | 25 | 1 | |
| 1 | 10 | 25 | 1.1 | |
| 1 | 15 | 40 | 1.5 | |
| 1.2 | 10 | 25 | 1.1 | |
| 1.2 | 15 | 40 | 1.5 | |
| 1.5 | 15 | 40 | 1.5 | |
| 1.5 | 23 | 60 | 2.6 | |
| 2 | 18 | 50 | 2.1 | |
| 2 | 22 | 60 | 2.6 | |
| 3 | 40 | 80 | 3.8 | |
| 4 | 50 | 100 | 4 | |
| 4 | 60 | 120 | 4 | |
| 4 | 80 | 180 | 4 | |
| 4 | 100 | 200 | 4 | |
| 4.5 | 50 | 100 | 5 | |
| 5 | 50 | 100 | 5 | |
| 5 | 75 | 150 | 5 | |
| 6 | 50 | 100 | 6 | |
| 8 | 50 | 100 | 8 |
Metal Advantages
1.Openings permit free flow of light ,heat ,sound & air.
2.It won't unravel when cut.unlike woven wire mesh.
3.Available in a variety of mesh configurations and decorative patterns.
4. A wide range of colors and openings.
5. Cost effective and environmentally friendly.
6. Raised surface is slip resistance and also ideal for walkways.
7. Light weight is ideal for outer wall hanging.
8. Durability and low mainternance.
High Security Prison Fencing Application
The versatility of expanded metal makes it have coutless applications in architectural ,commercial ,industrial ,building and other industries , ideal decorative applications includes :
Architectural Curtain Mesh Metal Fabric For Decorative Spray Coated Expanded Metal Mesh
Architectural Curtain Mesh Metal Fabric For Decorative Spray Coated Expanded Metal Mesh
The Airport Fence is a common protective fence product with corrosion resistance and durability. One of the main characteristics is its safety, which is not only used in airports, but also widely used in sports venues, public places, schools, industries and other various areas.
FAQ
1.when can I get the price?
We usually quote within 12 hours after we get the inquiry.
2.how can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
3.Can you do the design for us?
Yes. We have a professional team with rich experience in packaging box design and manufacturing.
4.How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files,the samples will be ready for delivery in 3-7 days.
5.What about the lead time for mass production?
It depends on the order quantity and the season you place the order.The lead time of MOQ is about 7days.
