Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Low Carbon Steel | Color | Yellow |
|---|---|---|---|
| Product Name | Warehouse Steel Fence | Brand Name | LaiDi |
| Style | Industrial | Height | 1-2.5m |
| Length | 2-3m | Wire | 4mm |
| Mesh Opening | 50x50mm | Post | Square Post |
| Packing | Metal Pallet | Usage | Workshop Or Warehouse |
| Highlight | Yellow Metal Wire Mesh Fencing,Workshop Isolation steel mesh fencing,Welded Metal Wire Mesh Fencing |
||
Product Description

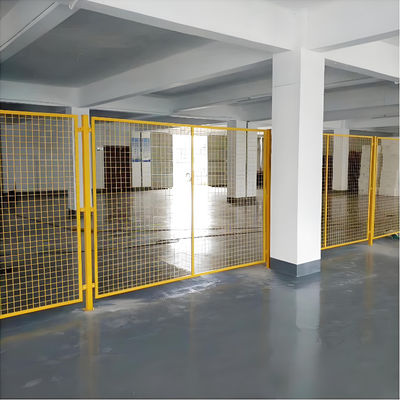

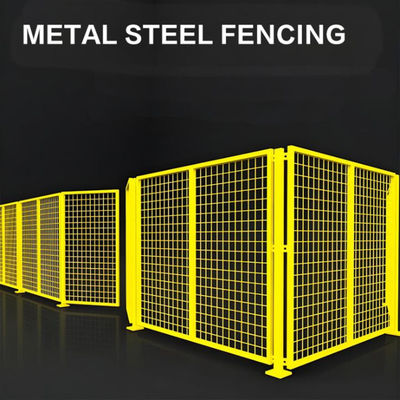

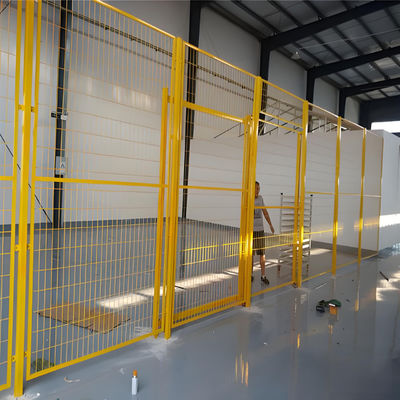

Yellow Color Welded Workshop Isolation Net Partition Metal Wire Mesh Fencing
Introduction of Metal Wire Mesh Fencing
A guardrail is a device used for protection and isolation, usually composed of cross bars, vertical bars and columns, used to
limit the movement or range of activities of people, vehicles or other items to prevent accidents or dangerous situations. It is
used in factories, workshops and other places to isolate the working area to ensure the safety of workers and production order.
Surface dipping process, pure color, not easy to fade. Easy to disassemble and assemble, good reusability, and the fence can be rearranged as needed. Carefully polished, strict requirements for smooth, harsh process can be customized according to customer needs.
Parameters of Workshop isolation network
| Fence Height(cm) |
Panel Width |
Wire Diameter |
Mesh size(mm) | Folds No. | Post style | Post size(mm) | Post Length(cm) |
| 103 |
200cm
225cm
250cm |
3.5mm 4.0mm 4.5mm 5.0mm 6.0mm 8.0mm |
50x50 50x100 50x150 50x200 60x120 75x150 |
2 | Square post 1 | 40x60x1.5 | 150 |
| 123 | 2 | 40x60x1.8 | 170 | ||||
| 150 | 2/3 | 40x60x2 | 197 | ||||
| 153 | 2/3 | Square post 2 | 60x60x1.5 | 200 | |||
| 170 | 3 | 60x60x1.8 | 217 | ||||
| 173 | 3 | 60x60x2 | 220 | ||||
| 180 | 3 | 60x60x2.5 | 227 | ||||
| 193 | 3 | Peach post | 50x70 | 240 | |||
| 200 | 3/4 | 70x100 | 250 | ||||
| 203 | 3/4 | Holland post | 48x1.5 | 250 | |||
| 240 | 4 | 290 |
Surface Treatment:
1. Hot-dip Galvanized: To work electro chemical protection, to prevent steel rusting from inside to outside
2. Zinc Phosphate: To enhance the adhesive power of coated film to base steel
3. Epoxy Zinc-rich Powder Coat: Excellent antiseptic performance and impact resisting performance
4. Polyester Color Coat: Good wear and UV-stability, Long Anti-dirty performance and self-cleaning
Color: All our fence can be powder coated in a colour of your choice
Application Scenarios
1.Robot Workstation Isolation
Surrounding automated machinery or robotic arms to prevent accidental contact and ensure operator safety.
2.Warehouse Logistics Sorting Areas
Dividing storage zones for efficient material handling and segregating high-traffic areas from restricted zones.
3.Production Line Segmentation
Separating assembly lines or hazardous equipment areas to streamline workflows and comply with safety regulations.
Advantages of Workshop Isolation Network:
They are different from woven wire mesh fences. Due to the line welding processing, it has more firm structure and longer service life compared with woven wire fences.
Hot dipped zinc coated welded wire fence offers thicker zinc plating than electro galvanized one and stronger zinc plating adhesion, while costs a little higher.
PVC coated welded wire fence has more colors available than galvanized welded fences.
The surface treatment of welded wire fence include electro galvanized, hot-dipped galvanized, PVC coated
Packing Method
In Metal Pallet
