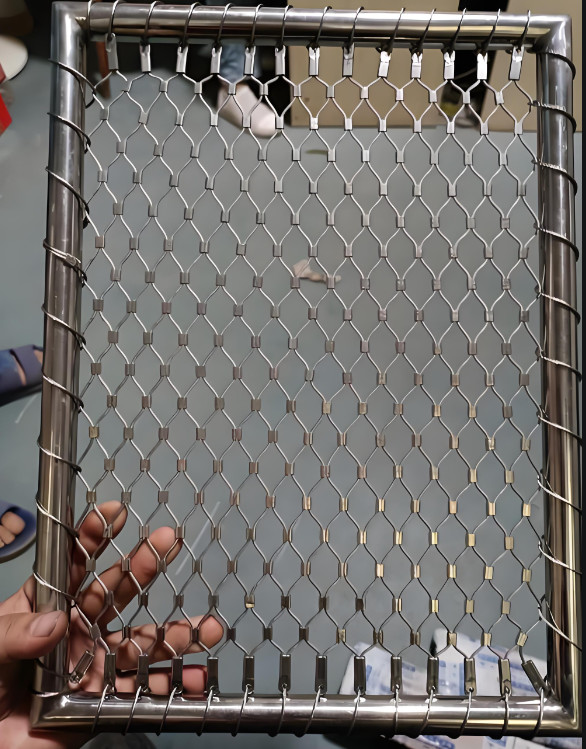

316L Plain Weave Knotless Stainless Steel Cable Rope Mesh With Ferrule Connection

316L Plain Weave And Knotless With Ferrule Connection Stainless Steel Cable Rope Mesh

Description of Stainless Steel Wire Rope Mesh

Cable mesh, made of high quality stainless steel, is a fabric of particular resilience and flexibility. Invented in 2000, it opens up a new world of spatial possibility using cables. And not doubt, it sweeps across the global market quickly thanks to its high strength, durability as well as corrosion resistance.

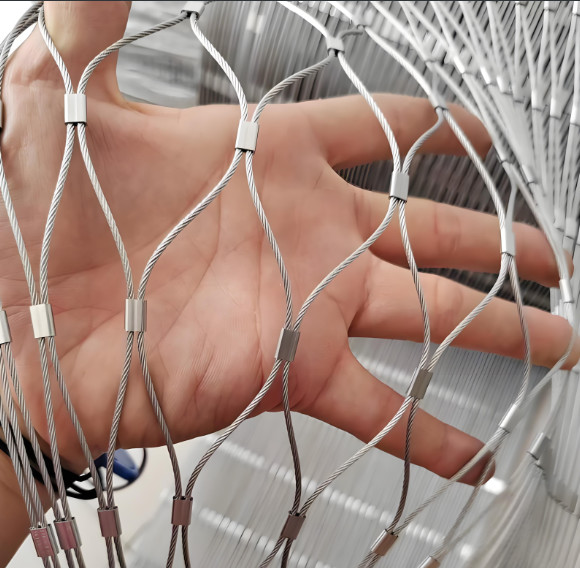

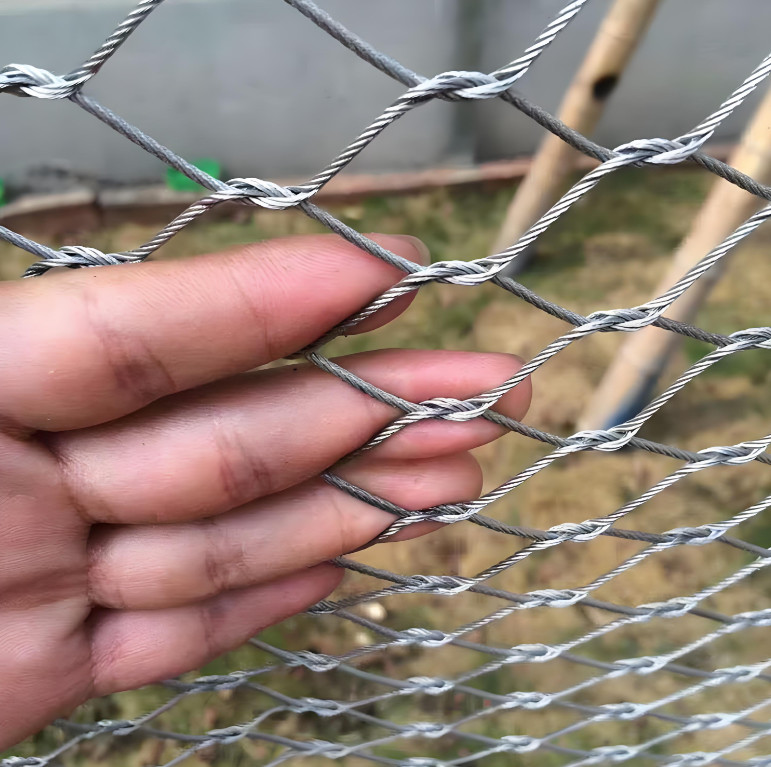

Both knotted and ferrule type cable mesh feature rhombic patterns, but they are different in the combination way of cables. The cables of former one are inter-woven together, in contrast, the latter one gets its name for seamless ferrules for combining. And the color of the ferrule type cable mesh can be customized. As to sequin cable mesh, our company can provide customized services to meet the different needs of your project. Normally, the knotted type and ferrule type in the right picture are more welcomed by our customers.

Our range of cable meshes are manufactured from high tensile stainless steel AISI 304, 304L, 316 or 316L. Meanwhile, these cables are available in constructions of 7 × 7, 7 × 19 or 1 × 19 and in diameter from 1.2 mm to 4mm. Other specifications can also be manufactured to match your design requirement.

Specification:

Material of Animal Enclosure 7x19 Stainless Steel Wire Rope Zoo Mesh : Stainless Steel 304 , 316 , 316L , etc.
Cable Diameter of Animal Enclosure 7x19 Stainless Steel Wire Rope Zoo Mesh : 1.2 - 3.2mm
Animal Enclosure 7x19 Stainless Steel Wire Rope Zoo Mesh is a vibrant, premium-quality product .
Stainless steel mesh used for anti-hill mesh, aviary mesh,zoo fencing,farm fencing and other security mesh,with stainless steel material and feature of rust-proof ,strongess and durability.

Material: stainless steel 304, 304L, 316, 316L.

Ferrule material: tinned copper, nickel plated copper, stainless steel.

Surface treatment: silver or black oxide finish.

Construction of wire cable: 7 × 7, 7 × 19.

Cable diameter: 1.0–5.0 mm.

Mesh opening sizes: 20–200 mm.

Product Wire Rope Style Different Color

Hot specifications ordered by customers:

Rope mesh material SS304 common used, for aviary, mainly for parrots, wire diameter 1.2 mm, hole 2.5 cm, weight 0.5kg/m2.
Made of SS304 material, wire diameter 1.6 mm, aperture 1".
Material: SS304, wire diameter, 2.5 mm, aperture: 2".
304 stainless steel wire mesh, wire diameter 2 mm, aperture 4 cm.
Stainless steel rope mesh, 2.0 mm diameter, 38 × 65.8 mm opening size, 676 normal break, 20 feet × 4 feet and 70 feet by 3 feet.
1.2 mm stainless steel 304 wire thickness with 1 inch × 1 inch hole size.
Zoo mesh for a cockatoo. Probably 1/2" or 3/4". Stainless steel and galvanized or other coating.
Pre-made perimeter fencing for a small zoo 12 feet tall anti climb with incline at top for barbed wire and also want 9 gauge chain link in 12 foot rolls.
Usually for zoo, the specification is material SS304, 2 mm wire diameter, opening 50 mm × 50 mm is OK.
Stainless steel mesh for enclose sea lions SS316 wire is better than 304. Because if for aquarium, the environment is damp, 316 wire is not easy to be rusty than 304.
Wire thickness: 2 mm, opening size: 50 mm.
Wire thickness: 3 mm, opening size: 50 mm.
Material: SS304, wire diameter: 1.2 mm, hole: 1", weight: 0.5 kg.

Application

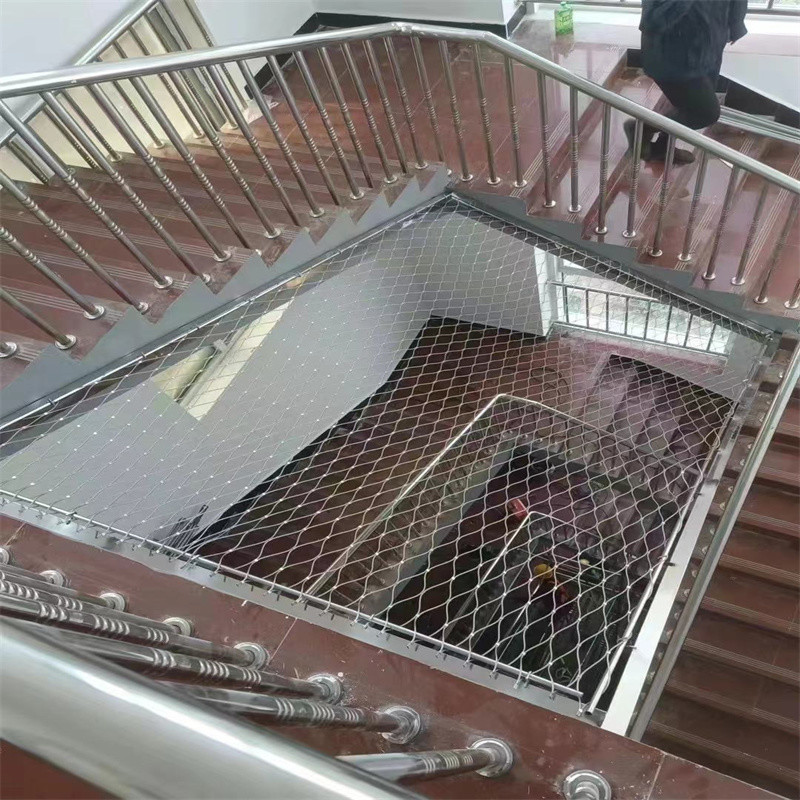

1. Steel Mesh Balustrade - bridge, stair, balcony, path

2. Cable Mesh - Excellent Solution to Safety

3. Safety Net - Structural Measure to Prevent Suicide

4. Helipad Safety Net - Modular Heliport Webbing

5. Cable Zoo Mesh - Solution to Enclosing Most Animals

6. Aviary Netting - Lightweight, Durable and Long Lasting

7. Green Facade - Cable System for Most Climbing Plants

Stainless steel cable mesh mainly has the following advantages:

1. High tensile strength with light weight.

2. Safe and environmental protection, close to nature.

3. Good resistance for weather and corrosion.

4. High transparency and good invisible effect.

5. Large mesh span for huge surface installation.

6. The structure is strong and durable, with a service life of more than 30 years

7. Various graphics and structures can be designed arbitrarily.

8. Easy to install, can be constructed on any structure.

Packing

1.The outside is packed in wooden cases
2.Special package can be customized. Welcome to consult us !

Our Services

1.Design Assist
2.Assessed Cost
3.Suitable Mesh System and Sample Support
4. Solutions
5.Deepen Drawings
6.Superior Products and Accessories
7. Install and Maintain

Company Information

We supply various wire mesh products, metal wire, wire mesh machines, with our subordinate plants(i.e. weaving mesh plant, welding plant , galvanized plant, razor wire plant,other metal products plant), as well as more than 200 sets of machines.

We can supply various Wire Mesh Fence, Chain Link Fence,Temporary Fence, Razor Barbed Wire, Hesco Barrier,Welded Roll Fence,358 Fence,Gabion Box,Rockfall Netting,Stainless Steel Wire Mesh, Barbecue Grill Wire Mesh, Welded Wire Mesh, Crimped Wire Mesh,,Vibration Screen Mesh,Mine Screening Mesh, Galvanized Wire.
We try to provide products with more variety, good quality, reasonable price, timely delivery and reliable after sales services. It is our rule to meet customers' requirements and to satisfy our customers. We hope to build up friendly trade relationship with customers worldwide.
