1700MPA High Tensile Rockfall Mesh SNS Slope Protection Wire Mesh Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Wire Rope Mesh | Type | Chain Link Mesh |
|---|---|---|---|
| Material | Steel | Place Of Origin | Hebei, China |
| Weave Style | Bending | Technique | Woven |
| Feature | Durable | Certificate | ISO9001 |
| Loading Port | Tianjin Port | Application | Protection Mesh |
| Tensile Streagth | 1700MPA | M.O.Q | 500 Square Meters |
| Highlight | 1700MPA High Tensile Rockfall Mesh,SNS Slope Protection Wire Mesh,Slope Protection Wire Mesh Stainless Steel |
||
Product Description
High Tensile Rockfall Net SNS Slope Protection Wire Mesh Rockfall Barriers Mesh

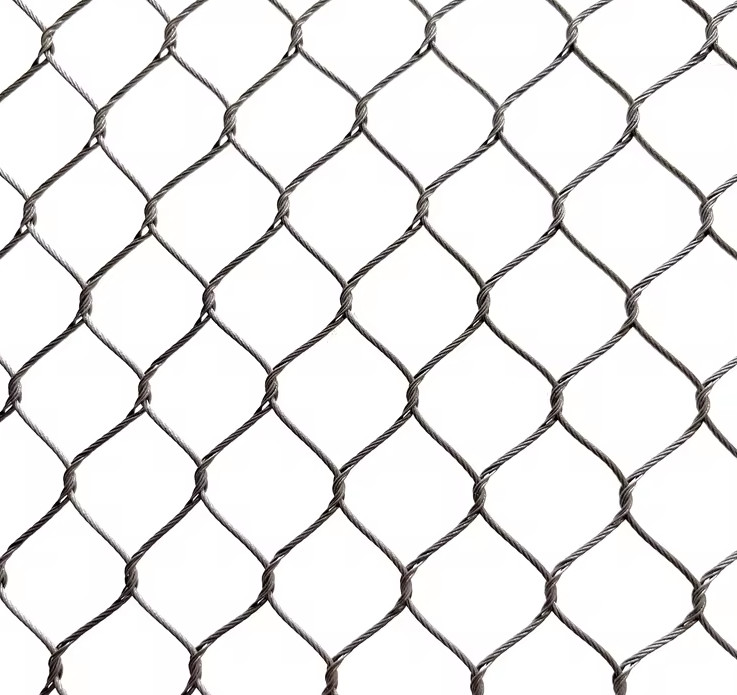

Description of Stainless Steel Wire Rope Mesh

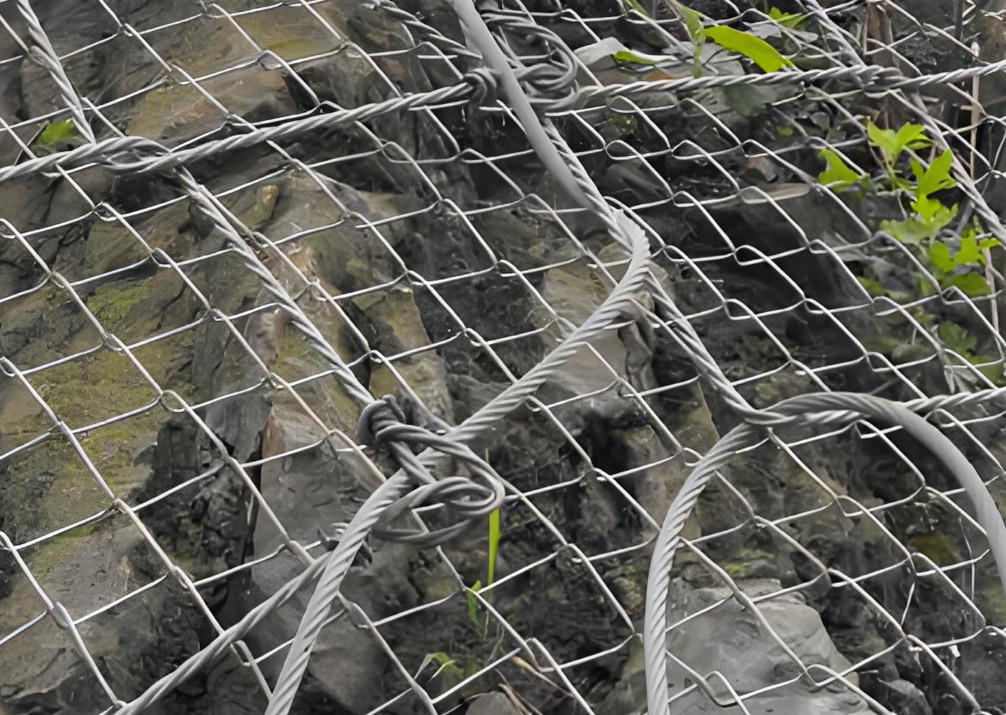

High tensile steel wire mesh belongs to the SNS (Soft Net System) active protection system. It covers the slope surface with potential geological hazards by means of prestressed steel reinforcement (anchor) or steel wire rope anchor (with edge support rope), special anchor plate and edge support rope if necessary. Prestressed anchor part of flexible network realization of pretensioned, so as to form continuous support of the whole slope, the pre tensioning operation make the system as much as possible close to slope surface and formed the inhibition of local rock mass displacement of moving or in the event of a local or destroy it after wrapped bound (retention) in situ prestressed near, so as to realize its active protection (reinforced) function.
Specification:
Materia: High carbon steel wire.
Surface treatment: Hot dipped galvanized, zinc-aluminum coated.
Zinc thickness: No less than 150 g/㎡.
Wire diameter: 3 mm, 4 mm.
Mesh type: Rhomboid hole.
Mesh size : 65 mm inscribed circle diameter.
Tensile strength: Minimum 1770 MPa.
Braking load of single wire: 12.5 kN.
Mesh roll width: 1–3.5 m.
Mesh roll length:10–30 m.
Fitting : Steel anchor, claw type spike plate, soil or rock nails,clips, sewing rope, boundary rope. (The steel anchor is made
ofdeformed steel bar of 25 mm diameter)
| Technical data | 65/3 |
| Wire diameter | 3mm |
| Steel quality | high-tensile steel wire |
| Tensile resistance of a wire | 12.5kN |
| Mesh shape | Rhomboid |
| Tensile strength of steel wire | ＞1770 N/mm² |
| Tensile strength steel wire mesh | min.150kN/m |
| Diagonal | 83×143mm(+/-3%) |
| Mesh width | 65mm(+/-3%) |
| Compound protection | Zn/AI coating of steel wires |
| Compound of corrosion protection | 95% Zn / 5% AI |
| Coating | min.150g/㎡ |
| ≤5% dark brown rust in salt spray test according to EN ISO 9227 | 1700 hours(ETA-17/0118) |
| Roll with | 2m,2.5m,3m,3.5m,4m,customized |
| Roll length (as per site requirement) | 10m,20m,30m,customized |
| Mesh edges | Mesh ebds knotted(customized) |
Features of Slop Protection Net/Tecco Mesh
* Safety. The tecco mesh can be used to stabilize any kinds of slope, including rocks and loose soil slopes.
* High tensile strength. The tecco mesh is made of high tensile spring wire, which the tensile strength is more than 1770 MPa,which can supply maximum protection to the slope and people.
* Environmental friendly. The rhomboid mesh can let the plants grow regularly and make the slope or maintain be more beautiful.
* Rhomboid mesh structure. This structure provide most stability for the geological conditions and can be tightly secured on the slope even on the irregular mountains.

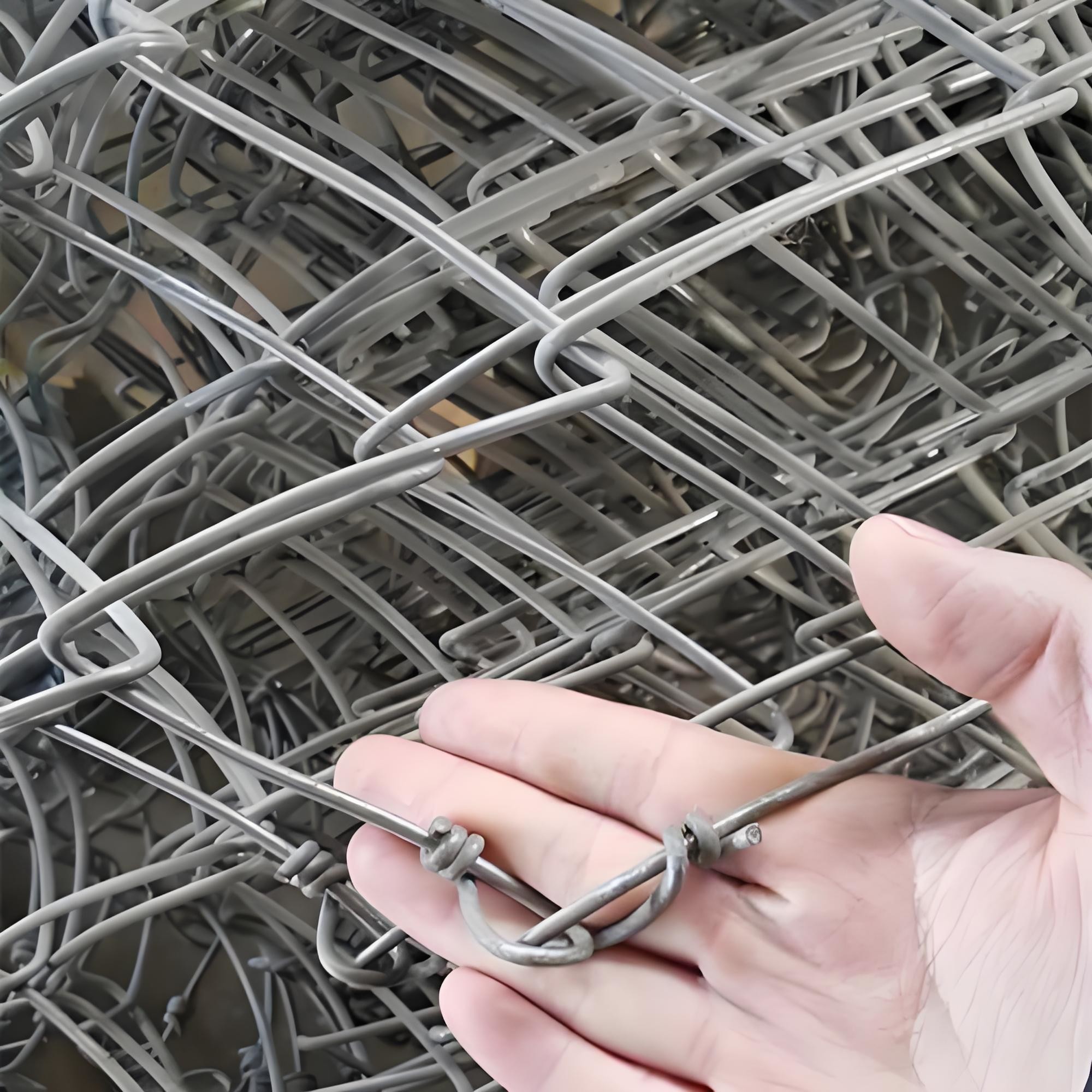

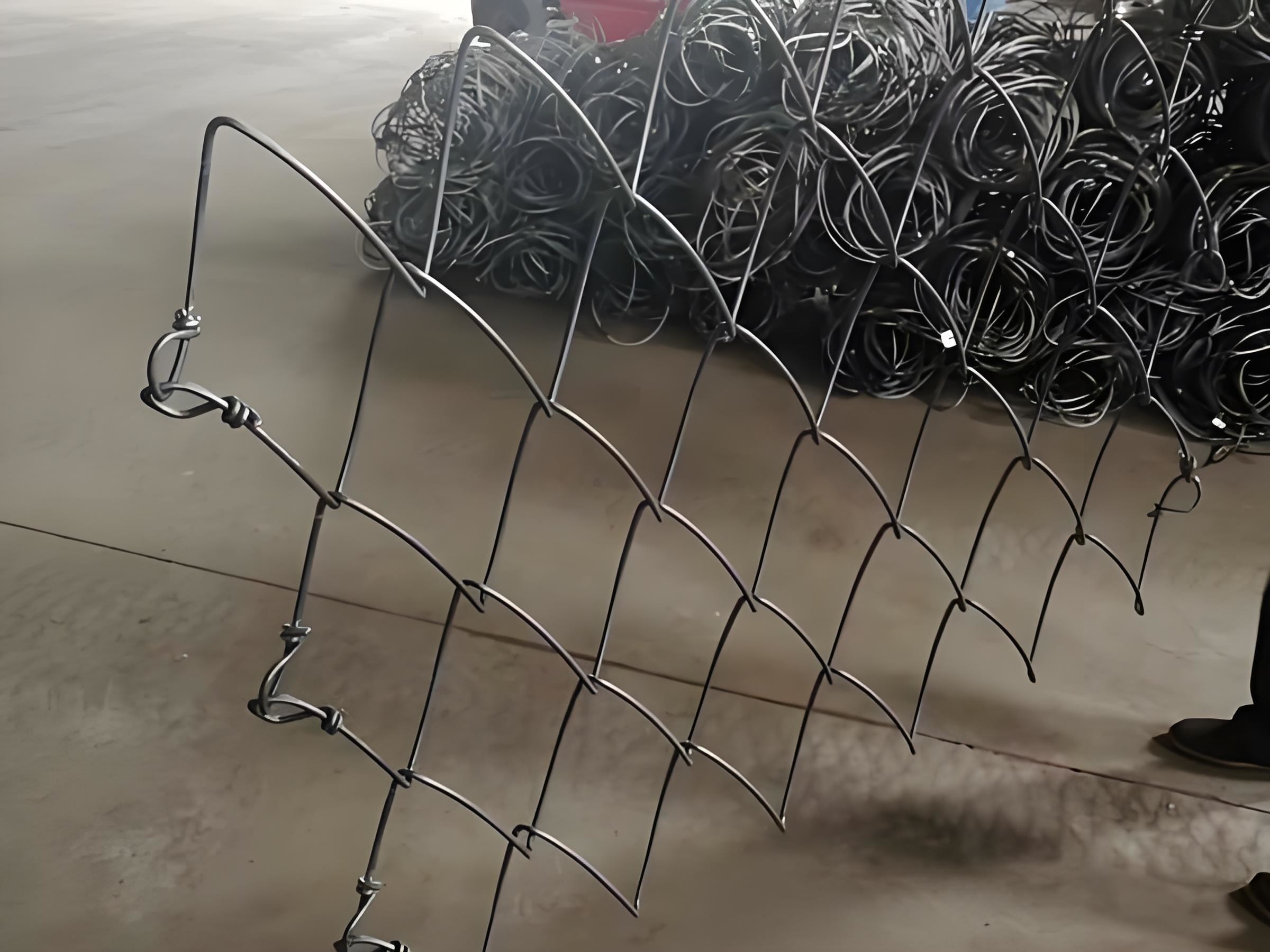

* Knotted ends. Different from the chain link fence which has wrapped edge, the tecco mesh has knotted ends which can improve the tensile strength and stability of the structure.
* Lightweight. The tecco mesh has excellent strength-to-weight ratio, which make it easy to install and transport.
* Durable. The corrosive resistance surface let the tecco mesh has outstanding corrosive resistance performance, and the high tensile strength material make the tecco mesh be used for a long service life.
Applications of slope protection net
1. Landslide protection, such as slope erupting, wind corrosive.
2.Control and lead the river and flood.
3.Preventing the water and soil lost, protecting the bridge.
Advantages of Slope Protective Netting
1. It has the characteristics of high flexibility, high protective strength and easy spreading
2. Adapt to various complex terrains
3. Modular installation, more flexible and convenient
4. Short construction period and low construction cost
5. Slope protection net has the functions of soil stabilization and slope protection, making the rock more stable
6. The special anti-corrosion treatment process of the slope protection net makes its service life up to 50-80 years
Packing & Delivery
Our Services
1.Design Assist
2.Assessed Cost
3.Suitable Mesh System and Sample Support
4. Solutions
5.Deepen Drawings
6.Superior Products and Accessories
7. Install and Maintain
Company Information
We supply various wire mesh products, metal wire, wire mesh machines, with our subordinate plants(i.e. weaving mesh plant, welding plant , galvanized plant, razor wire plant,other metal products plant), as well as more than 200 sets of machines.
We can supply various Wire Mesh Fence, Chain Link Fence,Temporary Fence, Razor Barbed Wire, Hesco Barrier,Welded Roll Fence,358 Fence,Gabion Box,Rockfall Netting,Stainless Steel Wire Mesh, Barbecue Grill Wire Mesh, Welded Wire Mesh, Crimped Wire Mesh,,Vibration Screen Mesh,Mine Screening Mesh, Galvanized Wire.
We try to provide products with more variety, good quality, reasonable price, timely delivery and reliable after sales services. It is our rule to meet customers' requirements and to satisfy our customers. We hope to build up friendly trade relationship with customers worldwide.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What’s the main market of your company?
A: We have customers all over the world.
6. Q: How much production capacity of your company one year?
A: This depends on your needs.
7. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Anping county,Hengshui City, Hebei, China,
Near Shijiazhuang Airport and Beijing Airport. We offer transportation service.
