8mm Flexible Stainless Steel Rope Net , Slope Protection Netting For Slope Protection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Wire Rope Mesh | Type | Chain Link Mesh |
|---|---|---|---|
| Material | 304 SS Wire | Place Of Origin | Hebei, China |
| Weave Style | Bending | Technique | Woven |
| Feature | Durable | Certificate | ISO9001 |
| Loading Port | Tianjin Port | Application | Protection Mesh |
| Net Width | 4m | Net Hole | 30cm |
| Highlight | Flexible Stainless Steel Rope Net,8mm Stainless Steel Rope Net,Slope Protection Netting |
||
Product Description
8mm Flexible Preservative Slope Protection Wire Rope Net For Slope Protection
Description of Stainless Steel Wire Rope Mesh

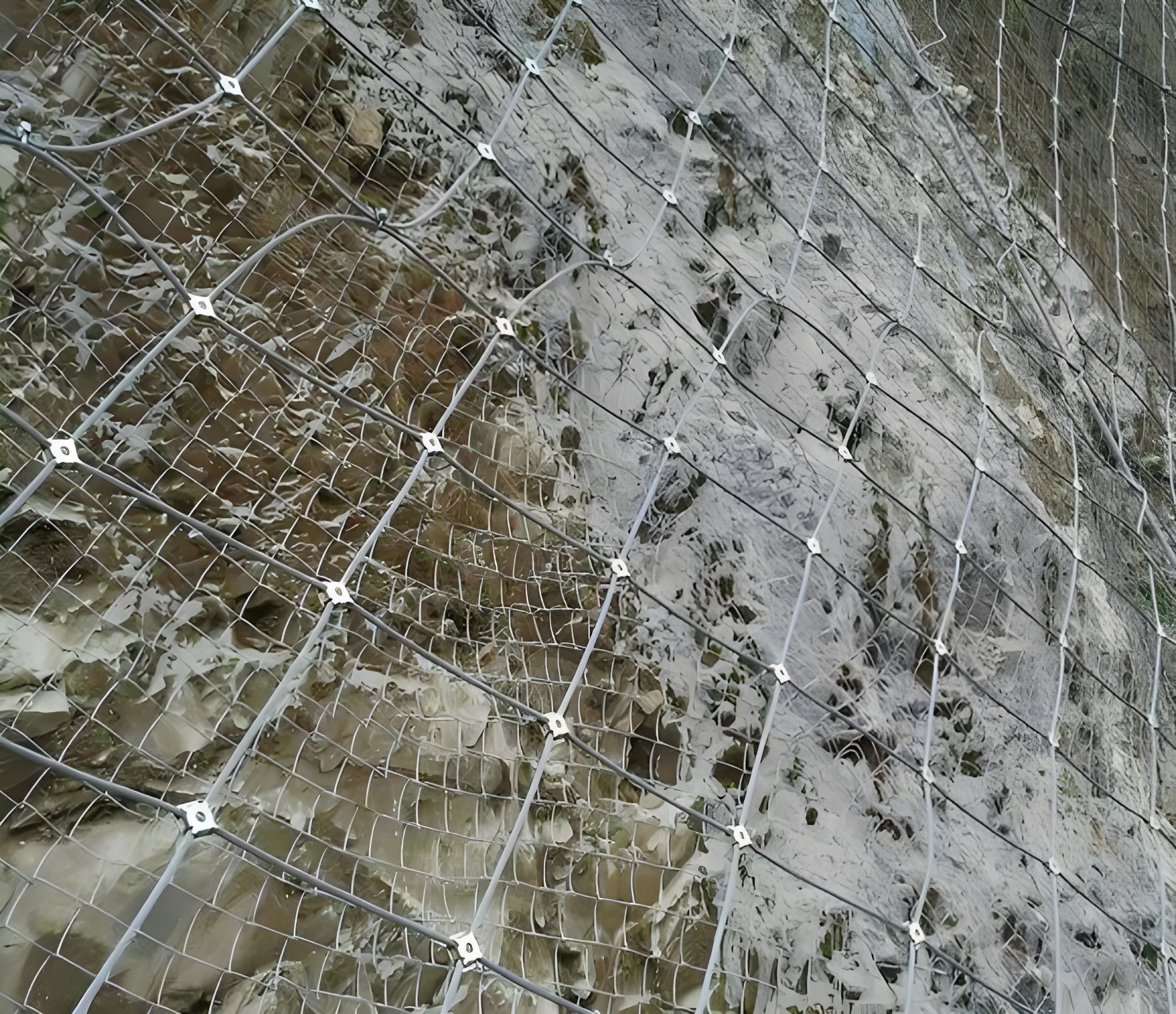

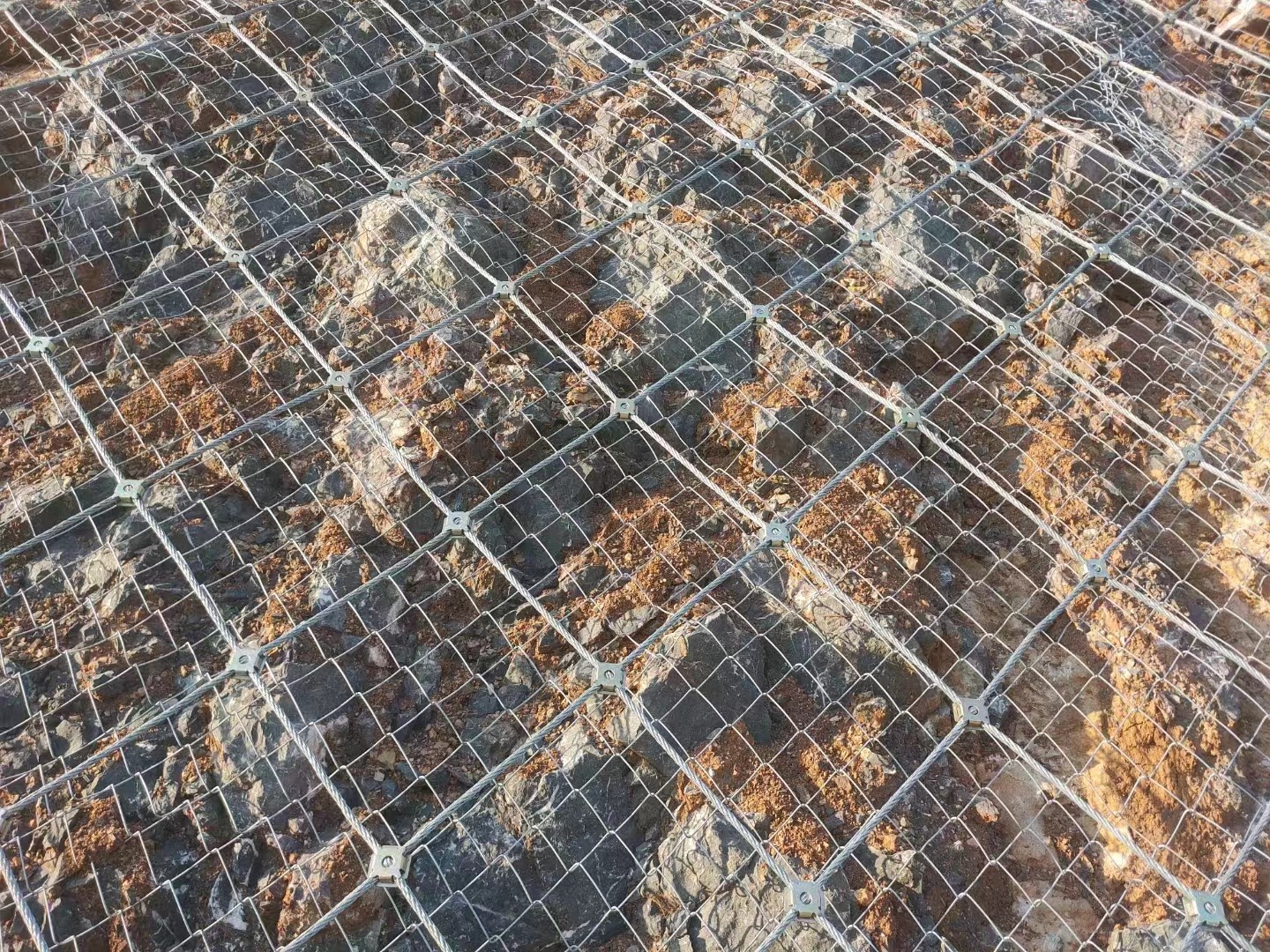

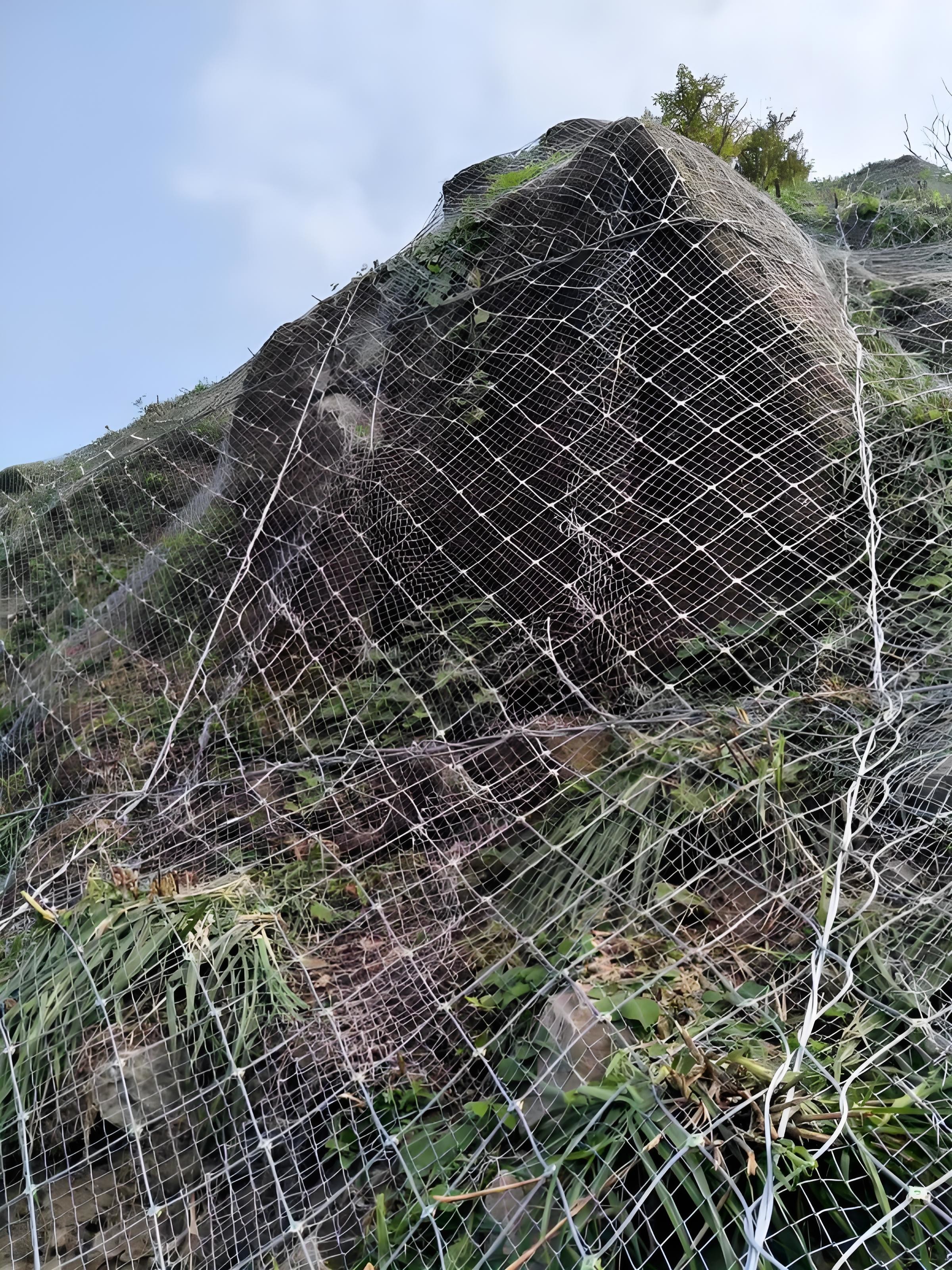

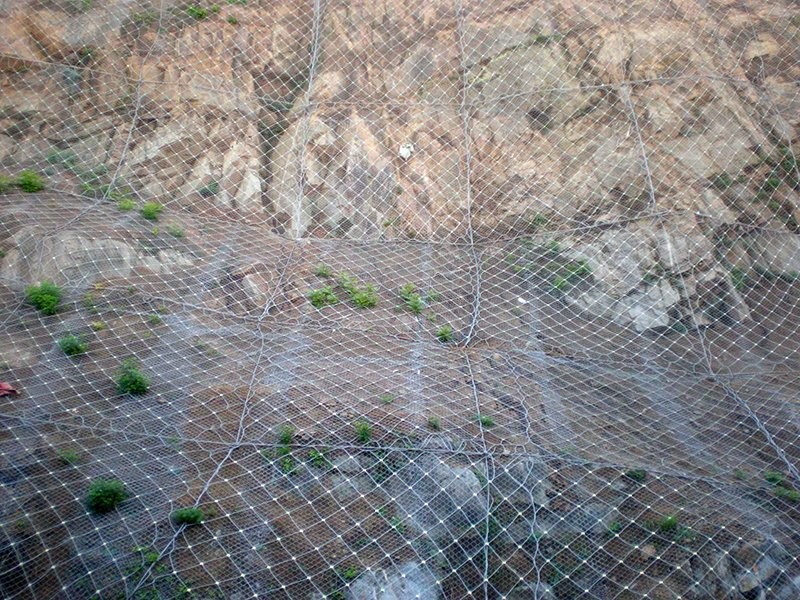

Slope Protection Net is also called SNS slope protection system, which is made of low-carbon steel wire. It is a protective device used for highway and railway landslides. According to the characteristics, we divide slope protection into active protection net and passive protection.
The slope protection net system uses hot-dip galvanized steel wire rope as the raw material, and is machined through the preparation of the slope protection net. The direct connection points between the steel wire rope and the steel wire rope are fixed with buckles. The main components of the active slope protection net are hot-dip galvanized steel wire mesh, high-strength steel wire grid, steel wire anchor, upper and lower support ropes, special anchor pads and edge support ropes.
Specification:
1.Material: AISI304/316/304L/316L,etc.
2.Ferrule material: Tinnes copper, Nickel plated copper, stainless steel, etc.
3.Cable dia: 1.20-5.0mm
4.Cable construction: 7*7(1.2--2.5mm), 7*19(3.0--4.0mm).
5.Opening Width(OW): 20--200mm, Opening Hight(OH): 35--346mm
| Name | SNS slope protection system |
| Material | Hot dipped Galvanized Wire/Galfan Wire/PVC coated Wire |
| Wire Diameter | 2.7 mm, 3.0 mm, etc. |
| Mesh Size | 60 mm × 80 mm, 80 mm × 100 mm, etc. |
| Zinc Coating Weight | ≥ 260 g/m2 |
| Netting Steel Rope Diameter | Ø7.0mm, Ø7.2mm, Ø7.5mm, Ø7.8mm, Ø8.0mm, etc. |
| Rope Specification | 7strands x 19columns |
| Zinc Galvanized | Over 200g/m2 |
| Tensile | >1770KPA |
| Roll Width | 0.8m/1.0m/1.2m/1.5 m/1.8m/2.0m/2.2m/2.5m/2.8m/3.0m |
| Roll Length | 25-30m or customized |
| Support Rope | Horizontal and vertical rope diameter are 16mm |
| Horizontal rope diameter is 16mm, vertical rope diameter is 12mm. |
High tensile steel wire mesh Features
1. High-tensile
2. Excellent substitute of conventional shotcrete protection.
3. Environmental and green
4. Simple installation
5. Easy repair
Quality Control
Applications of slope protection net
1. Landslide protection, such as slope erupting, wind corrosive.
2.Control and lead the river and flood.
3.Preventing the water and soil lost, protecting the bridge.
T
Advantages of Slope Protective Netting
1. It has the characteristics of high flexibility, high protective strength and easy spreading
2. Adapt to various complex terrains
3. Modular installation, more flexible and convenient
4. Short construction period and low construction cost
5. Slope protection net has the functions of soil stabilization and slope protection, making the rock more stable
6. The special anti-corrosion treatment process of the slope protection net makes its service life up to 50-80 years

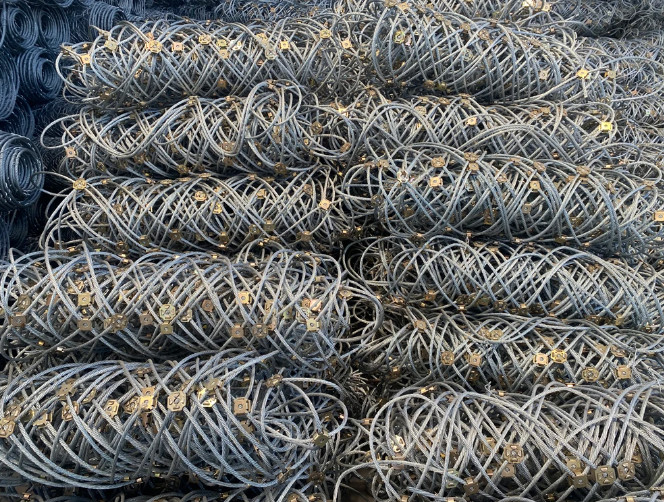

Packing
Our Services
1.Design Assist
2.Assessed Cost
3.Suitable Mesh System and Sample Support
4. Solutions
5.Deepen Drawings
6.Superior Products and Accessories
7. Install and Maintain
