Portable Steel Cattle Yard Panels For Prefab Houses And Cow Sheep Horse
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cattle Fence Panel | Place Of Origin | Hebei, China |
|---|---|---|---|
| Usage | Cattle Fence | Material | Steel Tube |
| Surface Treatment | Galvanized | Packing | Metal Pallet |
| Loading Port | Tianjin Port | M.O.Q. | 50pcs |
| Supply Ability | 100 Sets Per Day | Size | 1.8*2.1m |
| Round Tube | 32*1.6mm | Oval Tube | 30*60*1.6mm |
| Highlight | Steel Horse Yard Panels,Portable Steel Cattle Yard Panels |
||
Product Description

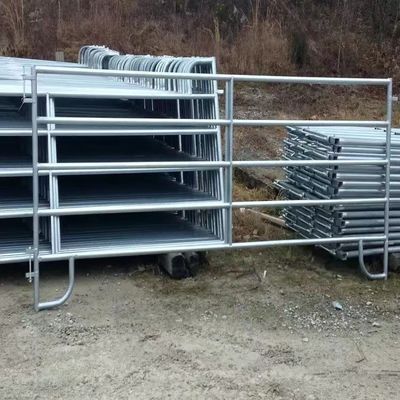

Cattle Fencing Panels For Prefab Houses And Cow Sheep Horse Cattle Yard Panels
Description of Cattle Fence:

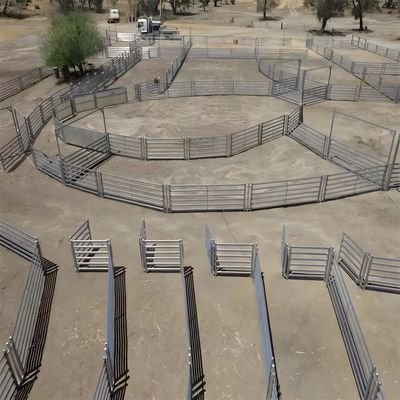

Cattle corral yard, which was include several parts, the cattle panel, cattle panel gate, cattle crush, race bow, man gate, cattle sliding gate, G force gate, etc. Jiahui cattle yard panel has been specialized in producing cattle panels products for more than 15 years.Livestock equipment is various.Hope you can find the right thing here.
Specifications of Cattle Fence
1. Surface treatment:Hot dipped/Electro galvanized,Electrostatic spraying
2. Material:three types:round pipe,square pipe oval pipe
3. Advantage:good oxidation resistance,strong,durable and flexible construction Corral fence
4. Process:
1) galvanizing before welding or made of galvanized steel tube and then welded
2) welding before galvanizing (only feasible for guardrail with relatively small size)
1 round style
| material | hot dipped galvanized steel pipe |
| finishing(zinc coating) | More than 15 microns |
| Height x Length | 1800mm x 2100mm |
| vertical pipe | 32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| horizontal rails | 32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thickness (6 round rails) |
| Welding | Fully welded post brackets |
| welds | Bull bars are fully welded, each weld is protected with epoxy paint |
2 square tube style
| Material | hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height × Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
|
Horizontal rails |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |
3 oval tube style
| Material | hot dipped galvanized steel pipe |
| Finishing(zinc coating) | more than 15 microns |
| Height × Length | 1800mm x 2100mm |
| Vertical pipe | 50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
|
Horizontal rails |
30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| Welds | bull bars are fully welded, each weld is protected with epoxy paint |
The Square tubes Corral cattle fencing panels details
Vertical square pipe+ Horizonal oval pipe or All Square tubes or all oval pipe

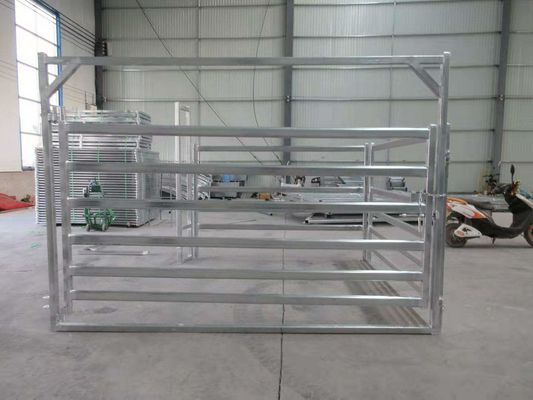

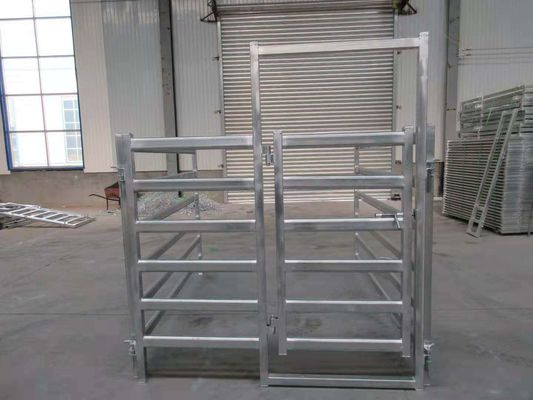

The Corral cattle fencing panels gate
Frame OD:(Horizontal & Vertical pipe) 50 mm x 50 mm RHS x 1.6 mm with fully welded caps
Gate Horizontal Rail:40 mm x 80 mm x 1.6mm thick x 6 oval rails
Or 40mmx40mm RHS x 1.6 mm square rails
Height : 2.2 m
Length:2.0m
Or according to your requirement
Applications
1. Portable: easy fast to handle,makes the cattle panel fence very flexible.
2. Robust: interlocking system makes the fence very stable quality steel and fully welding makes the panel more stronger, heavy duty and anti-broken. high zinc or color coated make the fence durable.
3. Environment protecting: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundation. And it benefits grassland protection.
4. Livestock protection: no sharp edge, very smooth welding spot finished.
5. Cost-effective: give your corral years of service and minimal maintenance at a low initial cost.
Portable cattle yard panel Feature
1.Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
2.Robust: interlocking system makes the fence very stable; quality steel andfully welding makes the panel more stronger; heavy duty and anti-broken; high zinc or PVC coated make the fence durable.
3.Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations.And it benefit grassland protection.
4.Livestock Protection: no sharp edge, very smooth welding spot finishment.
Our Services
1.20 hours online service
2.Product experts free to provide you with product customization services
3.Free design and drawings for you.
4.Product installation guide
5.Solve product shipping problems
FAQ
Q: Are you a manufacture?
A: Yes, we have been in providing the products in this field for 20 years.
Q: Is customized available?
A: Yes, according to your detailed drawings you provide.
Q: Can I get a pcs of your product samples?
A: Yes, free samples will be provided anytime.
Q: What's the payment terms?
A: Usually 30%as deposit, 70%should be pay off before leaving the factory.
Q: What is your usual delivery date?
A: For stocks products, we will load and transport the product to port during 7 working days after receive the advanced payment. For customized products, we need 20- 30 days for the delivery after receive the advanced payment.
Company Information
Anping Laidi Wire Mesh Product Co.,ltd located in Anping County, the Native Land of Wire Mesh in China,mainly produce all kinds of wire mesh fence and wire mesh , wire and so on produts. we do export more than 10years.
Our products are well sold in China and around the world, exported to Canada,America,
Dubai,India,Australia,Kenya,Tanzania and other countries.
