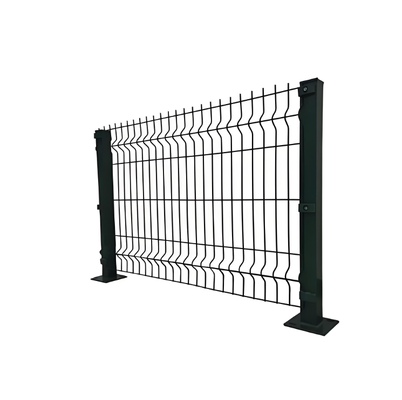

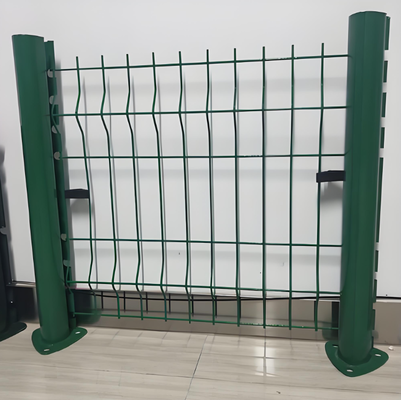

Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System

  • Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System
  • Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System
  • Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System
  • Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System
Place of Origin Hebei, China
Brand Name LAIDI
Certification ISO 9001:2015
Model Number VMF-6FT-PVC-GN
Minimum Order Quantity 50 Pieces
Price USD 12-25 / Piece
Packaging Details Steel pallet with foam separation sheets, waterproof plastic film, export-grade steel strapping
Delivery Time 7-15 working days
Payment Terms T/T,L/C,Western Union
Supply Ability 20000 Pieces per Month
Product Details
Product Name V Mesh Security Fence Material Galvanized Steel Wire + PVC Coating
Surface Treatment Hot Dipped Galvanized + PVC Coated Mesh Size 50x200mm
Wire Diameter 4.0mm Core + 0.6mm PVC Panel Height 1.83m (6FT)
Panel Width 2.5m Bend Profile 3D V-Bend Curved
Color RAL6005 Green Post Type 60x40mm Rectangular Steel Post
Application Perimeter Security, Industrial Sites, Commercial Fencing
Highlight

Galvanized PVC coated V mesh fence

,

3D curved security fence panel

,

Anti climb V mesh fence
Leave a Message
Product Description

Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence

RAL6005 Green | 50x200mm Hole | Anti-Climb Perimeter System

6FT High 3D Curved Panel Design

Standing at 1.83m (6FT) height, this V mesh security panel features a distinctive 3D V-bend curved profile that dramatically increases panel rigidity without adding weight. The three-dimensional bending creates structural reinforcement ridges across the entire panel surface, eliminating the need for additional horizontal bracing while maintaining a clean, modern appearance suitable for high-security perimeters.

Dual-Layer Galvanized + PVC Protection

Features a dual-layer corrosion protection system with hot dipped galvanized steel wire core and premium 0.6mm PVC coating. The galvanized layer provides base-level rust protection, while the UV-stabilized PVC coating in RAL6005 green adds weather resistance, aesthetic appeal, and additional cut-through protection. This combination ensures 15+ years of service life in outdoor environments.

50x200mm Anti-Climb Mesh

The 50x200mm rectangular mesh pattern is specifically engineered for security applications. The narrow 50mm vertical spacing prevents toe and finger holds, making the fence virtually impossible to climb. The 200mm horizontal spacing maintains good visibility while the 4.0mm core wire diameter with PVC coating provides excellent cut resistance against bolt cutters and other common breaching tools.

RAL6005 Green Aesthetic Finish

Finished in RAL6005 moss green, this panel blends naturally with landscaped environments while maintaining a professional security aesthetic. The UV-stabilized PVC coating resists fading and chalking even under intense sunlight exposure. The consistent color finish is achieved through precise temperature-controlled extrusion coating, ensuring uniform appearance across all panels in your installation.

Technical Specifications

Material: Galvanized Steel Wire + PVC Coating
Surface Treatment: Hot Dipped Galvanized + PVC Coated
Mesh Size: 50x200mm
Wire Diameter: 4.0mm Core + 0.6mm PVC
Panel Height: 1.83m (6FT)
Panel Width: 2.5m
Bend Profile: 3D V-Bend Curved


Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System

Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System

Export-Ready Packaging

ISO 9001:2015 Certified | Steel Pallet with Foam Separators | Waterproof Wrapping | Export-Grade Strapping


Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System

Galvanized PVC Coated 6FT High 3D Curved V Mesh Security Fence Panel RAL6005 Green 50x200mm Hole Anti Climb System

Hebei, China

Manufacturing Base

20,000 Pcs / Month

Supply Capacity

7-15 Working Days

Delivery Time

Contact LAIDI for competitive pricing on V mesh security fencing. Custom heights, colors, and mesh specifications available for bulk orders.
