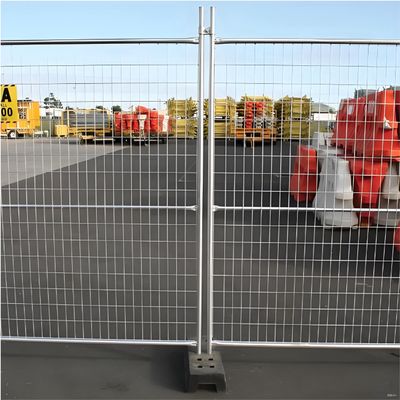

AS 4687 Compliant Wind Rated Class C Temporary Fence Panel with Water Fill Ballast for Construction Sites
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | LaiDi |
| Certification | ISO 9001, AS 4687 Compliant |
| Model Number | LD-TF-AU01 |
| Minimum Order Quantity | 50 Sets |
| Price | USD 18-35 / Set |
| Packaging Details | 30 Panels per Steel Pallet with Protective Plastic Wrap and Metal Strapping |
| Delivery Time | 15-20 Working Days |
| Payment Terms | T/T,L/C |
| Supply Ability | 500 Sets per Day |
Product Details
| Panel Width | 2.4m | Frame Tube | 32mm Round Galvanized |
|---|---|---|---|
| Wire Diameter | 4.0mm | Panel Height | 2.1m |
| Mesh Opening | 50mm X 100mm | Wind Rating | Class C (AS 4687) |
| Panel Weight | 18.5 Kg | Ballast Weight | 8.0 Kg (empty), 28.0 Kg (water Filled) |
| Stackable Capacity | 15 Panels Per Stack | Surface Treatment | Hot Dip Galvanized |
| Highlight | Australia AS 4687 Temporary Fence,Water Fill Ballast Base System,Wind Rated Stackable Construction Fencing |
||
Product Description
Australia AS 4687 Wind Rated Galvanized Temporary Fence Panel with Water Fill Ballast Stackable Construction
Product Overview
Designed to meet Australia AS 4687 temporary fencing standards, this wind rated galvanized temporary fence panel delivers reliable perimeter security for construction sites, civil works, and public events. The hot dip galvanized steel frame with HDPE water fill ballast base ensures rapid deployment without ground anchoring while maintaining stability in high wind conditions.
Each panel features a stackable design allowing up to 15 panels per stack, significantly reducing depot storage footprint and transport costs. Ideal for rental fleet operators and contractors requiring fast turnaround between project sites.
Key Features
- AS 4687 Compliant: Fully tested and certified to meet Australian temporary fencing standards for construction site perimeter security
- Wind Rated Class C: Engineered with reinforced 32mm round galvanized frame tube to withstand high wind loads without toppling
- Water Fill Ballast: HDPE interlocking ballast blocks fill with water on-site, eliminating heavy concrete transport and providing superior stability
- Stackable Design: Up to 15 panels stack vertically, maximizing depot storage density and reducing return transport loops
- Hot Dip Galvanized: 4.0mm wire diameter with heavy zinc coating for long-term corrosion resistance in outdoor Australian conditions
- Rapid Deploy: Tool-free coupler system allows two workers to install 100m of perimeter in under 30 minutes
- 50mm x 100mm Mesh: Optimal mesh opening provides high visibility site monitoring while preventing unauthorized entry
Technical Specifications
| Parameter | Value |
|---|---|
| Panel Height | 2.1m |
| Panel Width | 2.4m |
| Wire Diameter | 4.0mm |
| Mesh Opening | 50mm x 100mm |
| Frame Tube | 32mm Round Galvanized |
| Surface Treatment | Hot Dip Galvanized |
| Base Type | HDPE Water Fill Ballast |
| Wind Rating | Class C (AS 4687) |
| Compliance | AS 4687 Temporary Fencing |
| Stackable | Yes, 15 Panels per Stack |
| Panel Weight | 18.5 kg |
| Ballast Weight | 8.0 kg (empty), 28.0 kg (water filled) |
Applications
Engineered for Australian construction sites, civil infrastructure projects, mining operations, public events requiring wind rated temporary perimeter fencing. Suitable for rental fleet operators serving the Australian construction and events market.
Order & Supply Information
Minimum Order: 50 Sets
Delivery Time: 15-20 Working Days
Supply Capacity: 500 Sets per Day
Packing and Shipping
30 panels per steel pallet, wrapped in protective plastic and secured with metal strapping. Ballast blocks packed separately on wooden pallets. Export container loading available at Tianjin Port with full documentation including AS 4687 compliance certificates.
Quality Assurance
Each batch undergoes zinc coating thickness testing, weld strength inspection, and dimensional accuracy verification. AS 4687 wind load certification provided with shipment documentation. ISO 9001 certified manufacturing process ensures consistent quality across production runs.
