6FT High Easily Assembled PVC Coated 3D V Mesh Security Garden Fence
Product Details
| Product Name | 3D V Mesh Bending Fence | Material | Low Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Usage | Garden Fence |
| Service | Video Of Installation | Frame Finishing | PVC Coated |
| Color | Customized | Wire Diameter | 5.0mm. |
| Mesh Size | 50*50mm,60*60mm,70*70mm | Panel Size | 1.8m,1.5m |
| Opening | 50*100mm | Post Shape | Peach Post. Square Post |
Product Description

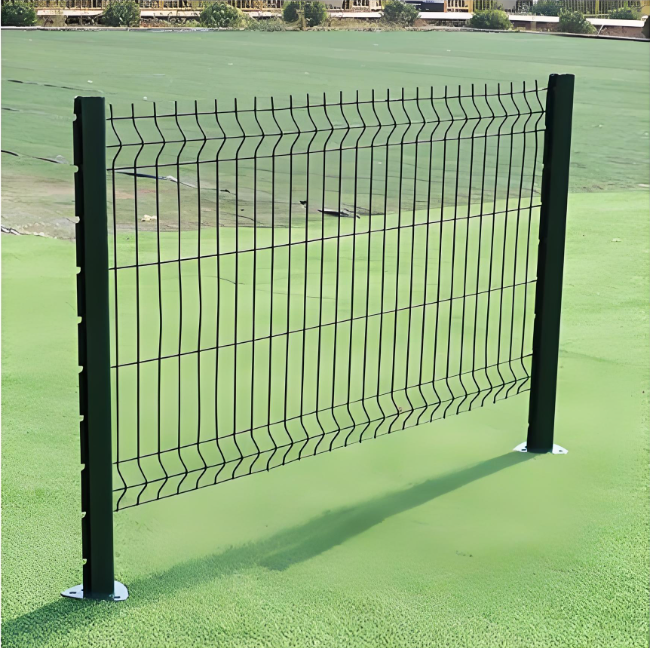

6FT High Easily Assembled V Bending 3D Security Garden Fence
Product Overview
3D bent metal guardrails are innovative safety barriers designed to provide superior protection and aesthetic appeal. These guardrails are crafted using advanced metal bending technology, which allows for intricate three-dimensional designs that are both functional and visually striking. Ideal for a variety of settings, from industrial facilities to residential properties, 3D bent metal guardrails offer a perfect blend of durability, strength, and style.
Specifications
- Material: High quality low carbon steel wire (Q235, Q195, S235J2)
- Process: Material → Straighten and cutting → Welded → Making folds → Parkerising → Galvanized/Hot-dipped → PVC coated → Packing
- Colors: Green (RAL6005), White (RAL9010), Grey (RAL7004), Yellow (RAL1021), Black (RAL9005), Blue (RAL5005), and custom colors available
| Specification | Details |
|---|---|
| Wire Diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| Height x Width | Height: 0.63-2.4m, Width: 2m, 2.5m, 3.0m |
| Mesh Opening | 50x100mm, 50x150mm, 50x200mm, 75x150mm, etc. |
| PVC Coated Thickness | 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire |
| Peach Post | 50x70x1.2mm, 70x100x1.2mm, post height matches panel height |
| Surface Treatment | Wire mesh panel: galvanized + PVC coated, galvanized + powder spraying. Post: galvanized + powder spraying |
Product Features
- Direct connection with mesh without any buckle for anti-theft and anti-disassembly
- Beautiful appearance and durable construction
- Simple structure with fast and convenient installation
Applications
- Can be installed on flat areas or slopes, various land types including general land surface or sand
- Major public events, sports, concerts, festivals, gatherings
- Security for stadiums and schools
- Security for construction sites and residential areas
- Isolation fences or safety fences for roads, airports, railways
- Widely used in airports, schools, factories, residential areas, gardens, warehouses, stadiums and entertainment places

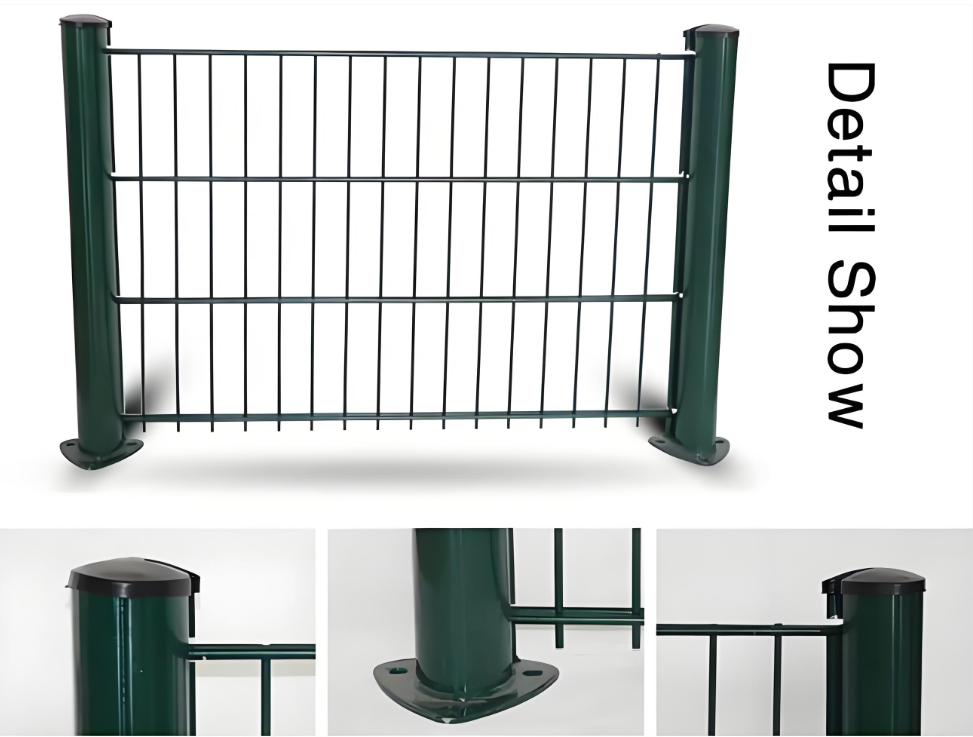

Fence Post Options
| Post Type | Dimensions | Thickness |
|---|---|---|
| Profile Post | 48mm / 60mm | 1.0/1.1/1.2mm |
| Square Post | 40x40, 60x60mm | 1.5/2.0/2.5mm |
| Peach Post | 50x70, 70x100mm | 1.0/1.1/1.2mm |
| Rectangle Post | 40x60, 60x80mm | 1.5/2.0/2.5mm |
| I Post | 70x44, 100x66mm | 1.5/2.0/2.5mm |
Fence Panel Specifications
| Parameter | Specifications |
|---|---|
| Width | 2.50m, 2.75m, 3.0m |
| Height | 830, 1030, 1230, 1430, 1630, 1830, 2030, 2230, 2430mm |
| Mesh Size | 55x100mm, 50x150mm, 50x200mm, 55x200mm, 75x150mm, 60x200mm |
| Wire Thickness | 4.0mm, 4.5mm, 5.0mm |
| Curves | 2, 3, 3, 4, 4, 4, 6 |
| Finish | Hot dip galvanized, galvanized and epoxy coated, galvanized and PVC coated |
| Number of Brackets | 2, 3, 3, 4, 4, 4, 6 |
Key Advantages
- Enhanced Safety: Robust construction and precise bending ensure maximum protection
- Aesthetic Appeal: Modern 3D design adds sophisticated look to any environment
- Durability: High-quality materials with corrosion-resistant treatment
- Customizability: Available in various sizes, colors, and finishes
- Low Maintenance: Minimal upkeep required due to durable construction
- Versatility: Suitable for industrial to residential settings

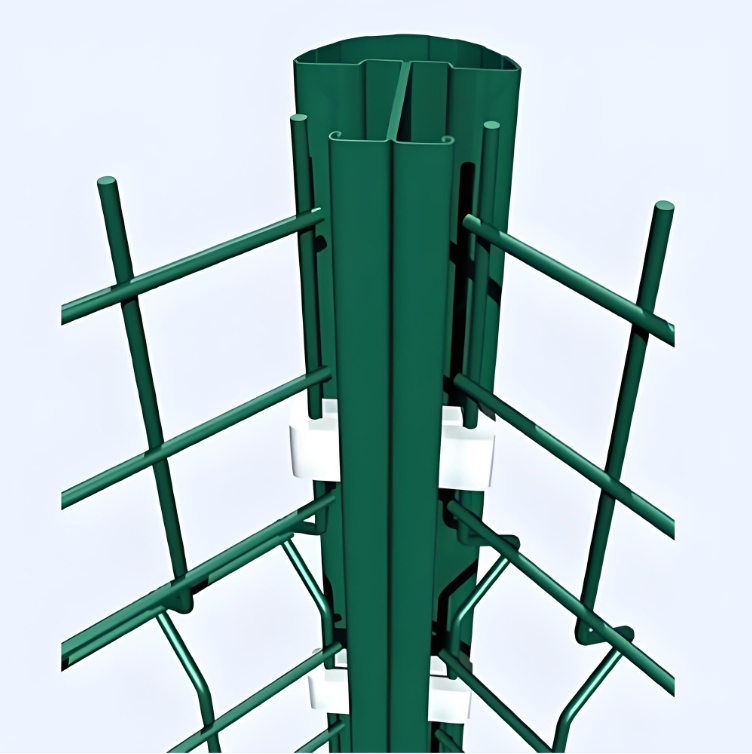

Connection Type
Product Accessories
After-Sales Service
- Freight cost optimization assistance for FOB or CIF shipments
- Third-party inspection support with production photos
- Shipment and customs clearance assistance
- Comprehensive installation, maintenance and repair instructions
Frequently Asked Questions
Can you provide a free sample?
Yes. Welcome to chat with our sales for more details. We always provide samples with charge.
What is your delivery time?
Approximately 15 to 25 days after receiving your 30% deposit.
Are you a real factory?
Yes. We have manufactured and exported wire mesh since 2013.
What are the payment terms?
Available by T/T or by Irrevocable L/C at sight.
How can I get a quotation?
Please contact us through our provided contact methods.
Packing & Delivery
- Fence Panel: Plastic film / wooden case + metal/wooden pallet
- Fence Post: Plastic bag + metal/wooden pallet (with rainhat installed)
- Fence Accessories: Plastic bag + carton box (clips & screws)
- No special attachment for piping installation, use propulsion device for easy gripping and fast installation
