Hot Dip Galvanized BTO-22 Razor Barbed Wire with High Tensile Strength for Secure Perimeter Fencing
Product Details
| Product Name | Razor Barbed Wire | Material | Low Carbon Steel |
|---|---|---|---|
| Surface Treatment | Galvanized | Wire Diameter | 2.5mm |
| Surface Treament | Hot Dipped Galvanized | Specification | BTO-22 ,CBT-65 |
| Specimen | Free Provide | Zinc Coated | 40-60g/mm2 |
| Coating | Zinc Coated / Galvanized | Rollweight | 10-15 Kg |
| Wiregauge | 12.5-14 Gauge | Feature | Anti-corrosion |
| Key Words | Concertina Coils Barbed Wire | Characteristics | High Tensile Strength Wire |
| Highlight | Hot Dip Galvanized Razor Barbed Wire,BTO-22 Concertina Coils,High Tensile Strength Security Fencing Wire |
||
Product Description

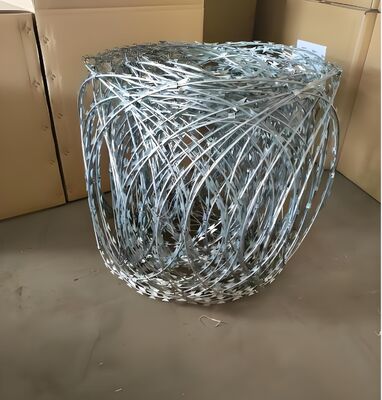

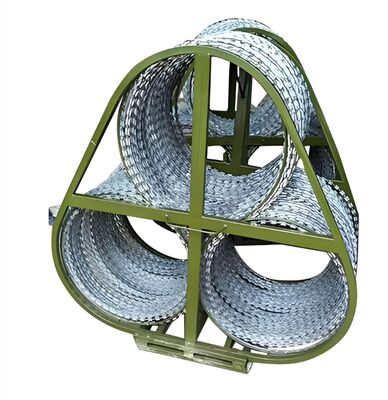

Hot Dip Galvanized BTO-22 Razor Barbed Wire
High-security razor barbed wire concertina coils designed for maximum perimeter protection in demanding applications.
Product Overview

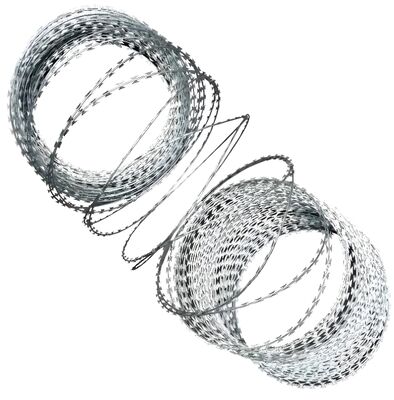

Concertina barbed wire is barrier equipment made of hot-dip galvanized steel sheet or stainless steel sheet punched into sharp blade shapes, with high-tensile galvanized steel wire or stainless steel wire as the core wire. The unique gillnet shape makes it difficult to touch, providing excellent protective isolation.
Available Models
BTO10, BTO11, BTO12, BTO22, BTO28, BTO30, CBT65, CBT60
Technical Specifications
- Normal hot dipped galvanized razor wire (40-60g)
- Heavily zinc coated razor wire (70-270g)
- Stainless steel 304/316 grades razor wire
- Clips of concertina wire: 3 clips, 5 clips or without clips
- Coil Diameter options: 300mm, 450mm, 500mm, 600mm, 700mm, 800mm, 950mm, 1000mm
Detailed Specifications
| Reference Model | Thickness (mm) | Wire Diameter (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28 | 15 | 45±1 |
| CBT-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±1 |
Key Features
- Robust Protection: Razor barbed wire design prevents climbing and ensures safety
- High-Durability Protection: Strong physical barrier for secure perimeter defense
- Flexible Installation: Easy to set up and adapt to various environments
- Psychological Deterrence: Effective in deterring unauthorized access and trespassing
- Customizable Options: Multiple sizes for different applications and needs
Security Benefits
Deterrent: Effective prevention of illegal intrusions where traditional fences fail
Durability: Long-lasting security facilities with minimal maintenance requirements
Coverage: Comprehensive protection for complex and extended boundary areas
Security: Strong deterrent force to eliminate safety hazards at the source
Construction & Performance
- Unbreakable Construction: High-quality, high-strength steel with anti-corrosion treatment provides 8-9 year lifespan
- Ultimate Deterrent: Sharp blade design creates effective psychological and physical barriers
- Economically Efficient: High cost-effectiveness significantly reduces overall perimeter security costs
Applications

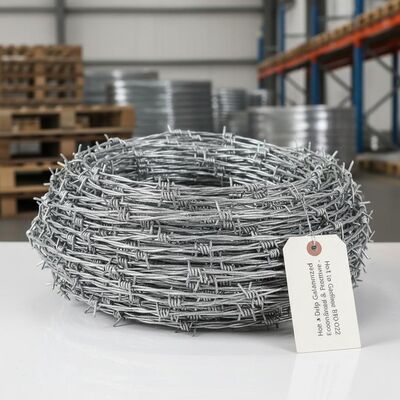

Double twist barbed wire provides high-level security fencing fabricated with high-tensile wire. The design effectively deters and stops aggressive perimeter intruders with piercing razor blades that make climbing and touching extremely difficult.
- Prisons and detention facilities
- Government buildings and national security installations
- Residential properties and private building security
- Cottage fencing and high-security perimeter applications
Packaging Options

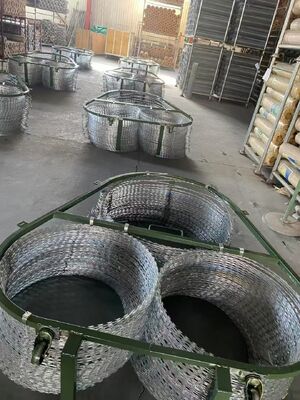

- Compression rolls: 5 rolls, 10 rolls, or more rolls as one bundle
- Water-proof paper inside with woven bag outside
- 1 roll, 3 rolls or 5 rolls in one carton
- Custom packaging available as per customer request
Manufacturer Advantages
- Direct factory with more than 30 years history
- High quality with competitive pricing
- Fast delivery capabilities
- Comprehensive certification portfolio
- Timely and effective after-sales service
Product Specializations
Gabion mesh, steel mesh, fence mesh, slope mesh, windproof mesh, hook mesh, plastic coated wire, and decorative mesh products.
Export Markets
Europe, South America, Japan, South Korea, United States, Canada, Middle East, and Southeast Asia.
