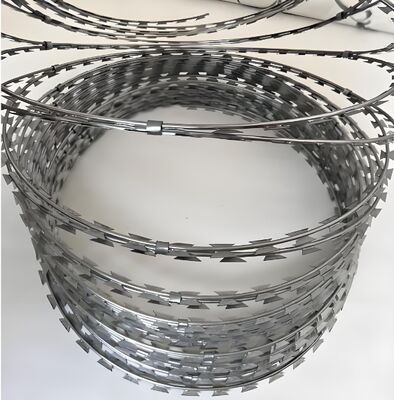

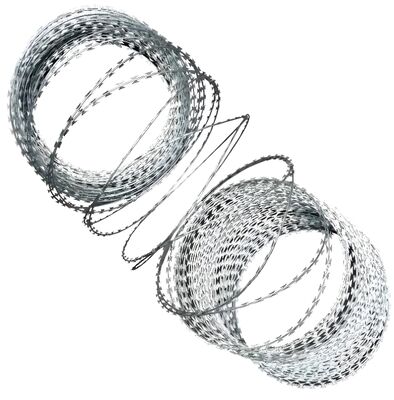

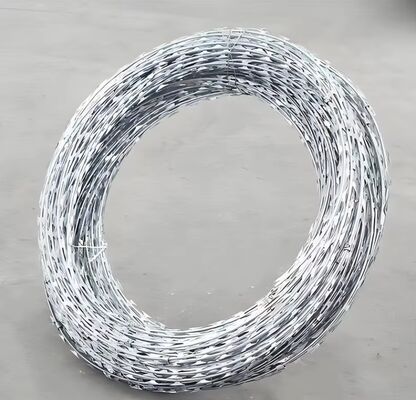

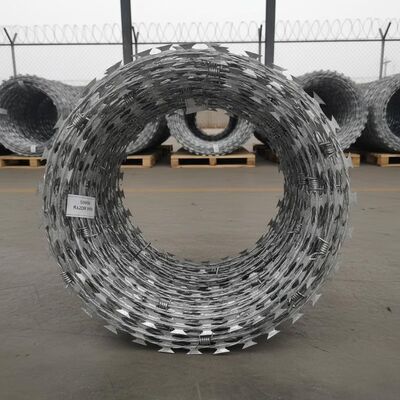

500mm Outer Diameter Hot-dipped Galvanized Razor Barbed Wire for Prison Protection and High Security Fencing
Product Details
| Product Name | Razor Barbed Wire | Material | Low Carbon Steel |
|---|---|---|---|
| Surface Treatment | Galvanized | Wire Diameter | 2.5mm |
| Surface Treament | Hot Dipped Galvanized | Specification | BTO-22 ,CBT-65 |
| Specimen | Free Provide | Zinc Coated | 40-60g/mm2 |
| Coating | Zinc Coated / Galvanized | Rollweight | 10-15 Kg |
| Wiregauge | 12.5-14 Gauge | Feature | Anti-corrosion |
| Key Words | Concertina Coils Barbed Wire | Characteristics | High Tensile Strength Wire |
| Highlight | 500mm Outer Diameter Razor Barbed Wire,Hot-dipped Galvanized Concertina Wire,Prison Protection Security Fencing Wire |
||
Product Description
500mm Outer Diameter Hot-dipped Galvanized Razor Barbed Wire For Prison Protection
High-security razor barbed wire concertina coils designed for maximum perimeter protection in demanding applications.
Product Overview
Razor Barbed Wire, also known as concertina coils or concertina wires, represents modern security fencing materials offering superior protection and fencing strength. Manufactured using hot-dipped galvanized blade or stainless steel blade with high tensile strength core wire (steel wire with 1200MPa tensile strength or stainless steel wire).
Available Models
BTO10, BTO11, BTO12, BTO22, BTO28, BTO30, CBT65, CBT60
Technical Specifications
- Normal hot dipped galvanized razor wire (40-60g)
- Heavily zinc coated razor wire (70-270g)
- Stainless steel 304/316 grades razor wire
- Clips of concertina wire: 3 clips, 5 clips or without clips
- Coil Diameter options: 300mm, 450mm, 500mm, 600mm, 700mm, 800mm, 950mm, 1000mm
Detailed Specifications
| Reference Model | Thickness (mm) | Wire Diameter (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28 | 15 | 45±1 |
| CBT-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±1 |
Key Features & Benefits
Complete Perimeter Security Solution
- Deterrent Effective prevention of illegal intrusions where traditional fences fail
- Durability Long-lasting security facilities with minimal maintenance requirements
- Coverage Comprehensive protection for complex and extended boundary areas
- Security Strong deterrent force to eliminate safety hazards at the source
- Unbreakable Construction: High-quality, high-strength steel with anti-corrosion treatment provides 8-9 year lifespan
- Ultimate Deterrent: Sharp blade design creates effective psychological and physical barriers
- Economically Efficient: High cost-effectiveness significantly reduces overall perimeter security costs
Applications
Double twist barbed wire provides high-level security fencing fabricated with high-tensile wire. The design effectively deters and stops aggressive perimeter intruders with piercing razor blades that make climbing and touching extremely difficult. Widely used in:
- Prisons and detention facilities
- Government buildings and national security installations
- Residential properties and private building security
- Cottage fencing and high-security perimeter applications
Packaging Options
- Compression rolls: 5 rolls, 10 rolls, or more rolls as one bundle
- Water-proof paper inside with woven bag outside
- 1 roll, 3 rolls or 5 rolls in one carton
- Custom packaging available as per customer request
Manufacturer Information
Anping LaiDi Wire Mesh Products Co., Ltd. is an integrated industry and trade enterprise located in Anping County, Hebei Province - China's wire mesh production base. The company operates advanced manufacturing machinery and maintains ISO9001:2000 international quality standards.
Specializations: Gabion mesh, steel mesh, fence mesh, slope mesh, windproof mesh, hook mesh, plastic coated wire, and decorative mesh products.
Export Markets: Europe, South America, Japan, South Korea, United States, Canada, Middle East, and Southeast Asia.
