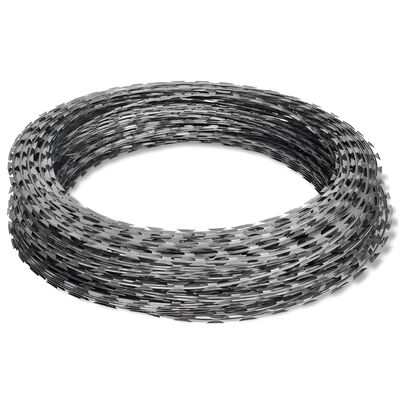

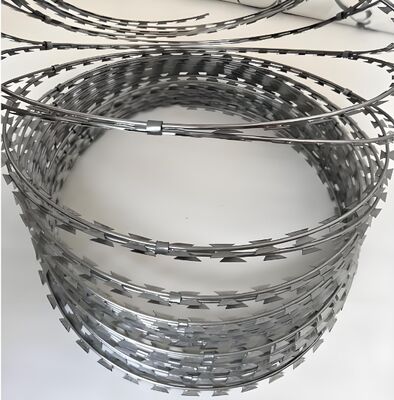

Hot-dipped Galvanized 450mm Outdiameter Razor Barbed Wire with High Tensile Strength for Security Fencing
Product Details
| Product Name | Razor Barbed Wire | Material | Low Carbon Steel |
|---|---|---|---|
| Surface Treatment | Galvanized | Wire Diameter | 2.5mm |
| Surface Treament | Hot Dipped Galvanized | Specification | BTO-22 ,CBT-65 |
| Specimen | Free Provide | Zinc Coated | 40-60g/mm2 |
| Coating | Zinc Coated / Galvanized | Rollweight | 10-15 Kg |
| Wiregauge | 12.5-14 Gauge | Feature | Anti-corrosion |
| Key Words | Concertina Coils Barbed Wire | Characteristics | High Tensile Strength Wire |
| Highlight | Hot-dipped Galvanized Razor Barbed Wire,450mm Outdiameter Concertina Razor Wire,High Tensile Strength Security Fencing Wire |
||
Product Description
Hot-dipped Galvanized 450mm Outdiameter Razor Barbed Wire Flat Wrap
High-security razor barbed wire concertina coils designed for farm and perimeter protection applications.
Product Overview

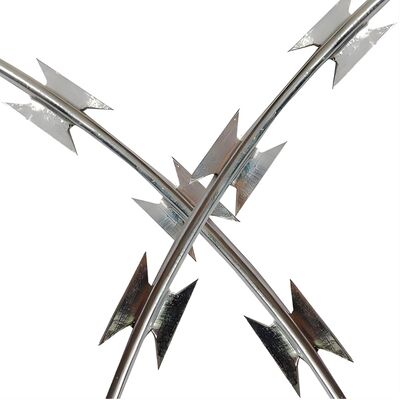

Razor Barbed Wire, also known as concertina razor wire, razor fencing wire, razor blade wire, or dannert wire, is a modern security fencing material offering superior protection and fencing strength. Manufactured from hot-dipped galvanized steel sheets or stainless steel sheets, this razor wire features sharp blades and strong core wire, providing secure fencing, easy installation, age resistance, and excellent durability.
Technical Specifications
- Normal hot dipped galvanized razor wire (40-60g zinc coating)
- Heavily zinc coated razor wire (70-270g zinc coating)
- Stainless steel 304/316 grades razor wire
- Clips options: 3 clips, 5 clips, or without clips
- Coil Diameter options: 300mm, 450mm, 500mm, 600mm, 700mm, 800mm, 950mm, 1000mm
Detailed Specifications
| Reference Model | Thickness (mm) | Wire Diameter (mm) | Barb Length (mm) | Barb Width (mm) | Barb Spacing (mm) |
|---|---|---|---|---|---|
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28 | 15 | 45±1 |
| CBT-30 | 0.5±0.05 | 2.5±0.1 | 30 | 18 | 45±1 |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±1 |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±1 |
Key Features
Is your security system currently facing these challenges?
- Illegal intrusions are difficult to prevent, and traditional fences are ineffective?
- Security facilities have short lifespans and require high maintenance costs throughout the year?
- The boundaries of the site are long and complex, making it difficult to achieve comprehensive and effective protection?
- Do we need a strong deterrent force to eliminate potential safety hazards at the source?
LaiDi Fence Blade Barbed Wire offers a complete and one-step solution for perimeter security!
- Unbreakable: Made of high-quality and high-strength steel, with anti-corrosion treatment, it has a lifespan of up to 8-9 years.
- Ultimate Deterrent: The sharp blade design creates an effective psychological and physical barrier.
- Economically Efficient: High cost-effectiveness, significantly reducing the overall cost of perimeter security.
Applications
Double twist barbed wire provides high-level security fencing fabricated with high-tensile wire. The design effectively frightens and stops aggressive perimeter intruders with piercing razor blades that make climbing and touching extremely difficult. Widely used in prisons, detention facilities, government buildings, and national security installations. Also popular for residential properties, cottage fencing, and private building security.
Packaging Options
- Compression rolls: 5 rolls, 10 rolls, or more rolls as one bundle
- Water-proof paper inside with woven bag outside
- 1 roll, 3 rolls or 5 rolls in one carton
- Custom packaging available as per customer request
Manufacturer Information
Anping LaiDi Wire Mesh Products Co., Ltd. is an integrated industry and trade enterprise located in Anping County, Hebei Province - China's wire mesh production base. The company operates advanced manufacturing machinery and maintains ISO9001:2000 international quality standards. Specializing in gabion mesh, steel mesh, fence mesh, slope mesh, windproof mesh, hook mesh, plastic coated wire, and decorative mesh products. Exports to Europe, South America, Japan, South Korea, United States, Canada, Middle East, and Southeast Asia.
