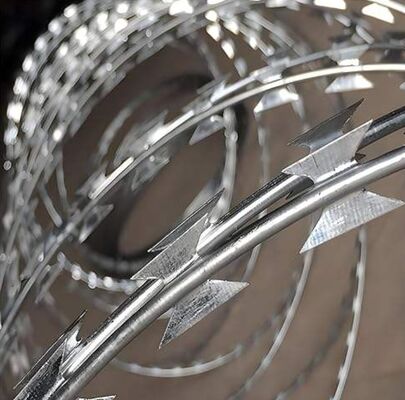

Double Strand Concertina Tape BTO-22 Razor Barbed Wire Coil Galvanized
Product Details
| Product Name | Razor Barbed Wire | Material | Low Carbon Steel |
|---|---|---|---|
| Surface Treatment | Galvanized | Wire Diameter | 2.5mm |
| Surface Treament | Hot Dipped Galvanized | Specification | BTO-22 ,CBT-65 |
| Specimen | Free Provide | Zinc Coated | 40-60g/mm2 |
| Coating | Zinc Coated / Galvanized | Rollweight | 10-15 Kg |
| Wiregauge | 12.5-14 Gauge | Razor Width | 13mm 15mm 18mm 21mm 32m |
| Coil Type | Cross Type Concertina Wire | Feature | Anti-corrosion |
| Key Words | Concertina Coils Barbed Wire | Characteristics | High Tensile Strength Wire |
| Highlight | Double Strand Concertina Tape,Razor Barbed Wire Coil Galvanized,BTO-22 barbed tape concertina |
||
Product Description
Double Strand Concertina Tape BTO-10 Razor Barbed Wire Coil Galvanized
Product Overview
The blade netting is also known as blade barbed wire or blade net. It is a new type of protective net. The blade wire rope features attractive appearance, economic and practicality, excellent anti-blocking effect, and convenient construction. It is widely used in industrial and mining enterprises, gardens, apartments, border defense outposts, military fields, prisons, detention centers, government buildings and other countries' security facilities in many countries.

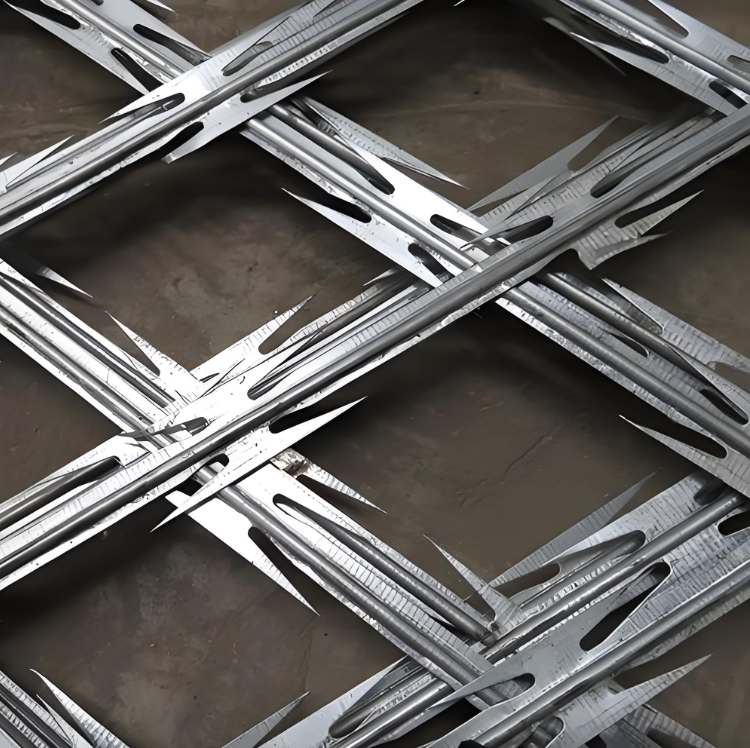

The blade net is a barrier device made by pressing sharp blade-shaped profiles out of hot-dip galvanized steel plates or stainless steel sheets, with high-tension galvanized steel wires or blade piercing ropes and stainless steel wires as the core wires. Due to its unique shape, the gill net is difficult to touch and thus can achieve excellent protective and isolation effects. The main materials of the product are galvanized sheet and stainless steel sheet.
The blade net is a barrier device made by pressing sharp blade-shaped profiles out of hot-dip galvanized steel plates or stainless steel sheets, with high-tension galvanized steel wires or blade piercing ropes and stainless steel wires as the core wires. Due to its unique shape, the gill net is difficult to touch and thus can achieve excellent protective and isolation effects. The main materials of the product are galvanized sheet and stainless steel sheet.
Technical Specifications
1: Normal hot dipped galvanized razor wire(40-60g)
2: Heavily zinc coated razor wire (70-270g)
3: Stainless steel 304/316 grades razor wire
4: Clips of concertina wire:3clips, 5clips or without clips
5: Coil Diameter of concertina wire:300mm 450mm 500mm 600mm 700mm 800mm 950mm 1000mm
Detailed Specifications
|
|
|||||
|
Reference Model |
Thickness (mm) |
Wire Diameter (mm) |
Barb Length (mm) |
Bard Width (mm) |
Bard Spacing (mm) |
|
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-15 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
0.5±0.05 |
2.5±0.1 |
02±1 |
15±1 |
34±1 |
|
BTO-28 |
0.5±0.05 |
2.5±0.1 |
28 |
15 |
45±1 |
|
CBT-30 |
0.5±0.05 |
2.5±0.1 |
30 |
18 |
45±1 |
|
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±1 |
|
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±1 |
Key Features
- Sharp edges effectively deter intruders and thieves
- High stability, rigidity, and tensile strength prevents cutting or destruction
- Resistant to acid, alkali, and harsh environmental conditions
- Excellent corrosion and rust resistance
- Compatible with other fencing systems for enhanced security
- Easy installation, removal, and maintenance
- Durable construction ensures long service life
Applications

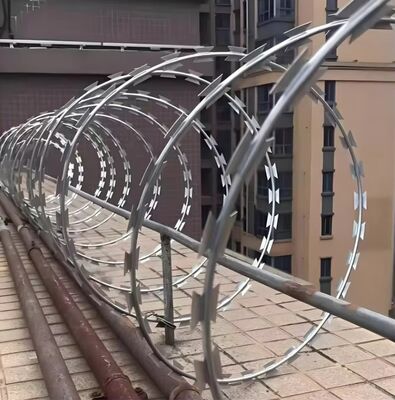

Double twist barbed wire provides high-level security fencing fabricated with high-tensile wire. The design effectively frightens and stops aggressive perimeter intruders with piercing razor blades that make climbing and touching extremely difficult. Widely used in prisons, detention facilities, government buildings, and national security installations. Also popular for residential properties, cottage fencing, and private building security.

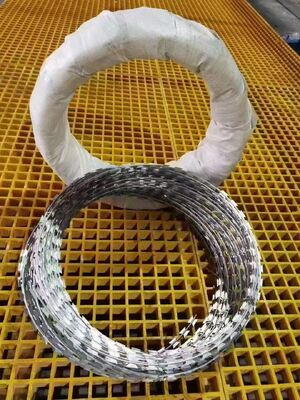

Packaging Options
1. compression rolls, 5rolls, 10rolls, or more rolls as one bundle
2. water-proof paper inside with woven bag outside
3. 1roll, 3 rolls or 5 rolls in one carton
4. as customer request
2. water-proof paper inside with woven bag outside
3. 1roll, 3 rolls or 5 rolls in one carton
4. as customer request
Manufacturer Information
Anping LaiDi Wire Mesh Products Co., Ltd. is an integrated industry and trade enterprise located in Anping County, Hebei Province - China's wire mesh production base. The company operates advanced manufacturing machinery and maintains ISO9001:2000 international quality standards. Specializing in gabion mesh, steel mesh, fence mesh, slope mesh, windproof mesh, hook mesh, plastic coated wire, and decorative mesh products. Exports to Europe, South America, Japan, South Korea, United States, Canada, Middle East, and Southeast Asia.
