Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Cross Bar |
| Certificate | ISO9001 | Application | Office Building |
| Brand Name | LaiDi | Warranty | 1 Year |
| Grate Mesh | 40x100mm | Steel Thcikness | 5.0mm |
| Highlight | galvanized steel trench grate,I-bar walkway steel grating,steel drain grate galvanized |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Plain I-Bar Walkway Galvanized Steel Grating For Trench Steel Drain Grate
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Galvanized steel grating |
| Material | Carbon steel |
| Place of Origin | Hebei, China |
| Surface Treatment | Hot dipped galvanized |
| Color | Silver |
| Type | Cross bar |
| Certificate | ISO9001 |
| Application | Office building |
| Brand Name | LaiDi |
| Warranty | 1 year |
| Grate Mesh | 40x100mm |
| Steel Thickness | 5.0mm |
Product Description
Heavy Duty Galvanized Grating 3CM Brico Depot Steel Grates For Driveways Grate
Steel grating is typically made from steel bars or flat steel that are welded or locked together to form a grid pattern. The bars are usually arranged in a parallel or perpendicular manner, creating an open grid with gaps between them. These gaps allow for the passage of air, water, and light, while still providing a sturdy surface for walking or supporting heavy loads. There are different types of steel grating available, including welded steel grating, press-locked grating, riveted grating, and swage-locked grating. Each type offers unique characteristics and advantages depending on the specific application and requirements.
Steel grating is made from carbon steel or stainless steel, which provides excellent strength, durability, and corrosion resistance. The bars can be flat or serrated to enhance traction and prevent slipping. The grating panels are often hot-dip galvanized or coated with a protective finish to further enhance its resistance to corrosion and extend its lifespan.
Technical Specifications
| Material | Low carbon, Middle carbon, stainless steel, Q235 |
| Bearing Bar Type | Flat bar, serrated bar, I bar, etc |
| Bearing Bar (Width*Thickness) | 25*3m 25*4, 25*4.5, 25*5, 30*3, 30*4, 30*4.5, 30*5, 32*5, 40*5, 50*5, 65*5, 75*6, 75*10...100*10mm etc; I bar: 25*5*3, 30*5*3, 32*5*3, 40*5*3 etc US standard: 1''*3/16'', 1/4''*3/16'', 1/2''*3/16'', 1''*1/4'', 1/4''*1/4'', 1/2''*1/4'', 1''*1/8'', 1/4''*1/8'', 1/2''*1/8'' etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross Bar Pitch | 24 to 200mm |
| Cross Bar Size | 6*6, 8*8, 10*10, 12*12mm etc. |
| Surface Treatment | Hot dipped galvanized, painted, self-color, etc. |
Key Features
- Resistant to extremely high temperature
- Corrosion resistance and alkaline resistance
- Anti-rust
- Skid resistance
- Very rigid surface can stand heavy wear and tear

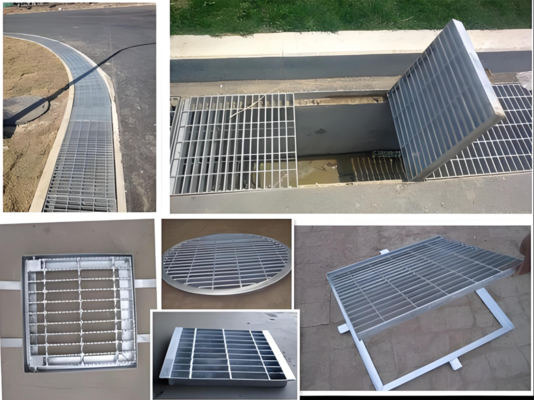

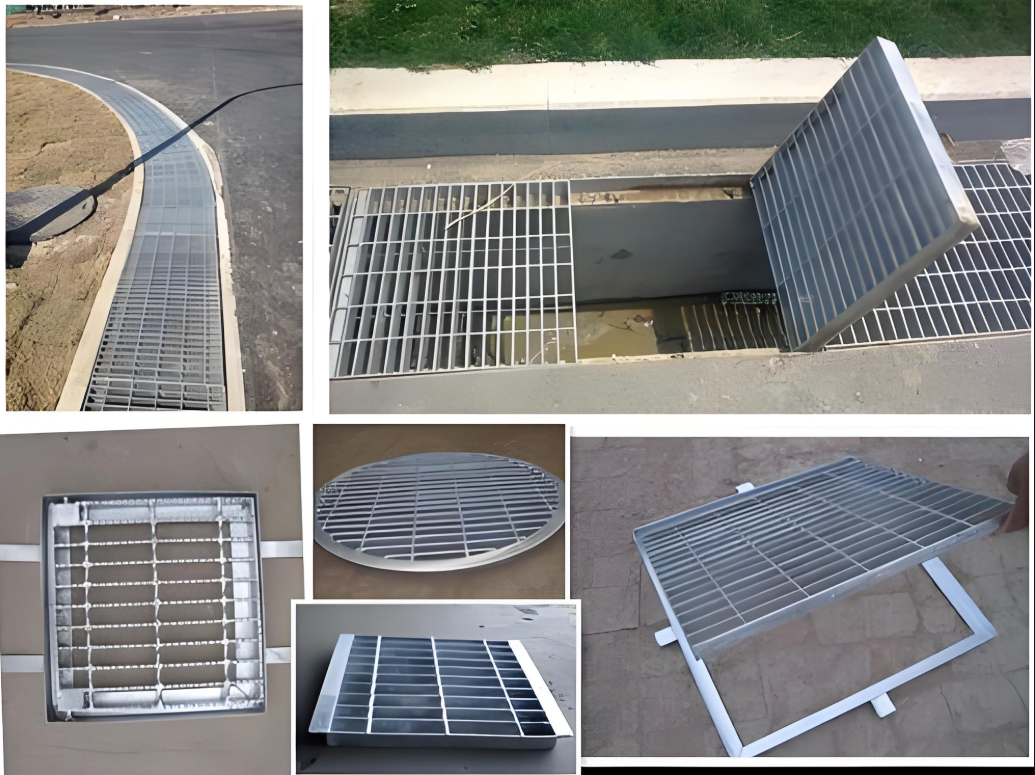

Applications
- Flooring and Platforms
- Pedestrian Walkway and Ramps
- Stair Treads
- Drain and Manhole Covers
- Trench Grates
- Bridge Decking
Packing & Delivery
Frequently Asked Questions
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
