Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Mild Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Serrated |
| Certificate | ISO9001 | Application | Industrial |
| Grate Mesh | 30x100mm | Steel Thcikness | 3mm |
| Bearing Bar Pitch | 40mm | Technique | Welding |
| Highlight | hot dipped galvanized steel grating,serrated platform steel grating,30x100mm galvanized steel grating |
||
Product Description

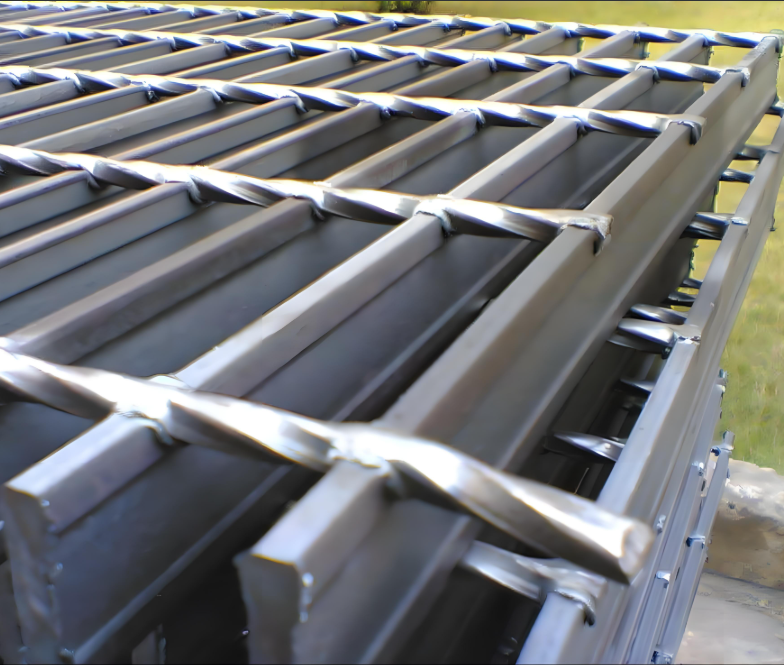

Hot Dipped Galvanized Serrated 30x100MM Platform Steel Grating

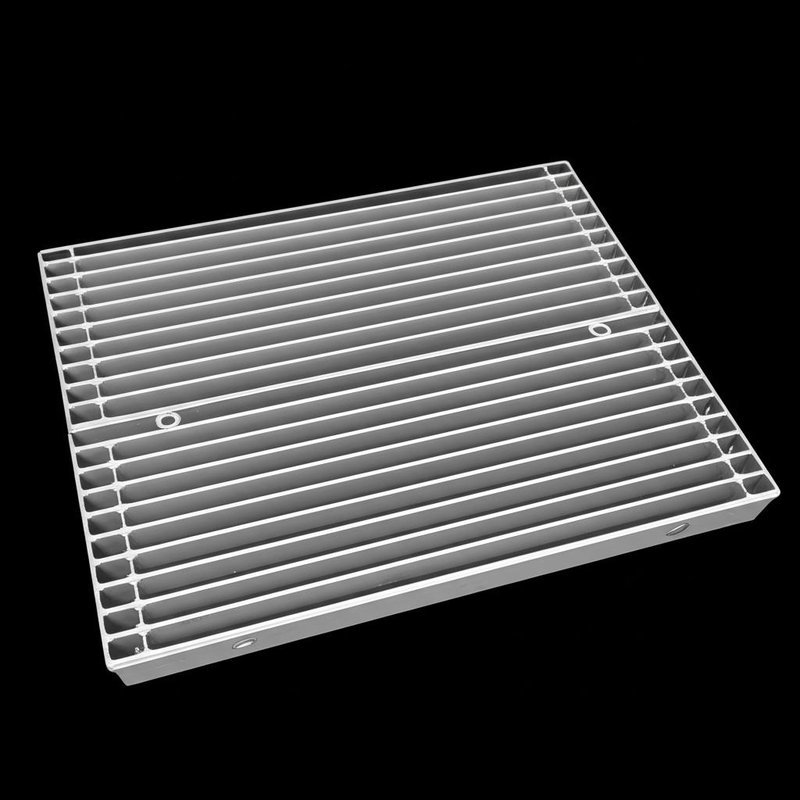

Hot Dipped Galvanized Welded Drainage Channel Steel Grating
Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of steel bar with hot dipped galvanized surface treatment.
The carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.
Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load bearing stength. And it is the most widely used in industrial, commercial and residential projects.
Galvanized Steel Grating Specification
| Item | Description |
|---|---|
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc |
| Material Grate | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Type | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
| Application |
|

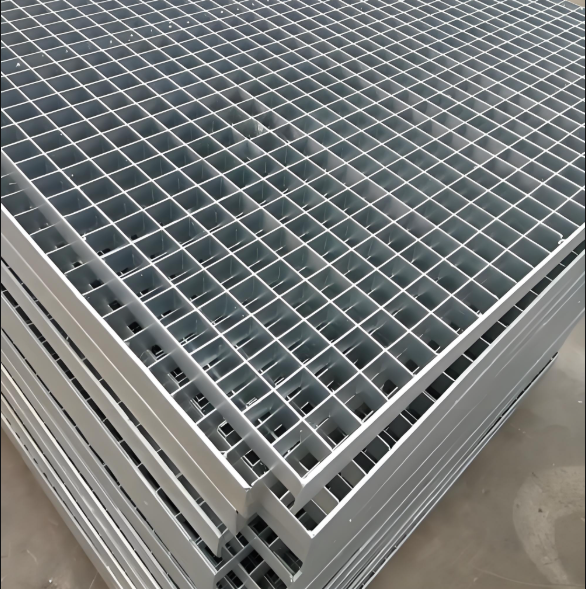

Steel Grating Type
Versatile and High Quality
Steel grating has been widely used in various industries worldwide. Primarily used as platform plates, ditch covers, stair treads, and building ceilings, our steel grating is manufactured through welding flat steel and bars at specific distances, followed by cutting, opening, and edging processes. The products feature high strength, light structure, excellent load-bearing capacity, and easy installation. The hot-dipped zinc coating provides superior anti-corrosion resistance.
Product Features
- Lightweight construction
- High strength and durability
- Excellent corrosion resistance
- Good ventilation and light transmission
- Attractive and long-lasting appearance
- Simple installation process
Production Process
Steel Grating Applications

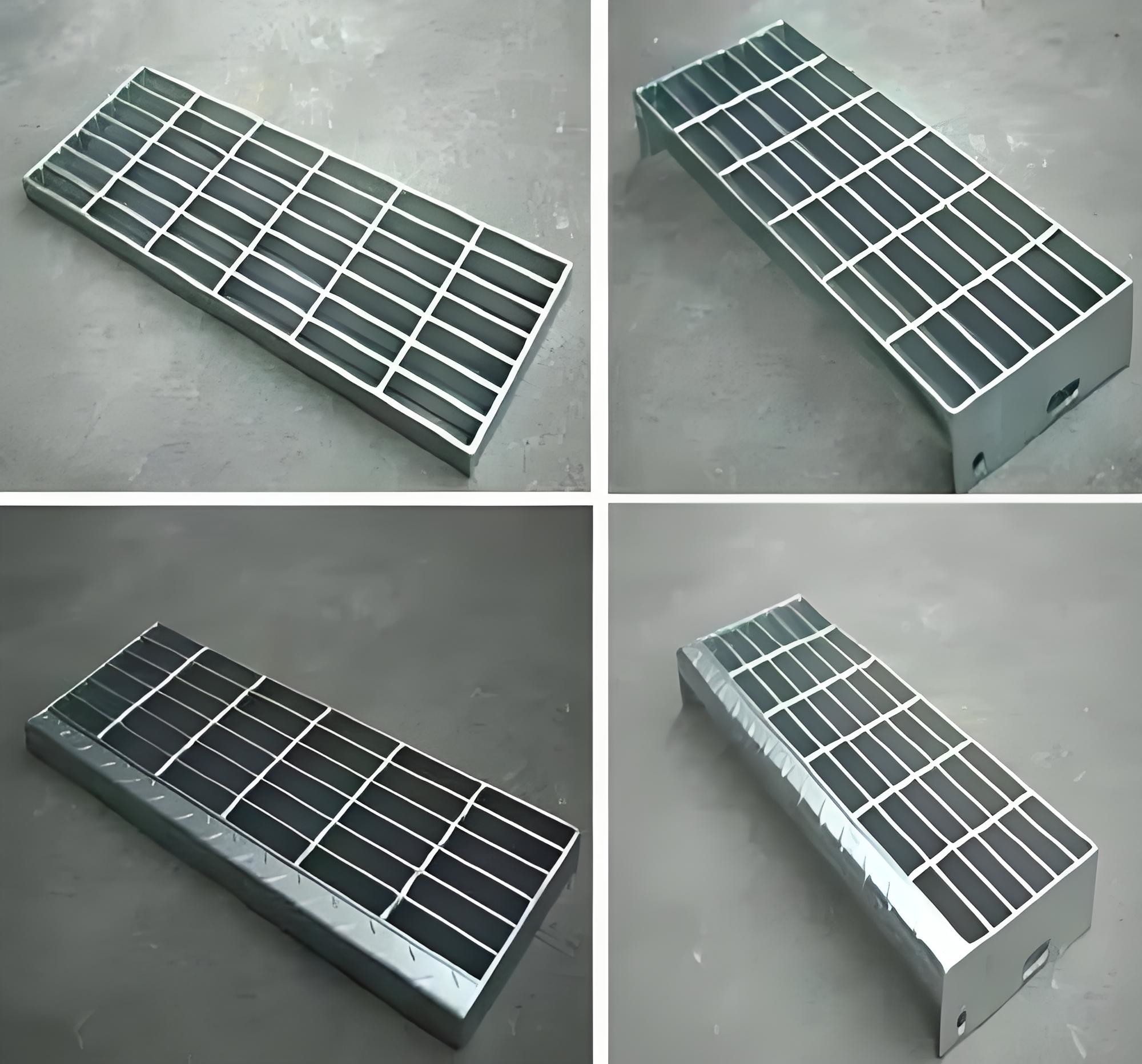

- Stair stepping boards
- Ditch covers
- Steel ladders
- Tree pool covers
- Working platforms
- Catwalk steel grating
- Steel driveway grates grating
Packing & Delivery
- Bandage and Paperboard: Generally applies to neat steel plate
- Screw Locking Method: Uses 4 screw rods through the aperture of the steel grid for high strength
- Steel Pallet: Traditional export packing
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
