1.8M Height Galvanized Fixed Knot Iron Wire Cattle Fence for Animal Security for Animal Containment Solution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cattle Fence Roll | Place Of Origin | Hebei, China |
|---|---|---|---|
| Material | Q195 | Surface Treatment | Galvanized |
| Packing | Metal Pallet | Loading Port | Tianjin Port |
| Wire Diameter | 2.0mm | Height | 1.8M |
| Length | 100m | Key Word | Cattle Fence |
| Highlight | 1.8M Height Cattle Fence,Galvanized Fixed Knot Cattle Fence |
||
Product Description

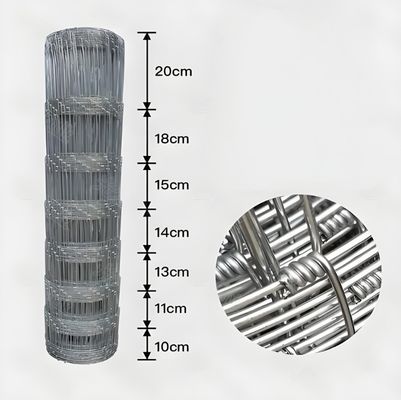

1.8M Height Galvanized Fixed Knot Iron Wire Cattle Fence for Animal Security
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Cattle Fence Roll |
| Place of Origin | Hebei, China |
| Material | Q195 |
| Surface Treatment | Galvanized |
| Packing | Metal Pallet |
| Loading Port | Tianjin Port |
| Wire Diameter | 2.0mm |
| Height | 1.8M |
| Length | 100m |
| Key Word | cattle fence |
Product Description
Our galvanized fixed knot cattle fence is constructed from high-quality carbon steel wire and galfan wire (Zn-Al), offering superior durability for animal containment. Available in both fixed knot and hinge joint configurations, this fencing solution provides excellent corrosion resistance, high strength, and easy installation.
Technical Specifications
- Materials: Low carbon galvanized wire, hot dipped galvanized high carbon wire, low carbon cold galvanized wire
- Knot types: Hinge Knot & Fixed Knot
- Surface treatment options:
- Class A: Hot dipped galvanized (220-260g/m² zinc coating)
- Class B: Hot dipped galvanized (60-70g/m² zinc coating)
- Class C: Electro galvanized (15-20g/m² zinc coating)
- Mesh wire diameter: 1.8mm-2.5mm
- Edge wire diameter: 2.0mm-3.2mm
- Height options: 0.8m-2.3m (custom sizes available)
- Length options: 50m-100m (custom lengths available)
Detailed Specifications
| NO. | Specification | Weight (kg) | Bottom (mm) | Dia. (mm) |
|---|---|---|---|---|
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 |
Key Features
- Pre-stripped rolls with 18" of vertical stays removed from both ends
- Heavy duty galvanization for superior corrosion resistance
- 20 year warranty for long-term reliability
Applications

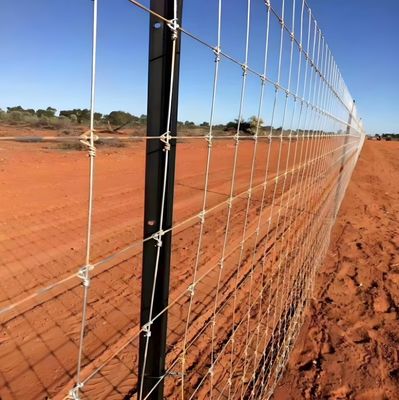

Our fixed knot fence with solid lock construction is ideal for containing cattle, deer, horses, sheep, and goats. It serves as excellent grassland fencing and farm fencing, while also being effective as game fencing to protect forest crops and garden plants from wildlife.
Product Advantages
- Cost competitive with 5-strand barbed wire but significantly stronger
- 3 times longer lifespan than traditional hinged joint fencing
- Maintains tension and shape through temperature fluctuations
- Requires 40% fewer posts than barbed wire, reducing installation time
- Prevents cattle from putting their heads through the fence
- Causes less damage to animal hides compared to barbed wire
- Minimal maintenance requirements due to superior design
Frequently Asked Questions
Are you a manufacturer?
Yes, we have been manufacturing wire mesh products for 20 years.
Is customization available?
Yes, we can produce custom specifications based on your detailed requirements.
Can I get product samples?
Yes, we provide free samples upon request.
What are your payment terms?
Standard terms are 30% deposit with 70% balance paid before shipment.
What is your delivery timeline?
Stock items ship within 7 working days after deposit. Custom orders require 20-30 days for production after deposit.
About Our Company
Anping Laidi Wire Mesh Product Co., Ltd is located in Anping County, China's wire mesh production hub. With over 10 years of export experience, we specialize in manufacturing various wire mesh fencing products that are distributed globally to markets including North America, Australia, Africa, and the Middle East.
Quality Certifications
Our company maintains ISO quality management system certification and complies with occupational health and safety standards. We implement a "zero defect" quality policy throughout all manufacturing processes to ensure product excellence.
