Highly-Durable Heavy Duty Galvanized Tensile and Corral Wire Woven Field Cattle Fence Roll for Long-Lasting Performance
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cattle Fence Roll | Place Of Origin | Hebei, China |
|---|---|---|---|
| Material | Q195 | Surface Treatment | Galvanized |
| Packing | Metal Pallet | Loading Port | Tianjin Port |
| Wire Diameter | 1.8mm | Height | 6ft |
| Length | 165ft | Key Word | Cattle Fence |
| Highlight | Galvanized Cattle Fence Roll,Roll Cattle Fence |
||
Product Description
Highly-Durable Heavy Duty Galvanized Tensile and Corral Wire Woven Field Cattle Fence Roll for Long-Lasting Performance
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Cattle Fence Roll |
| Place of Origin | Hebei, China |
| Material | Q195 |
| Surface Treatment | Galvanized |
| Packing | Metal Pallet |
| Loading Port | Tianjin Port |
| Wire Diameter | 1.8mm |
| Height | 6ft |
| Length | 165ft |
| Key Word | cattle fence |
Product Description
Heavy Duty Galvanized Tensile and Corral Wire Woven Field Cattle Fence Roll
Cattle Fence Description

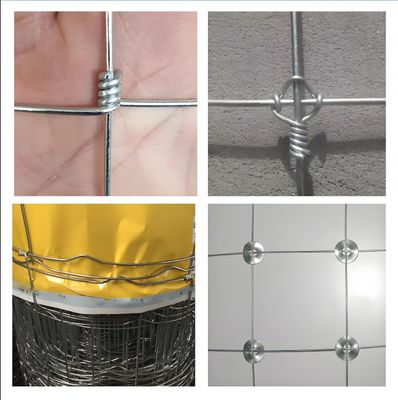

The hinge joint knots also called field fence, grassland fence, cattle wire fence. The hinge joint knot is found on both galvanized low carbon and high tensile wire products.
This is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available. Besides, they also can be used with barbed wire or chicken wire for farm fencing, garden fencing, road fencing, forest fencing and so on.
Cattle Fence Specifications
- Material: low carbon steel wire(Q195), Tensile strength:550N/MM2
- Diameter of all wires used: Top / BOTTOM wire dia: 2.5MM-3.6mm
- Line /stay wire dia area: 1.7MM-2.5mm
- Top and Bottom wire diameter:2.0-3.2mm
- Hardness Mpa of all wires: according to consumer. (700-1400Mpa)
- Uprightness wire space: 5cm-60cm
- High area: 50cm-200cm
- Length for one rolls: 25m-200m

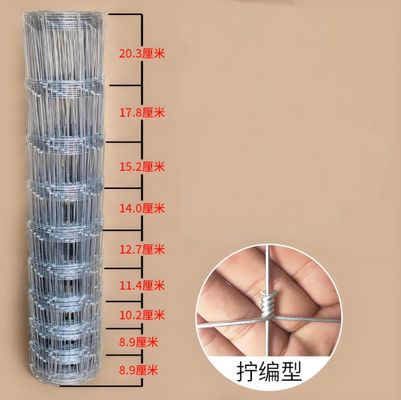

| NO. | Specification | Weight (kg) | Bottom (mm) | Dia. (mm) |
|---|---|---|---|---|
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 |
Fixed Knot Fence Features
Field fences have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments.
Cattle Fence Advantages
- Costs the same as a 5 strand barbed wire fence.
- Stronger than a 9 gauge hinged joint or barbed wire fence.
- Lasts 3 times longer than traditional hinged joint.
- Will remain tighter and won't lose its shape.
- Better able to absorb impact and maintains its tension even during severe temperature and climate changes.
- Uses up to 40% less posts when compared to barbed wire so requires less labor time and is easier to install.
- Does not sag or squash down the way traditional hinged joint farm fence does.
- Cattle are unable to put their head through the fence.
- Kinder to animals and less damage to the animal's hide.
- Superior design means that maintenance is negligible.
Applications
High Tensile Field Fences are made to withstand the hardness of the grassland climate, which are made of graduated steel wire mesh knotted by special machines popularly used in fields and grassland for breeding of deer, cattle and other animals. Our fence products enjoy innovative design, firm structure, flat surface, uniform opening, good flexibility and long service life. The steel wire used in producing field fence offers high strength against the violent clashing of horses and other animals to ensure the safety. The zinc coating layer adds corrosion and rust resistance for the fences.
