1.8M Height Galvanized Hinge Joint Metal Livestock Grassland Cattle Fence Netting for Strong and Sturdy Fencing Solution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cattle Fence | Place Of Origin | Hebei, China |
|---|---|---|---|
| Material | Q195 | Surface Treatment | Galvanized |
| Packing | Metal Pallet | Loading Port | Tianjin Port |
| Height | 6ft | Length | 100 Meters |
| Key Word | Livestock Fence | Fence Style | Woven |
| Wire Diameter | 2.0mm | M.O.Q. | 100rolls |
| Highlight | 1.8M Height Galvanized Cattle Fence,Cattle Fence Netting,Galvanized Cattle Fence Netting |
||
Product Description

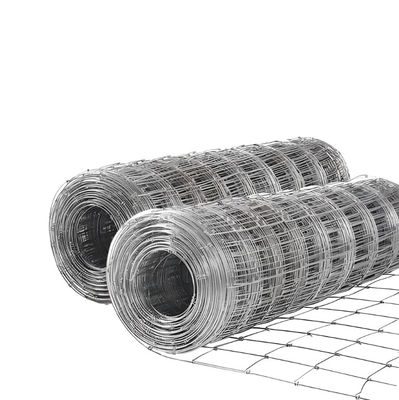

1.8M Height Galvanized Hinge Joint Metal Livestock Grassland Cattle Fence Netting
| Product Name | Cattle Fence |
|---|---|
| Place of Origin | Hebei, China |
| Material | Q195 |
| Surface Treatment | Galvanized |
| Packing | Metal Pallet |
| Loading Port | Tianjin Port |
| Height | 6ft |
| Length | 100 Meters |
| Wire Diameter | 2.0mm |
| M.O.Q. | 100rolls |
Cattle Fence Description
FIELD FENCE/FARM FENCE is a popular fencing solution for agricultural applications, also known as farm fence or grassland fence. Woven from high tensile hot dipped galvanized wire, it provides an economical fencing option for farms, orchards, fields, grasslands, and forest zones.

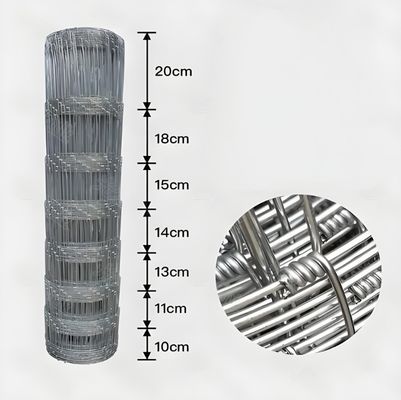

The knotted design features automatic twist plaiting of line wire and cross wire. The spacing between line wires varies, with smaller spacing at the bottom of the mesh panel gradually increasing toward the top. This design prevents small rodents and animals from passing through.
The hinge joint knot is the most popular configuration for field fences, offering superior elasticity to absorb impact while maintaining its original shape.
Cattle Fence Specifications
- Materials: Low carbon galvanized wire, hot dipped galvanized high carbon wire, low carbon cold galvanized wire
- Knot types: Hinge Knot & Fixed Knot
- Surface treatment:
- Class A: Hot dipped galvanized (zinc coated: 220-260g/m²)
- Class B: Hot dipped galvanized (zinc coated: 60-70g/m²)
- Class C: Electro galvanized (zinc coated: 15-20g/m²)
- Mesh wire diameter: 1.8mm~2.5mm
- Edge wire diameter: 2.0mm~3.2mm
- Height options: 0.8m, 1.0m, 1.2m, 1.5m, 1.7m, 2.0m, 2.3m (custom sizes available)
- Length options: 50m-100m (custom lengths available)
| NO. | Specification | Weight (kg) | Bottom (mm) | Dia. (mm) |
|---|---|---|---|---|
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 |
Product Feature Highlights
Our cattle fence features a novel structure with precise, flat mesh and uniform openings. The strong, integrated design offers exceptional toughness, non-slip properties, and compression resistance. Ideal for various applications including:
- Zoo enclosures
- Construction site fencing
- Livestock raising
- Slope greening
- Garden and park fencing
- Pasture and grassland protection

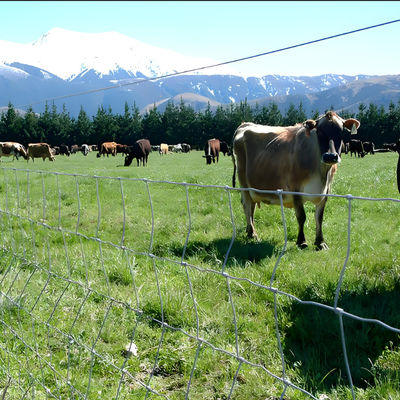

Cattle Fence Applications
- Reliable confinement for cattle, hogs, and other large animals
- Withstands demands of corralling large animal herds
- Suitable for all terrains, corrals, and pastures
- Special wire crimps accommodate weather expansion and contraction
- Galvanized wire resists weathering and wear
Cattle Fence Advantages
- Cost competitive with 5-strand barbed wire fences
- Stronger than 9 gauge hinged joint or barbed wire
- 3x longer lifespan than traditional hinged joint fencing
- Maintains tension through temperature fluctuations
- Requires 40% fewer posts than barbed wire
- Prevents cattle from putting heads through fence
- Gentler on animal hides
- Minimal maintenance requirements

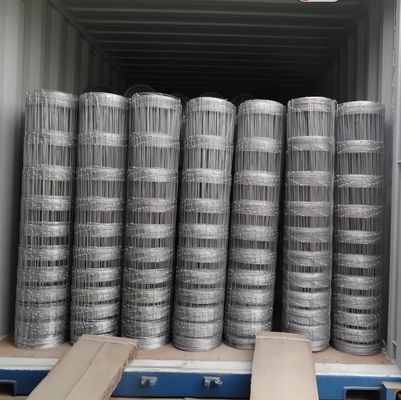

Packing & Loading
FAQ
Are you a manufacturer?
Yes, we have 20 years of experience in this field.
Is customization available?
Yes, we can produce according to your detailed drawings.
Can I get samples?
Yes, free samples are available upon request.
What are your payment terms?
Typically 30% deposit, with 70% balance paid before shipment.
What is your delivery time?
Stock items ship within 7 working days after deposit. Custom orders require 20-30 days.
Company Information
Anping Laidi Wire Mesh Product Co., Ltd is located in Anping County, China's Wire Mesh production hub. We specialize in manufacturing various wire mesh fences and related products with over 10 years of export experience.
Our products are sold worldwide, exported to Canada, America, Dubai, India, Australia, Kenya, Tanzania, and other countries.
