Galvanized Hinged Joint Cattle Fence Netting 2.0MM High Tensile Wire Cattle Fence
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cattle Fence Roll | Place Of Origin | Hebei, China |
|---|---|---|---|
| Material | Q195 | Surface Treatment | Galvanized |
| Packing | Metal Pallet | Loading Port | Tianjin Port |
| Wire Diameter | 2.5mm | Height | 4FT |
| Length | 165FT | Key Word | Cattle Fence |
| Highlight | 2.0MM Cattle Fence Netting,High Tensile Wire Cattle Fence Netting,Galvanized Cattle Fence Netting |
||
Product Description
Galvanized Hinged Joint Cattle Fence Netting 2.0MM High Tensile Wire Cattle Fence
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Cattle Fence Roll |
| Place of Origin | Hebei, China |
| Material | Q195 |
| Surface Treatment | Galvanized |
| Packing | Metal Pallet |
| Loading Port | Tianjin Port |
| Wire Diameter | 2.5mm |
| Height | 4FT |
| Length | 165FT |
Product Description
Galvanised wire mesh for livestock fences, also known as stock fencing or farm fencing, provides a cost-effective solution for large areas to control livestock (pigs, lambs, cows) and keep other animals out such as deer. Manufactured from thick galvanised wires with knot joins for mesh apertures, available in various grades and hole sizes.
Technical Specifications
- Materials: Low carbon galvanized wire, hot dipped galvanized high carbon wire, low carbon cold galvanized wire

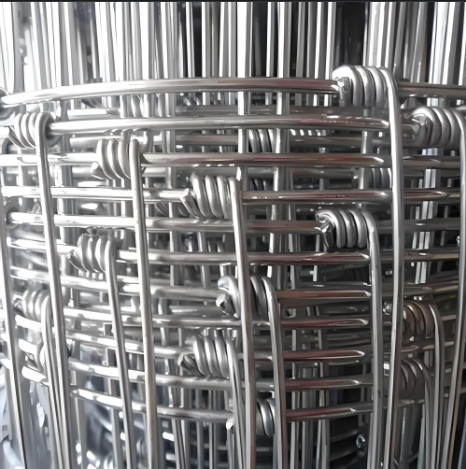

- Knot types: Hinge Knot & Fixed Knot
- Surface treatment:
- Class A: Hot dipped galvanized hinge joint field fence (zinc coated: 220-260g/m²)
- Class B: Hot dipped galvanized hinge joint field fence (zinc coated: 60-70g/m²)
- Class C: Electro galvanized hinge joint field fence (zinc coated: 15-20g/m²)
- Mesh wire diameter: 1.8mm~2.5mm
- Edge wire diameter: 2.0mm~3.2mm
- Opening sizes: Warp 15-14-13-11-10-8-6cm; Weft 15-18-20-40-50-60-65cm
- Height options: 0.8m, 1.0m, 1.2m, 1.5m, 1.7m, 2.0m, 2.3m (custom sizes available)
- Length options: 50m-100m (custom lengths available)
| NO. | Specification | Weight (kg) | Bottom (mm) | Dia. (mm) |
|---|---|---|---|---|
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 |
Key Features
- Corrosion-Resistant Material: Made of galvanized steel with PVC coating for long-lasting durability
- High Tensile Strength: Withstands heavy impacts from livestock and harsh weather conditions
- Flexible Design: Adapts to uneven terrain while maintaining structural integrity
- Animal-Safe Grids: Smooth, secure mesh minimizes injury risks to cattle and horses
- Easy Installation & Maintenance: Lightweight yet sturdy, requiring minimal upkeep over time
Product Advantages
- Costs the same as a 5 strand barbed wire fence
- Stronger than a 9 gauge hinged joint or barbed wire fence
- Lasts 3 times longer than traditional hinged joint
- Maintains tension and won't lose its shape
- Absorbs impact and maintains tension during temperature changes
- Uses 40% fewer posts compared to barbed wire
- Prevents sagging and maintains structural integrity
- Prevents cattle from putting their head through the fence
- Kinder to animals with less damage to hides
- Requires minimal maintenance due to superior design
Frequently Asked Questions
Are you a manufacturer?
Yes, we have been providing these products for 20 years.
Is customization available?
Yes, we can customize according to your detailed drawings.
Can I get product samples?
Yes, free samples are available upon request.
What are your payment terms?
Typically 30% deposit, with 70% paid before shipment.
What is your delivery timeline?
Stock products ship within 7 working days after deposit. Custom products require 20-30 days after deposit.
Company Information
Anping Laidi Wire Mesh Product Co., Ltd is located in Anping County, China's Wire Mesh production hub. We specialize in manufacturing various wire mesh fences and related products with over 10 years of export experience.
Our products are sold worldwide, exported to Canada, America, Dubai, India, Australia, Kenya, Tanzania and other countries.
Quality Certifications
Our company has passed ISO quality management system certification and maintains strict quality control standards. We implement safety production standardization and occupational hazard risk control systems. Our quality policy focuses on "excellence, zero defect" in all operational aspects.
