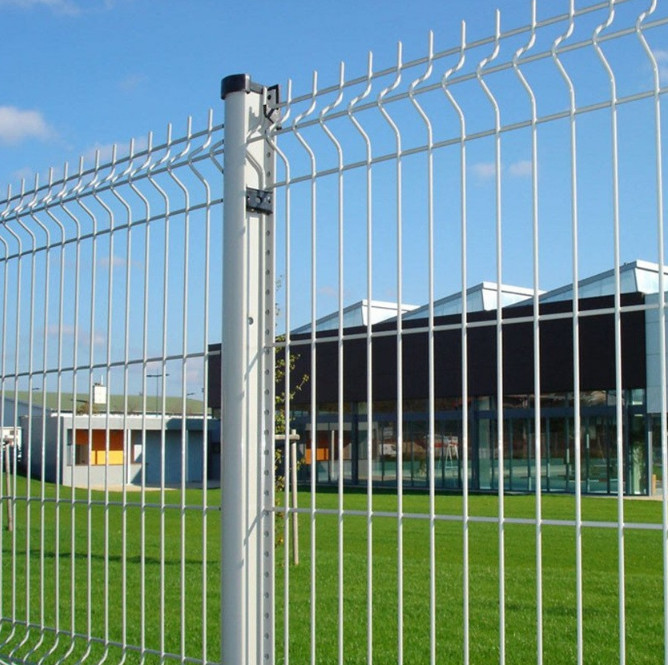

School Site 3D Welded Mesh Fence 55x100mm Mesh Security Fencing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3D Wire Mesh Fence | Material | Low Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Usage | Garden Fence |
| Service | Video Of Installation | Frame Finishing | PVC Coated |
| Color | Customized | Wire Diameter | 5.0mm.4.5mm,4.0mm,3.5mm |
| Mesh Size | 50*50mm,60*60mm,70*70mm,80*80mm | Panel Size | 2.0m,1.8m,1.5m,1.2m,etc |
| Opening | 50*200mm,50*100mm,etc | Post Shape | Peach Post. Square Post |
| Highlight | 55x100mm Mesh Security Fencing,3D Welded Mesh Security Fencing,School Site Mesh Security Fencing |
||
Product Description

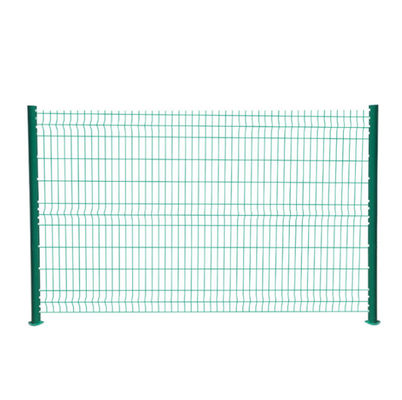

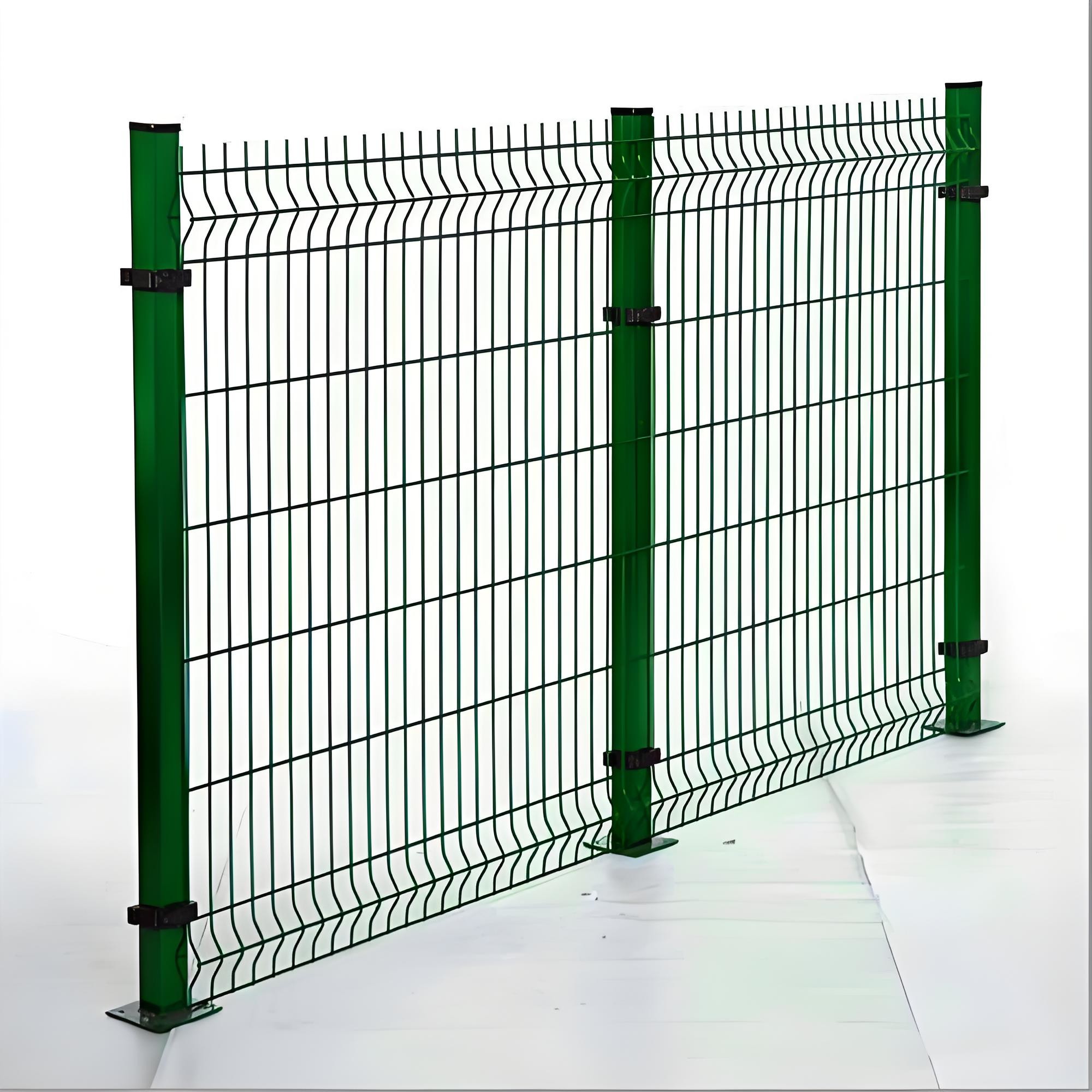

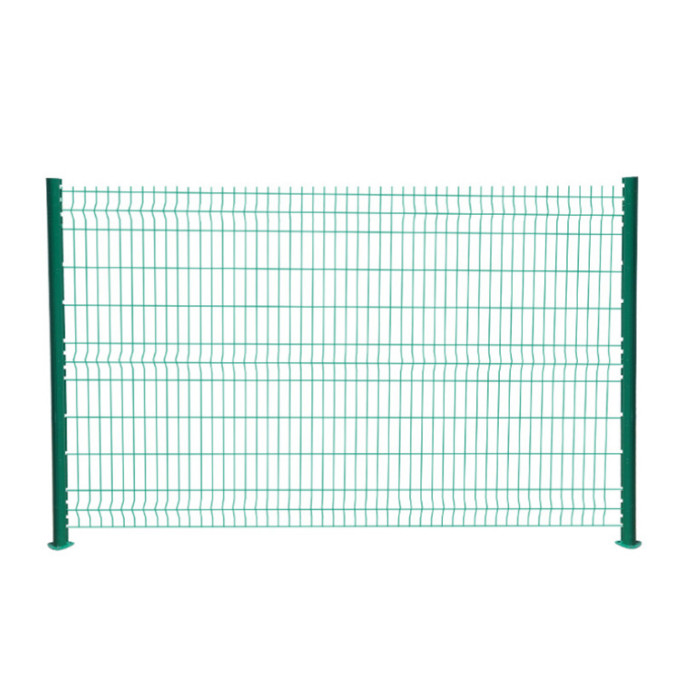

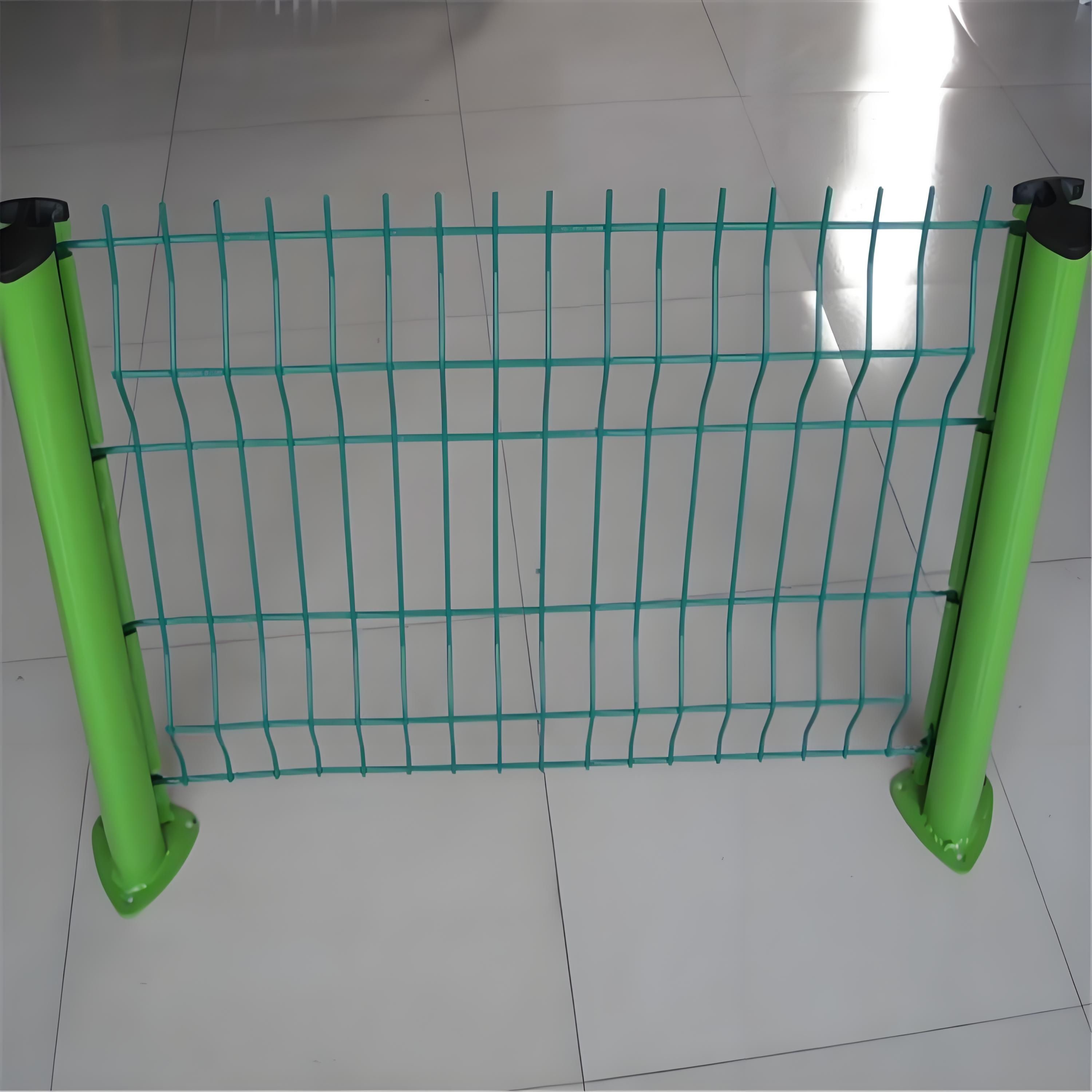

School Site 3D Welded Mesh Fence 55x100mm Mesh Security Fencing
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | 3D wire mesh fence |
| Material | Low carbon steel |
| Place of Origin | Hebei, China |
| Usage | Garden fence |
| Service | Video of installation |
| Frame Finishing | PVC coated |
| Color | Customized |
| Wire Diameter | 5.0mm, 4.5mm, 4.0mm, 3.5mm |
| Mesh Size | 50×50mm, 60×60mm, 70×70mm, 80×80mm |
| Panel Size | 2.0m, 1.8m, 1.5m, 1.2m, etc |
| Opening | 50×200mm, 50×100mm, etc |
| Post Shape | Peach post, Square post |
Product Description
Our 3D curved wire mesh fence is constructed from high-quality low carbon steel galvanized wire, featuring several curves along the panel height to enhance rigidity and strength. The panels can be customized with artificial hedge, plastic straps, rigid PVC slats, or sightscreen nets. Each panel includes 30mm edges at the top for added durability.
Specifications
- Material: High quality low carbon steel wire (Q235, Q195, S235J2)
- Process: Material → straighten and cutting → welded → making folds → parkerising → galvanized/hot-dipped → PVC coated → packing
- Colors: Green (RAL6005), white (RAL9010), grey (RAL7004), yellow (RAL1021), black (RAL9005), blue (RAL5005), or customized
| Specification | Details |
|---|---|
| Wire diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| H × W (mm) | Height from 0.63-2.4mm, width 2m, 2.5m, 3.0m |
| Opening (mm) | 50×100mm, 50×150mm, 50×200mm, 75×150mm, etc. |
| PVC coated thickness (mm) | 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire |
| Peach Post | 50×70×1.2mm, 70×100×1.2mm, post height matches panel height |
| Surface treatment | Wire mesh panel: galvanized + PVC coated, gal. + powder spraying. Post: galvanized + powder spraying |
Wire Mesh Panel Features
- Direct connection with mesh eliminates need for buckles
- Effective anti-theft and anti-disassembly design
- Attractive appearance with durable construction
- Simple structure for fast and convenient installation
Applications
- Industrial construction fencing
- Airport, railway station service areas
- Highway enclosures
- Warehouse protection fencing
- School sports fields and stadiums
- Garden and park security fencing
- Residential site protection
- Agricultural security fencing
- Animal enclosure fencing
Fence Post Options
| Post Type | Dimensions | Thickness |
|---|---|---|
| Profile post | 48mm /60mm | 10/1.1/1.2mm |
| Square post | 40×40, 60×60mm | 1.5/2.0/2.5mm |
| Peach Post | 50×70, 70×100mm | 10/1.1/1.2mm |
| Rectangle Post | 40×60, 60×80mm | 1.5/2.0/2.5mm |
| I Post | 70×44, 100×66mm | 1.5/2.0/2.5mm |
Fence Panel Specifications
| Feature | Options |
|---|---|
| Width | 2.50m, 2.75m, 3.0m |
| Height | 830, 1030, 1230, 1430, 1630, 1830, 2030, 2230, 2430mm |
| Mesh Size | 55×100mm, 50×150mm, 50×200mm, 55×200mm, 75×150mm, 60×200mm |
| Wire thickness | 4.0mm, 4.5mm, 5.0mm |
| Curves | 2, 3, 3, 4, 4, 4, 6 |
| Finish | Hot dip galvanized, galvanized and epoxy coated, galvanized and PVC coated |
| Nos. of brackets | 2, 3, 3, 4, 4, 4, 6 |
Product Advantages
- Fence posts designed for concrete pouring with low installation cost
- High strength construction with excellent overall stability
- Color plastic coating/spraying provides superior corrosion resistance and decorative effect
- Harmonious perimeter design with attractive appearance
After-Sales Service
Our comprehensive after-sales service begins immediately after contract signing:
- Freight cost optimization assistance for both FOB and CIF terms
- Transparent production process with regular photo updates
- Full support for shipment arrangement and customs clearance
- Detailed installation, maintenance, and repair instructions provided
Frequently Asked Questions
Can you provide a free sample first?
Yes. Please contact our sales team for details. Samples are available with nominal charges.
What is your delivery time?
Approximately 15 to 25 days after receiving your 30% deposit.
Are you a real factory?
Yes. We have been manufacturing and exporting wire mesh products since 2013.
What are your payment terms?
We accept T/T or Irrevocable L/C at sight.
How can I get a quotation?
Please contact us through our provided contact information.
Product Connection Type
Product Accessories
Packing & Delivery
- Fence panel: Plastic film / wooden case + metal/wooden pallet
- Fence post: Plastic bag + metal/wooden pallet (with rainhat installed)
- Fence accessories: Plastic bag + carton box (clips & screws)
Accessories come in various types and materials to suit different requirements. No special attachments needed for piping installation - uses propulsion device for easy gripping and fast installation, reducing overall costs.
