Powder Coated Garden Curved 3D V Bend 2.5m Welded Wire Mesh Garden Fence
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3D Wire Mesh Fence | Material | Low Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Usage | Garden Fence |
| Service | Video Of Installation | Frame Finishing | PVC Coated |
| Color | Customized | Wire Diameter | 5.0mm.4.5mm,4.0mm,3.5mm |
| Mesh Size | 50*50mm,60*60mm,70*70mm | Panel Size | 2.0m,1.8m,1.5m,etc |
| Opening | 50*200mm,50*100mm, | Post Shape | Peach Post. Square Post |
| Highlight | 2.5m Garden Fence,Powder Coated Garden Fence,3D V Bend Garden Fence |
||
Product Description
Powder Coated Garden Curved 3D V Bend 2.5m Welded Wire Mesh Garden Fence
Product Attributes
| Product Name | 3D wire mesh fence |
| Material | Low carbon steel |
| Place of Origin | Hebei, China |
| Usage | Garden fence |
| Service | Video of installation |
| Frame Finishing | PVC coated |
| Color | Customized |
| Wire Diameter | 5.0mm, 4.5mm, 4.0mm, 3.5mm |
| Mesh Size | 50×50mm, 60×60mm, 70×70mm |
| Panel Size | 2.0m, 1.8m, 1.5m, etc |
| Opening | 50×200mm, 50×100mm |
| Post Shape | Peach post, Square post |
Product Description

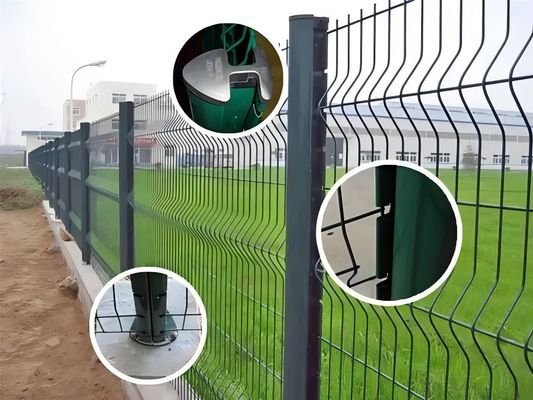

The 3D V Bend Welded Mesh Fence is renowned worldwide as an anti-climb and anti-cut barrier, constructed from high-quality low carbon steel wires. Designed for attractive, long-lasting, and secure perimeter protection, it's ideal for industrial and commercial properties, public utilities, and compatible with electronic alarm and detection systems. Its design eliminates blind spots for CCTV surveillance, making it particularly suitable for military installations, airports, secure units, and prisons.
Specifications
Material: High quality low carbon steel wire (Q235, Q195, S235J2)
Manufacturing Process: Material → Straightening and cutting → Welding → Forming folds → Parkerising → Galvanizing/hot-dipping → PVC coating → Packing
Available Colors: Green (RAL6005), white (RAL9010), gray (RAL7004), yellow (RAL1021), black (RAL9005), blue (RAL5005), or customized as requested
| Specification | Details |
|---|---|
| Wire diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| Height × Width | Height: 0.63-2.4m; Width: 2m, 2.5m, 3.0m |
| Opening | 50×100mm, 50×150mm, 50×200mm, 75×150mm, etc. |
| PVC coating thickness | 1.0mm for wires above 3mm; 0.8-0.9mm for 3mm or thinner wires |
| Peach Post | 50×70×1.2mm, 70×100×1.2mm (post height matches panel height) |
| Surface treatment | Wire mesh panel: galvanized + PVC coated; Post: galvanized + powder sprayed |
Key Features
- Direct mesh connection without buckles for enhanced anti-theft and anti-disassembly properties
- Attractive appearance with durable construction
- Simple structure for fast and convenient installation
- Anti-climb and anti-cut through design for superior security
- Compatible with electronic alarm and CCTV systems
Applications
- Industrial construction fencing
- Airport and railway station service areas
- Highway enclosures
- Warehouse protection fencing
- School sports fields and stadiums
- Garden and park security fencing
- Residential site protection
- Agricultural security fencing
- Animal enclosure fencing
Fence Post Options
| Post Type | Dimensions | Thickness |
|---|---|---|
| Profile post | 48mm / 60mm | 1.0/1.1/1.2mm |
| Square post | 40×40, 60×60mm | 1.5/2.0/2.5mm |
| Peach Post | 50×70, 70×100mm | 1.0/1.1/1.2mm |
| Rectangle Post | 40×60, 60×80mm | 1.5/2.0/2.5mm |
| I Post | 70×44, 100×66mm | 1.5/2.0/2.5mm |
Fence Panel Specifications
| Parameter | Options |
|---|---|
| Width | 2.50m, 2.75m, 3.0m |
| Height | 830-2430mm in 200mm increments |
| Mesh Size | 55×100mm, 50×150mm, 50×200mm, 55×200mm, 75×150mm, 60×200mm |
| Wire thickness | 4.0mm, 4.5mm, 5.0mm |
| Curves | 2, 3, 4, 6 |
| Finish | Hot dip galvanized, galvanized + epoxy coated, galvanized + PVC coated |
| Number of brackets | 2, 3, 4, 6 |
Product Advantages
- Concrete-poured fence posts for cost efficiency
- High strength with excellent overall stability
- Color plastic coating/spraying provides superior corrosion resistance and decorative effect
- Harmonious perimeter appearance with attractive outlook
- Durable construction with long service life
After-Sales Service
- Comprehensive service begins immediately after contract signing
- Assistance in finding optimal freight solutions regardless of price terms (FOB/CIF)
- Transparent production process with photos provided for customer verification
- Support with shipment arrangement and customs clearance
- Complete installation, maintenance, and repair instructions provided
Frequently Asked Questions
Can you provide a free sample first?
Yes. Please contact our sales team for details. Samples are available with charge.
What is your delivery time?
Typically 15 to 25 days after receiving your 30% deposit.
Are you a real factory?
Yes. We have been manufacturing and exporting wire mesh products since 2013.
What are your payment terms?
We accept T/T or Irrevocable L/C at sight.
How can I get a quotation?
Please contact us through the provided channels for detailed pricing information.
Product Connection Types
Product Accessories
Packing & Delivery
- Fence panel: Plastic film / wooden case + metal/wooden pallet
- Fence post: Plastic bag + metal/wooden pallet (with rainhat installed)
- Fence accessories: Plastic bag + carton box (clips & screws)
- Specialized propulsion device for piping installation - easy to grip, fast installation, reduces costs
