V Mesh Security Fence With Green yellwo Color 3.0 Wide 3d Curved Fence
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3D Wire Mesh Fence | Material | Low Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Usage | Garden Fence |
| Service | Video Of Installation | Frame Finishing | PVC Coated |
| Color | Customized | Wire Diameter | 5.0mm.4.5mm,4.0mm |
| Mesh Size | 50*50mm,60*60mm,70*70mm | Panel Size | 2.0m,1.8m,1.5m |
| Opening | 50*200mm | Post Shape | Peach Post. Square Post |
| Highlight | 3.0 Wide V Mesh Security Fence,3d Curved V Mesh Security Fence,Green V Mesh Security Fence |
||
Product Description

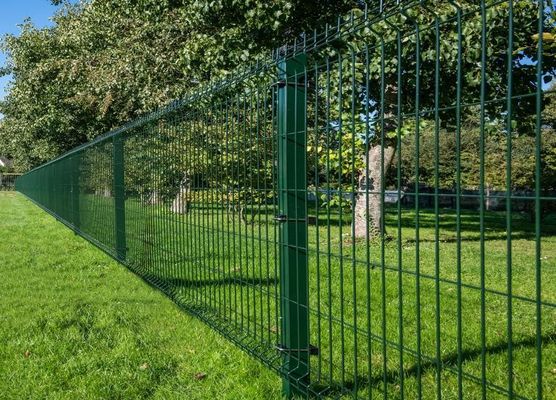

V Mesh Security Fence With Green Yellow Color 3.0 Wide 3D Curved Fence
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | 3D wire mesh fence |
| Material | Low carbon steel |
| Place of Origin | Hebei, China |
| Usage | Garden fence |
| Service | Video of installation |
| Frame Finishing | PVC coated |
| Color | Customized |
| Wire Diameter | 5.0mm, 4.5mm, 4.0mm |
| Mesh Size | 50×50mm, 60×60mm, 70×70mm |
| Panel Size | 2.0m, 1.8m, 1.5m |
| Opening | 50×200mm |
| Post Shape | Peach post, Square post |
Product Description

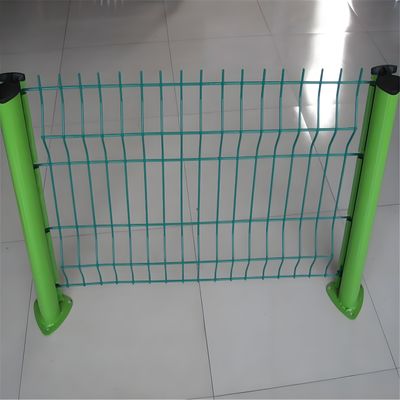

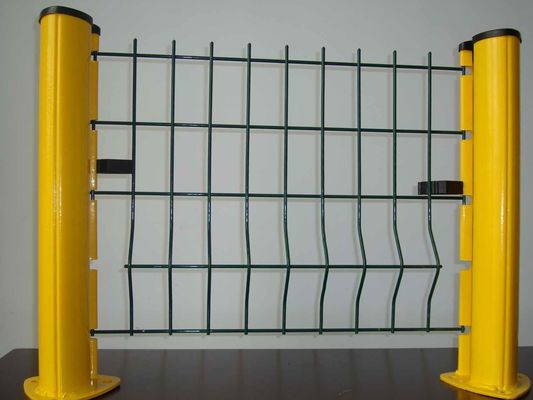

3D Curved Wire Mesh Description
3D curve fences are popular worldwide, commonly used for roads, farms, gardens, personal areas, and some industrial areas. Our product is manufactured by Huilong Wire Mesh using high-quality raw materials (Q195 low carbon steel) with strict quality control throughout each production process.
Specification
Wire Mesh Fence Material: High quality low carbon steel wire Q235, Q195, S235J2
Wire Mesh Fence Process: Material → Straighten and cutting → Welded → Making folds → Parkerising → Galvanized/hot-dipped → PVC coated → Packing
Wire Mesh Fence Colors: Green (RAL6005), white (RAL9010), grey (RAL7004), yellow (RAL1021), black (RAL9005), blue (RAL5005), etc. as requested
Common Specifications
| Specification | Details |
|---|---|
| Wire diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| H × W (mm) | Height from 0.63-2.4mm, width 2m, 2.5m, 3.0m |
| Opening (mm) | 50×100mm, 50×150mm, 50×200mm, 75×150mm, etc. |
| PVC coated thickness (mm) | 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire |
| Peach Post | 50×70×1.2mm, 70×100×1.2mm, post height goes with panel height |
| Surface treatment | Wire mesh panel: galvanized + PVC coated, gal. + powder spraying. Post: galvanized + powder spraying |
Wire Mesh Panel Features
3D wire mesh fence can be directly connected with the mesh without any buckle, which effectively provides anti-theft and anti-disassembly protection. It features beautiful appearance, durability, simple structure, and fast, convenient installation.
Applications
- Industry construction fence
- Airport, railway station service area
- Highway enclosure
- Warehouse protection fence
- School sports field, stadium
- Garden, park security fence
- Residential site
- Agriculture security fence
- Animal enclosure fence
Fence Post Options
| Profile post | 48mm /60mm | 10/1.1/1.2mm thickness |
|---|---|---|
| Square post | 40×40, 60×60mm | 1.5/2.0/2.5 mm thickness |
| Peach Post | 50×70, 70×100mm | 10/1.1/1.2mm thickness |
| Rectangle Post | 40×60, 60×80mm | 1.5/2.0/2.5 mm thickness |
| I Post | 70×44, 100×66mm | 1.5/2.0/2.5 mm thickness |
Fence Panel Specifications
| Width | 2.50m, 2.75m, 3.0m |
|---|---|
| Height | 830, 1030, 1230, 1430, 1630, 1830, 2030, 2230, 2430mm |
| Mesh Size | 55×100mm, 50×150mm, 50×200mm, 55×200mm, 75×150mm, 60×200mm |
| Wire thickness | 4.0mm, 4.5mm, 5.0mm |
| Curves | 2, 3, 3, 4, 4, 4, 6 |
| Finish | Hot dip galvanized, galvanized and epoxy coated, galvanized and PVC coated |
| Nos. of brackets | 2, 3, 3, 4, 4, 4, 6 |
Wire Mesh Fence Advantages
- Fence posts made with concrete pouring, with low cost
- High strength, good overall stability
- Color plastic coating/spraying layer has good anti-corrosion and decorative effect
- The fence perimeter has a harmony and good outlook
After-sales Service
Our after-sales service starts immediately after signing the contract:
- We find the lowest freight cost for customers' reference, whether FOB or CIF
- Third-party inspections receive accurate data; we provide production photos if no inspection occurs
- We assist with shipment arrangement and customs clearance
- Complete installation, maintenance and repair instructions provided
FAQ
Question 1: Can you express a free sample first?
Answer 1: Yes. Welcome to chat with our sales for more details. We always express the sample with charged.
Question 2: What is your delivery time?
Answer 2: It is about 15 to 25 days after receiving your 30% deposit.
Question 3: Is that a real factory?
Answer 3: Yes. We have manufactured and exported wire mesh since 2013.
Question 4: What is the payment terms?
Answer 4: Available by T/T or by Irrevocable L/C at sight.
Question 5: How can I get the quotation?
Answer 5: You can contact us as follows.
Product Connection Type
Product Accessories
Packing & Delivery
- Fence panel: plastic film / wooden case + metal/wooden pallet
- Fence post: plastic bag + metal/wooden pallet (with rainhat installed)
- Fence accessories: plastic bag + carton box (clips & screws)
Accessories come in different types and materials and can be selected as needed. No special attachment for piping installation, use propulsion device, easy to grip, fast, reduce cost.
