3d Curved Welded Mesh Fence 1.5m PVC Coated 3d Curved Wire Mesh Fence
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3D Wire Mesh Fence | Material | Low Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Usage | Garden Fence |
| Service | Video Of Installation | Frame Finishing | PVC Coated |
| Color | Customized | Wire Diameter | 5.0mm |
| Mesh Size | 50*50mm,60*60mm | Panel Size | 1.5m |
| Opening | 50*200mm | Post Shape | Peach Post. Square Post |
| Highlight | 3d Curved Wire Mesh Fence,3d Curved Welded Mesh Fence,PVC Coated curved wire fence |
||
Product Description
3D Curved Welded Mesh Fence 1.5m PVC Coated
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | 3D wire mesh fence |
| Material | Low carbon steel |
| Place of Origin | Hebei, China |
| Usage | Garden fence |
| Service | Video of installation |
| Frame Finishing | PVC coated |
| Color | Customized |
| Wire Diameter | 5.0mm |
| Mesh Size | 50*50mm, 60*60mm |
| Panel Size | 1.5m |
| Opening | 50*200mm |
| Post Shape | Peach post, Square post |
Product Description
3D Curved Wire Mesh Fence is recognized worldwide as an anti-climb and anti-cut barrier, constructed with high-quality carbon steel wires. Designed to provide attractive, durable, and secure perimeter protection for industrial and commercial properties, public utilities, and is particularly suitable for electronic alarm and detection systems with no blind spots for CCTV. An excellent choice for military facilities, airports, secure units, and prisons.
Specifications
Wire Mesh Fence Material: High quality low carbon steel wire Q235, Q195, S235J2
Wire Mesh Fence Process: Material → Straighten and cutting → Welded → Making folds → Parkerising → Galvanized/hot-dipped → PVC coated → Packing
Wire Mesh Fence Colors: Green (RAL6005), white (RAL9010), grey (RAL7004), yellow (RAL1021), black (RAL9005), blue (RAL5005), or customized as requested
| Detailed Specifications | |
|---|---|
| Wire diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| H x W (mm) | Height from 0.63-2.4mm, width 2m, 2.5m, 3.0m |
| Opening (mm) | 50x100mm, 50x150mm, 50x200mm, 75x150mm, etc. |
| PVC coated thickness (mm) | 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire |
| Peach Post | 50x70x1.2mm, 70x100x1.2mm, post height matches panel height |
| Surface treatment | Wire mesh panel: galvanized + PVC coated, gal. + powder spraying. Post: galvanized + powder spraying |
Key Features
- Direct connection with mesh without buckles for enhanced security
- Anti-theft and anti-disassembly design
- Attractive appearance with durable construction
- Simple structure for fast and convenient installation
Applications
- Industrial construction fence
- Airport and railway station service areas
- Highway enclosure
- Warehouse protection fence
- School sports fields and stadiums

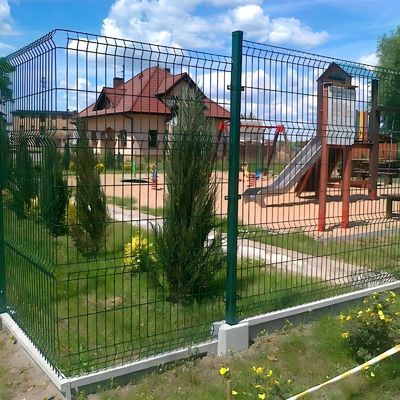

- Garden and park security fence
- Residential site protection
- Agriculture security fence
- Animal enclosure fence

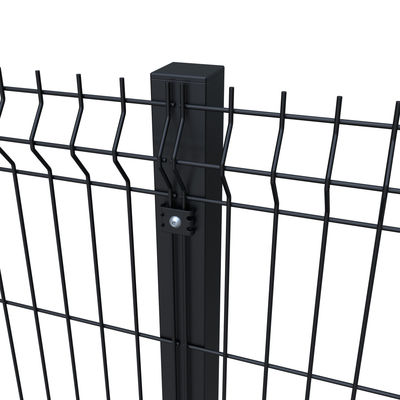

Fence Post Options
| Post Type | Dimensions | Thickness |
|---|---|---|
| Profile post | 48mm /60mm | 10/1.1/1.2mm |
| Square post | 40x40, 60x60mm | 1.5/2.0/2.5mm |
| Peach Post | 50x70, 70x100mm | 10/1.1/1.2mm |
| Rectangle Post | 40x60, 60x80mm | 1.5/2.0/2.5mm |
| I Post | 70x44, 100x66mm | 1.5/2.0/2.5mm |

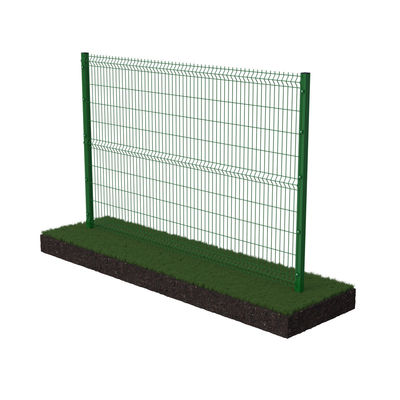

Fence Panel Specifications
| Parameter | Options |
|---|---|
| Width | 2.50m, 2.75m, 3.0m |
| Height | 830-2430mm in 200mm increments |
| Mesh Size | 55x100mm, 50x150mm, 50x200mm, 55x200mm, 75x150mm, 60x200mm |
| Wire thickness | 4.0mm, 4.5mm, 5.0mm |
| Curves | 2, 3, 4, 6 |
| Finish | Hot dip galvanized, galvanized + epoxy coated, galvanized + PVC coated |
| Nos. of brackets | 2, 3, 4, 6 |
Product Advantages
- Fence posts designed for concrete pouring with low cost
- High strength with excellent overall stability
- Color plastic coating/spraying provides superior corrosion resistance and decorative effect
- Harmonious perimeter appearance with excellent visual appeal
After-Sales Service
- Assistance with freight cost optimization regardless of price terms (FOB or CIF)
- Transparent third-party inspection process with production photos provided
- Support with shipment arrangement and customs clearance
- Comprehensive installation, maintenance and repair instructions provided
Frequently Asked Questions
Can you send a free sample first?
Yes. Please contact our sales team for details. Samples are available with charge.
What is your delivery time?
Approximately 15 to 25 days after receiving your 30% deposit.
Are you a real factory?
Yes. We have been manufacturing and exporting wire mesh products since 2013.
What are your payment terms?
Available by T/T or by Irrevocable L/C at sight.
How can I get a quotation?
Please contact us through the provided contact information.
Product Connection Type
Product Accessories
Packing & Delivery
- Fence panel: Plastic film / wooden case + metal/wooden pallet
- Fence post: Plastic bag + metal/wooden pallet (with rainhat installed)
- Fence accessories: Plastic bag + carton box (clips & screws)
- Accessories available in different types and materials as needed
- No special attachment required for piping installation
