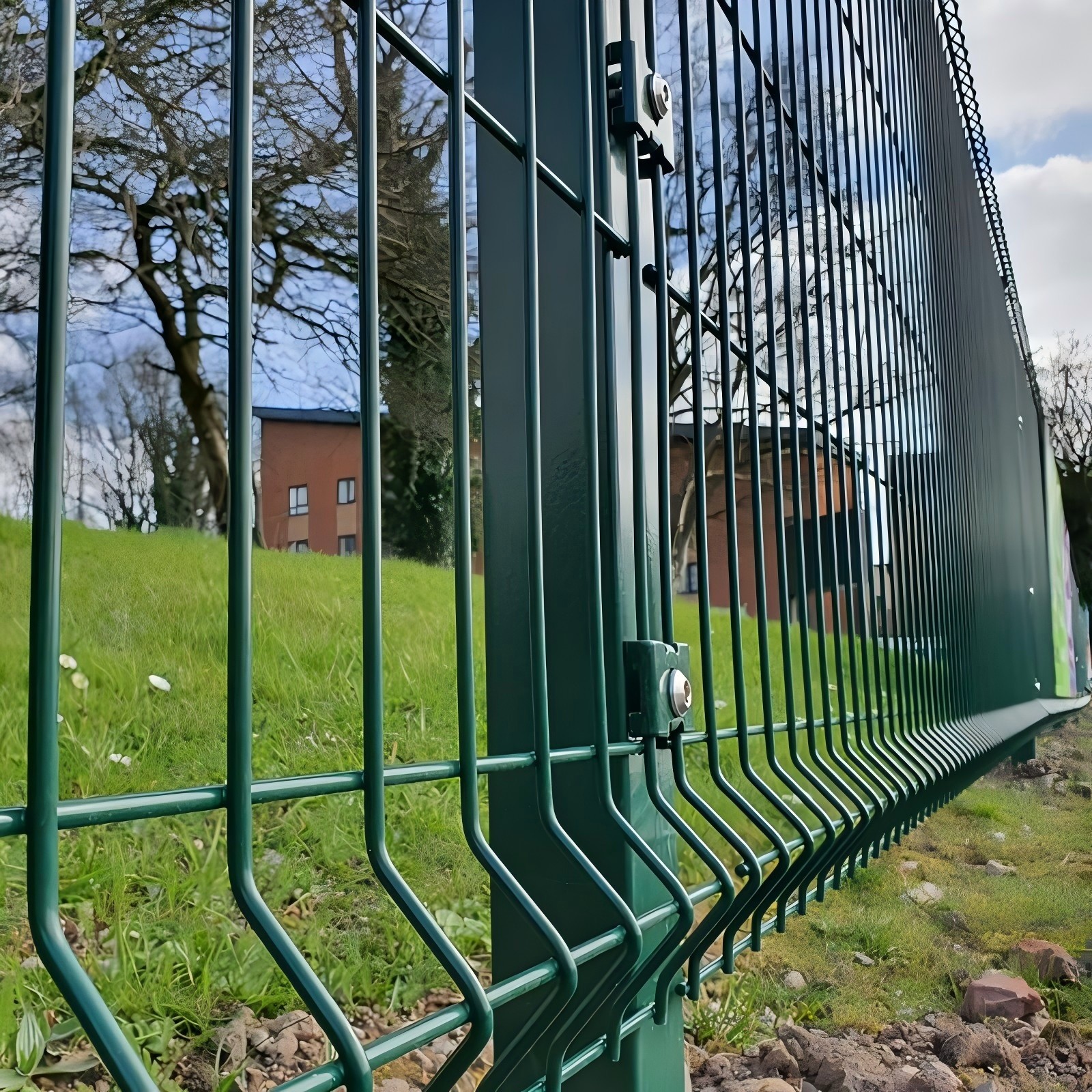

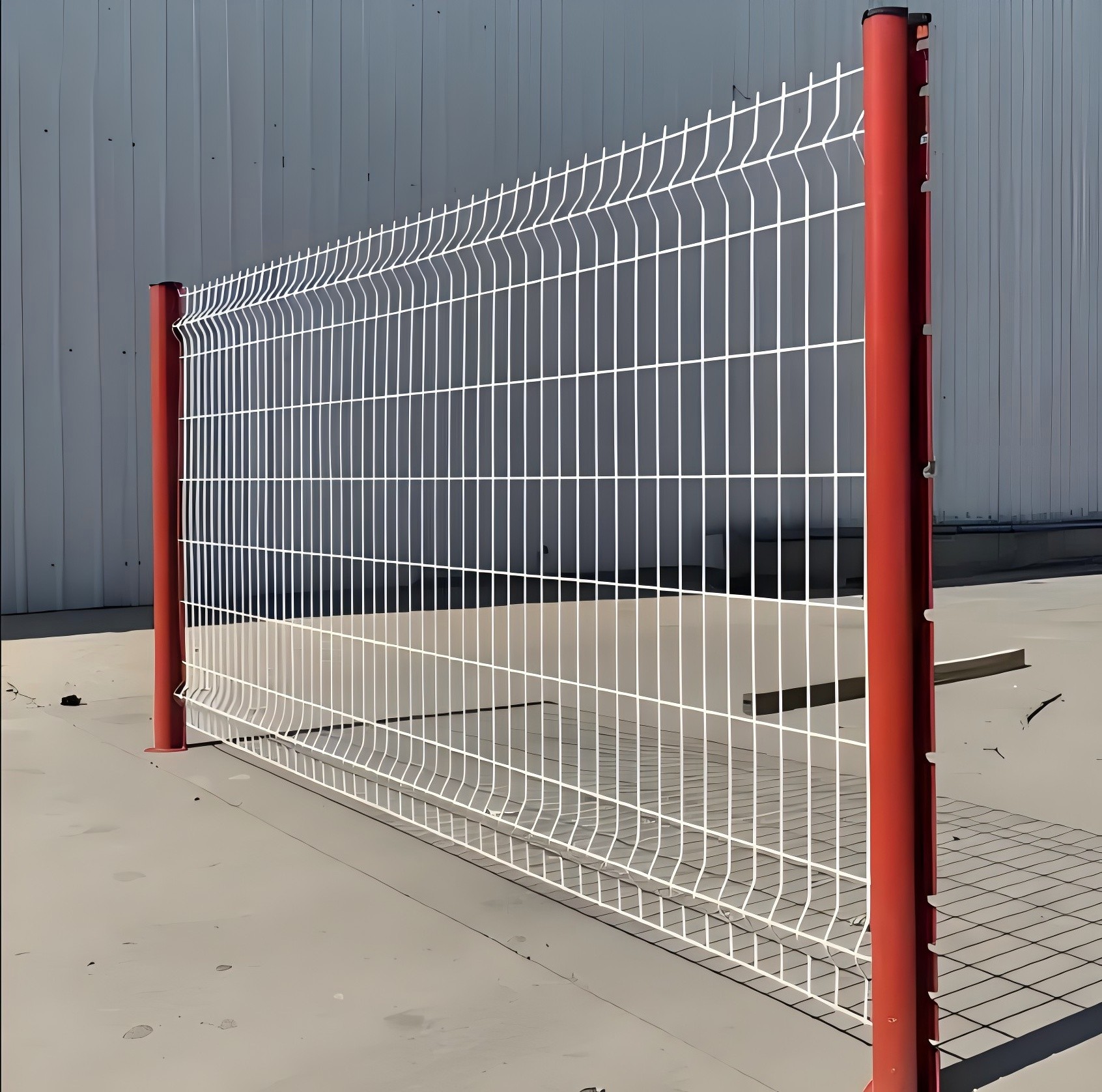

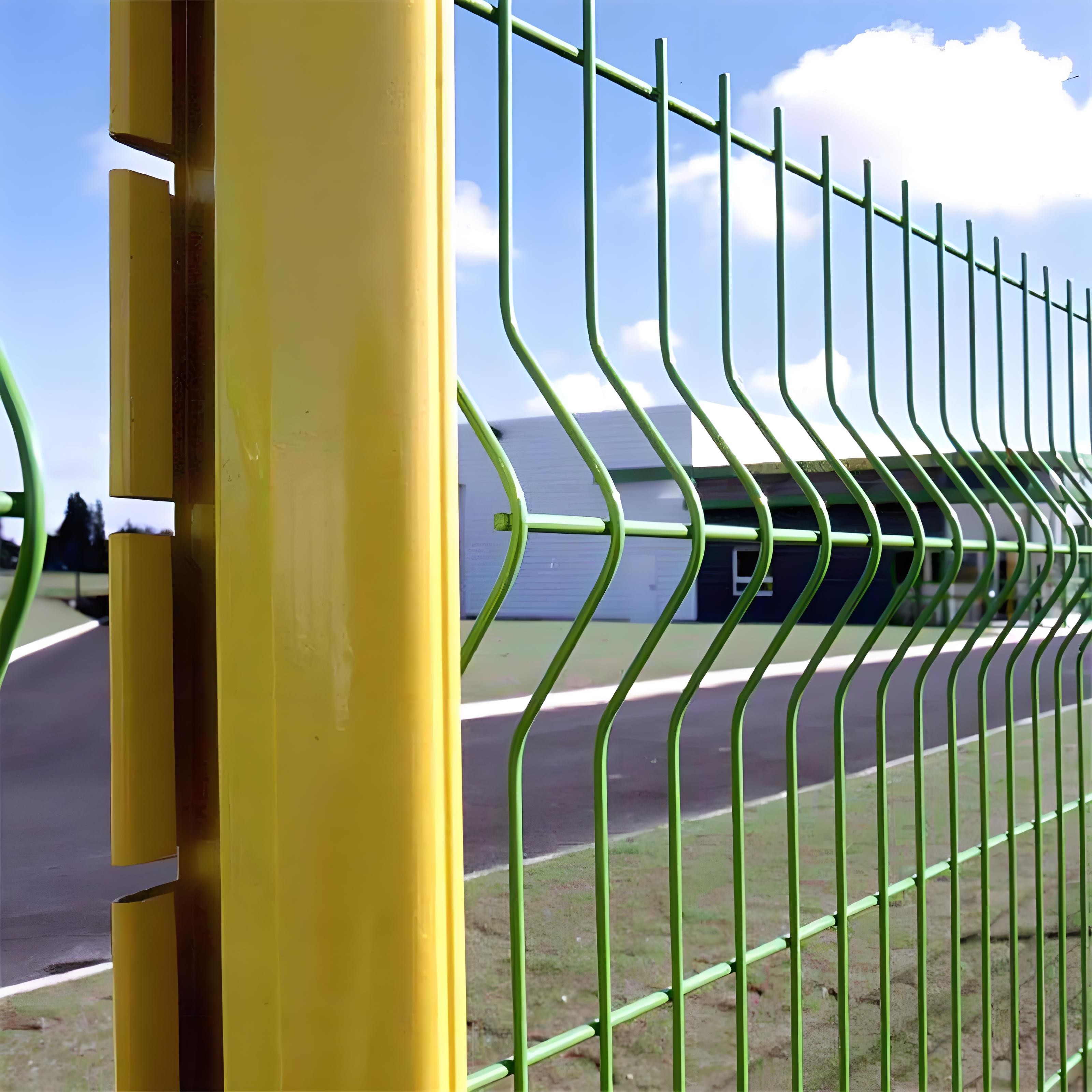

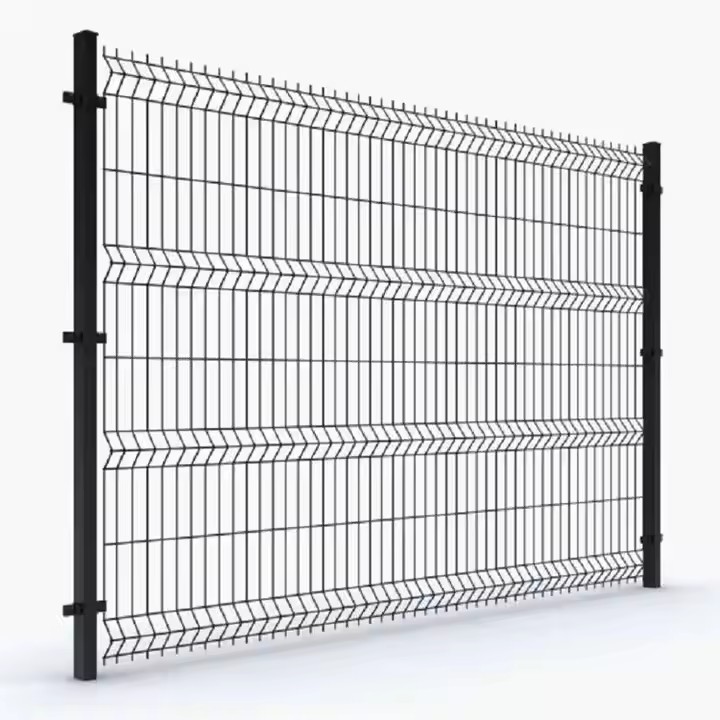

50*200MM 3D Curved Welded Mesh Fence PVC Coated Garden Fence
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3D Wire Mesh Fence | Material | Low Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Usage | Garden Fence |
| Service | Video Of Installation | Frame Finishing | PVC Coated |
| Color | Customized | Wire Diameter | 5.0mm |
| Mesh Size | 50*50mm,60*60mm | Panel Size | 1.8m*2.0m |
| Opening | 50*200mm | Post Shape | Peach Post. Square Post |
| Highlight | PVC Coated Garden Fence,3D Curved Welded Mesh Fence,50*200MM Welded Mesh Fence |
||
Product Description
50×200MM 3D Curved Welded Mesh Fence PVC Coated Garden Fence
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | 3D wire mesh fence |
| Material | Low carbon steel |
| Place of Origin | Hebei, China |
| Usage | Garden fence |
| Service | Video of installation |
| Frame Finishing | PVC coated |
| Color | Customized |
| Wire Diameter | 5.0mm |
| Mesh Size | 50×50mm, 60×60mm |
| Panel Size | 1.8m×2.0m |
| Opening | 50×200mm |
| Post Shape | Peach post, Square post |
Product Description
3D curved Welded Wire Mesh Fencing provides an affordable and durable security solution for residential and commercial properties. Its beautiful appearance, easy installation, and excellent protection performance have made it popular worldwide.
Technical Specifications
- Material: High quality low carbon steel wire (Q235, Q195, S235J2)
- Process: Straightening → Cutting → Welding → Folding → Parkerising → Galvanizing → PVC coating → Packing
- Available Colors: Green (RAL6005), white (RAL9010), gray (RAL7004), yellow (RAL1021), black (RAL9005), blue (RAL5005), or custom colors
| Specification | Details |
|---|---|
| Wire diameter | 3-5mm (powder spraying); 3-5mm before coating, 4-6mm after coating (PVC coated) |
| H × W (mm) | Height: 0.63-2.4m; Width: 2m, 2.5m, 3.0m |
| Opening (mm) | 50×100mm, 50×150mm, 50×200mm, 75×150mm |
| PVC coated thickness (mm) | 1.0mm for above 3mm wire; 0.8mm-0.9mm for 3mm or thinner wire |
| Peach Post | 50×70×1.2mm, 70×100×1.2mm (post height matches panel height) |
| Surface treatment | Wire mesh panel: galvanized + PVC coated; Post: galvanized + powder spraying |
Key Features
- Direct connection with mesh without buckles for enhanced security
- Attractive appearance with durable construction
- Simple structure for fast and convenient installation
- Effective anti-theft and anti-disassembly design
Applications
- Industrial construction fencing
- Airport, railway station, and service area security
- Highway and roadway enclosures
- Warehouse protection fencing
- School sports fields and stadiums
- Garden and park security fencing
- Residential property boundaries
- Agricultural security and animal enclosures
Fence Post Options
| Post Type | Dimensions | Thickness |
|---|---|---|
| Profile post | 48mm /60mm | 10/1.1/1.2mm |
| Square post | 40×40, 60×60mm | 1.5/2.0/2.5 mm |
| Peach Post | 50×70, 70×100mm | 10/1.1/1.2mm |
| Rectangle Post | 40×60, 60×80mm | 1.5/2.0/2.5 mm |
| I Post | 70×44, 100×66mm | 1.5/2.0/2.5 mm |
Fence Panel Specifications
| Feature | Options |
|---|---|
| Width | 2.50m, 2.75m, 3.0m |
| Height | 830-2430mm in various increments |
| Mesh Size | 55×100mm, 50×150mm, 50×200mm, 55×200mm, 75×150mm, 60×200mm |
| Wire thickness | 4.0mm, 4.5mm, 5.0mm |
| Curves | 2, 3, 4, 6 |
| Finish | Hot dip galvanized, galvanized + epoxy coated, galvanized + PVC coated |
| Nos. of brackets | 2, 3, 4, 6 |
Product Advantages
- Concrete-poured fence posts for cost efficiency
- High strength with excellent overall stability
- Color plastic coating provides superior corrosion resistance and aesthetic appeal
- Harmonious perimeter appearance
After-Sales Service
- Assistance with finding optimal freight solutions
- Transparent production process with regular updates
- Support with shipment and customs clearance
- Comprehensive installation, maintenance, and repair instructions
Frequently Asked Questions
Can you send a free sample first?
Yes. Please contact our sales team for details. Samples are available with a nominal charge.
What is your delivery time?
Approximately 15-25 days after receiving your 30% deposit.
Are you a real factory?
Yes, we have been manufacturing and exporting wire mesh products since 2013.
What are your payment terms?
We accept T/T or Irrevocable L/C at sight.
How can I get a quotation?
Please contact our sales team for a customized quote.
Product Connection Type
Product Accessories
Packing & Delivery
- Fence panel: Plastic film/wooden case + metal/wooden pallet
- Fence post: Plastic bag + metal/wooden pallet (with rainhat installed)
- Fence accessories: Plastic bag + carton box (clips & screws)
Accessories come in various types and materials to suit different installation requirements. No special attachments needed for piping installation - uses propulsion device for easy, fast installation that reduces costs.
