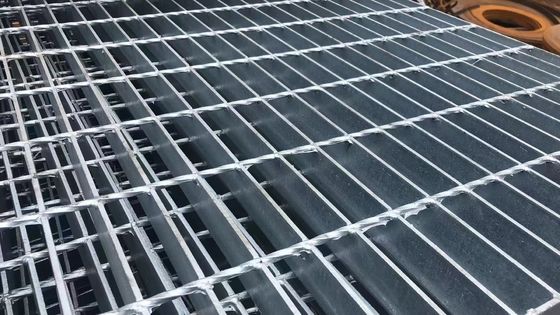

5mm Hot Dipped Galvanized Steel Grating Welded Drainage Steel Grating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Mild Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Plain Bar |
| Certificate | ISO9001 | Application | Office Building |
| Grate Mesh | 30x100mm | Steel Thcikness | 3mm |
| Bearing Bar Pitch | 40mm | Technique | Welded |
| Highlight | Hot Dipped Galvanized Steel Grating,Hot Dip Galvanized Steel Grating,Drainage Steel Grating Hot Dip Galvanized |
||
Product Description
5mm Hot Dipped Galvanized Steel Grating Welded Drainage Steel Grating
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Galvanized steel grating |
| Material | Mild steel |
| Place of Origin | Hebei, China |
| Surface Treatment | Hot dipped galvanized |
| Color | Silver |
| Type | Plain bar |
| Certificate | ISO9001 |
| Application | Office building |
| Grate Mesh | 30x100mm |
| Steel Thickness | 3mm |
| Bearing Bar Pitch | 40mm |
| Technique | Welded |
Product Description
5mm Thick Hot Dipped Galvanized Welded Drainage Channel Steel Grating
Our drainage channel steel grating is manufactured from carbon steel, aluminum steel, and stainless steel to suit various applications. Carbon steel grating offers economical solutions, while aluminum grating provides lightweight corrosion resistance. Stainless steel grating delivers exceptional chemical stability for acidic or alkaline environments.
Technical Specifications
| Material | Steel, aluminum, stainless steel |
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm |
| Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" |
| Surface Treatment | Untreated, hot-dipped galvanized, powder coated, electroplated, painted |
| Grating Style | Plain/smooth, serrated/teeth, I bar, serrated I bar |
| Standards | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS |
Key Features
- Resistant to extremely high temperatures
- Excellent corrosion and alkaline resistance
- Anti-rust properties
- Skid-resistant surface
- Rigid surface withstands heavy wear and tear
Applications
Our steel grating is widely used in:
- Ship pump rooms and engine room platforms
- Bridge sidewalks and overpasses
- Oil extraction sites and car wash platforms
- Parking lot fencing and building security
- High-strength drainage systems
- Power plants, petroleum, and chemical industries
- Shipbuilding and harbor engineering
Production Process
Our steel grating is manufactured through precision welding of flat steel bars at specific intervals, followed by cutting, opening, edging, and hot-dip galvanizing for superior corrosion resistance.
Packaging Options
- Bandage and paperboard for neat steel plates
- Screw locking method for high strength applications
- Steel pallets for traditional export packaging
Frequently Asked Questions
Are you a manufacturer or trader?
We are a direct factory with complete production facilities and workforce, ensuring competitive pricing without middleman fees.
We are a direct factory with complete production facilities and workforce, ensuring competitive pricing without middleman fees.
Where do you export to?
Our products are exported worldwide, including Australia, Canada, UK, USA, Germany, Thailand, and South Korea.
Our products are exported worldwide, including Australia, Canada, UK, USA, Germany, Thailand, and South Korea.
Do you provide samples?
Available samples are free; customized samples may require production.
Available samples are free; customized samples may require production.
What is your minimum order quantity?
No strict MOQ - we recommend quantities based on optimal pricing.
No strict MOQ - we recommend quantities based on optimal pricing.
What payment methods do you accept?
We accept T/T, LC, Western Union, PayPal, Escrow, and Money Gram.
We accept T/T, LC, Western Union, PayPal, Escrow, and Money Gram.
