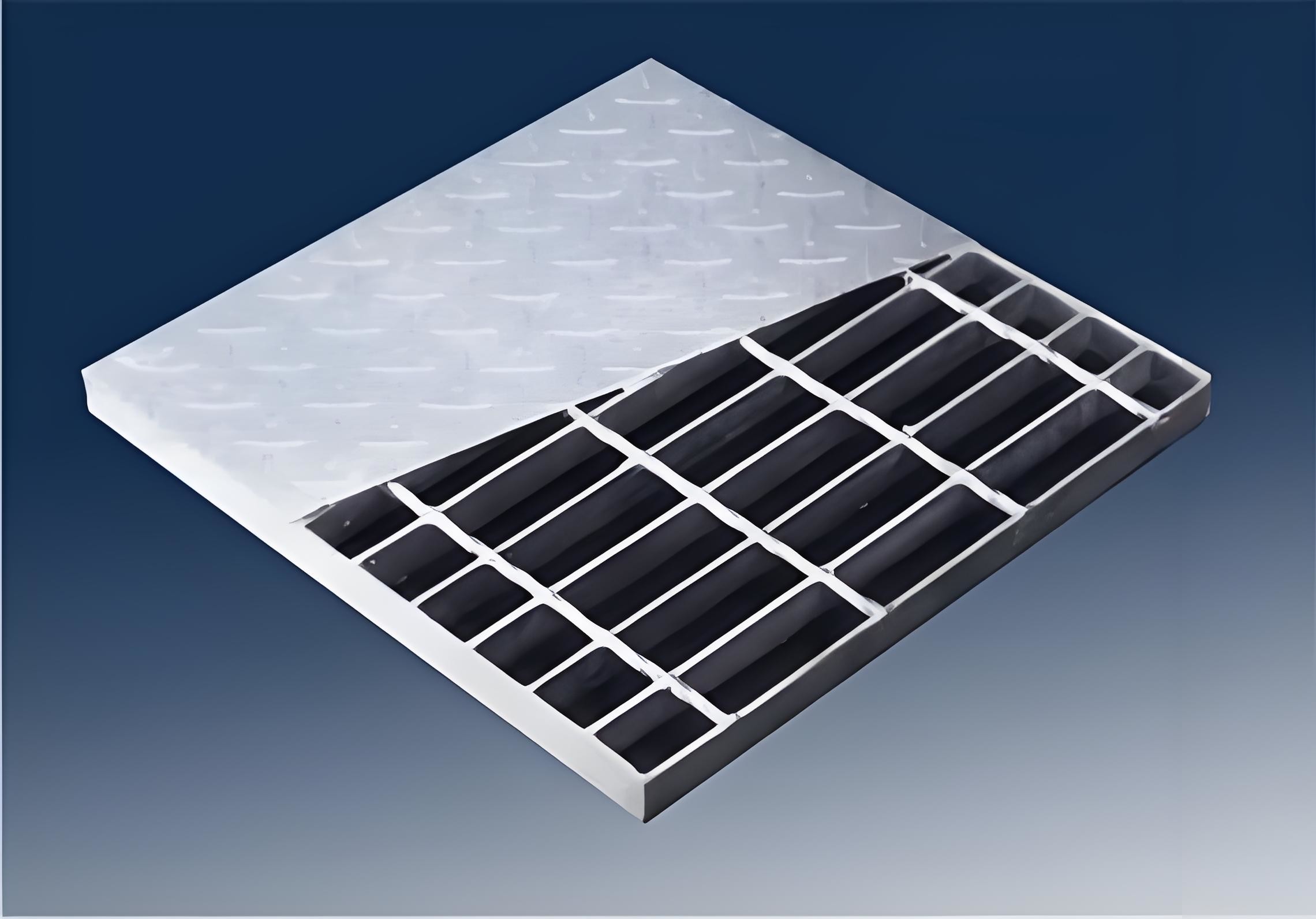

Special Shape Galvanized Steel Grating 5CM Composite Steel Grating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Mild Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Plain Bar |
| Certificate | ISO9001 | Application | Office Building |
| Brand Name | LaiDi | Grate Mesh | 40x100mm |
| Steel Thcikness | 5.0mm | Bearing Bar Pitch | 50mm |
| Highlight | Special Shape Galvanized Steel Grating,Galvanized Steel Grating 5CM,Composite Steel Grating Galvanized |
||
Product Description

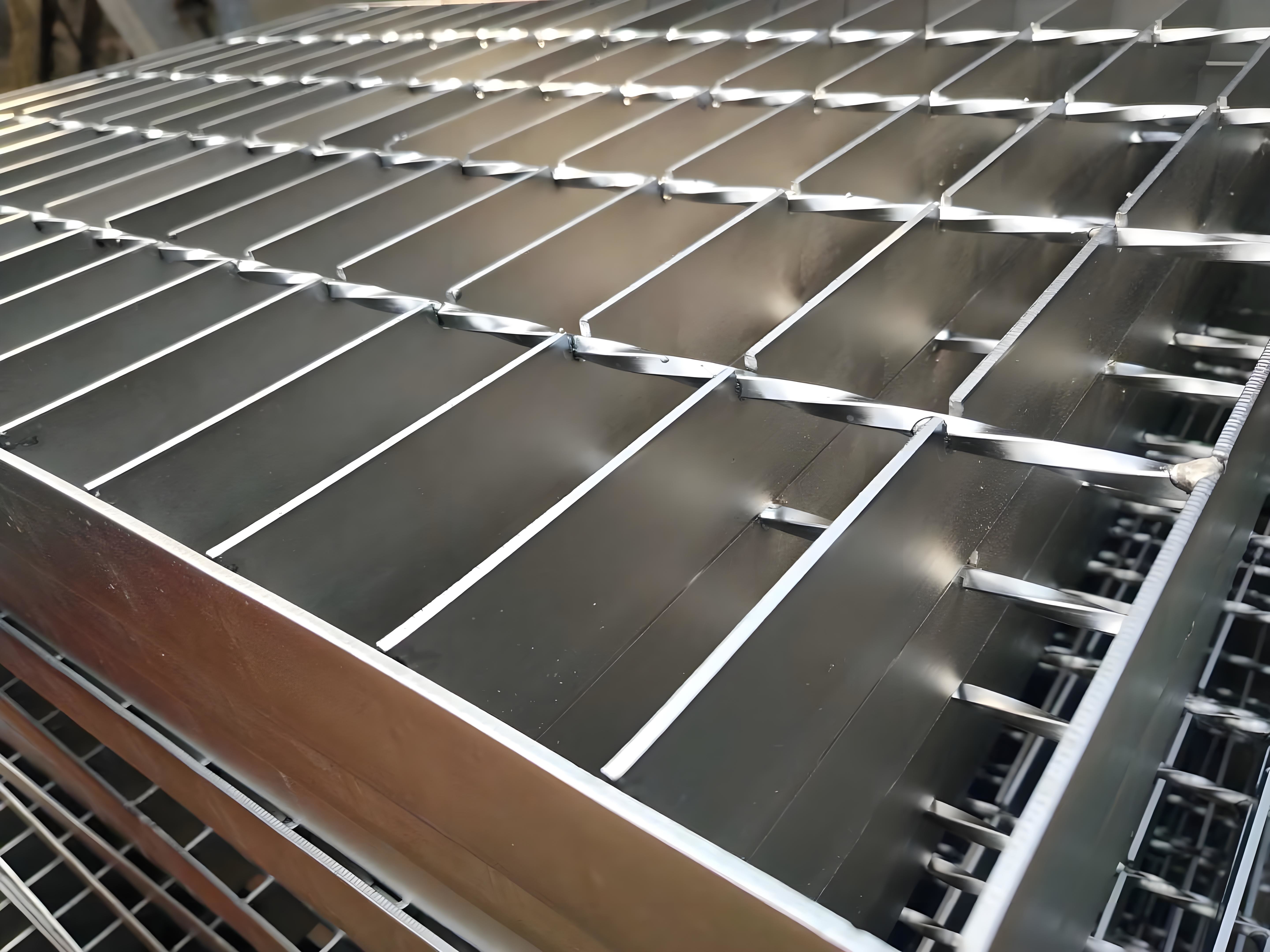

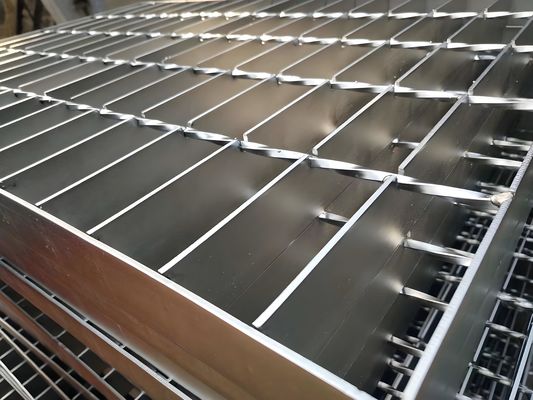

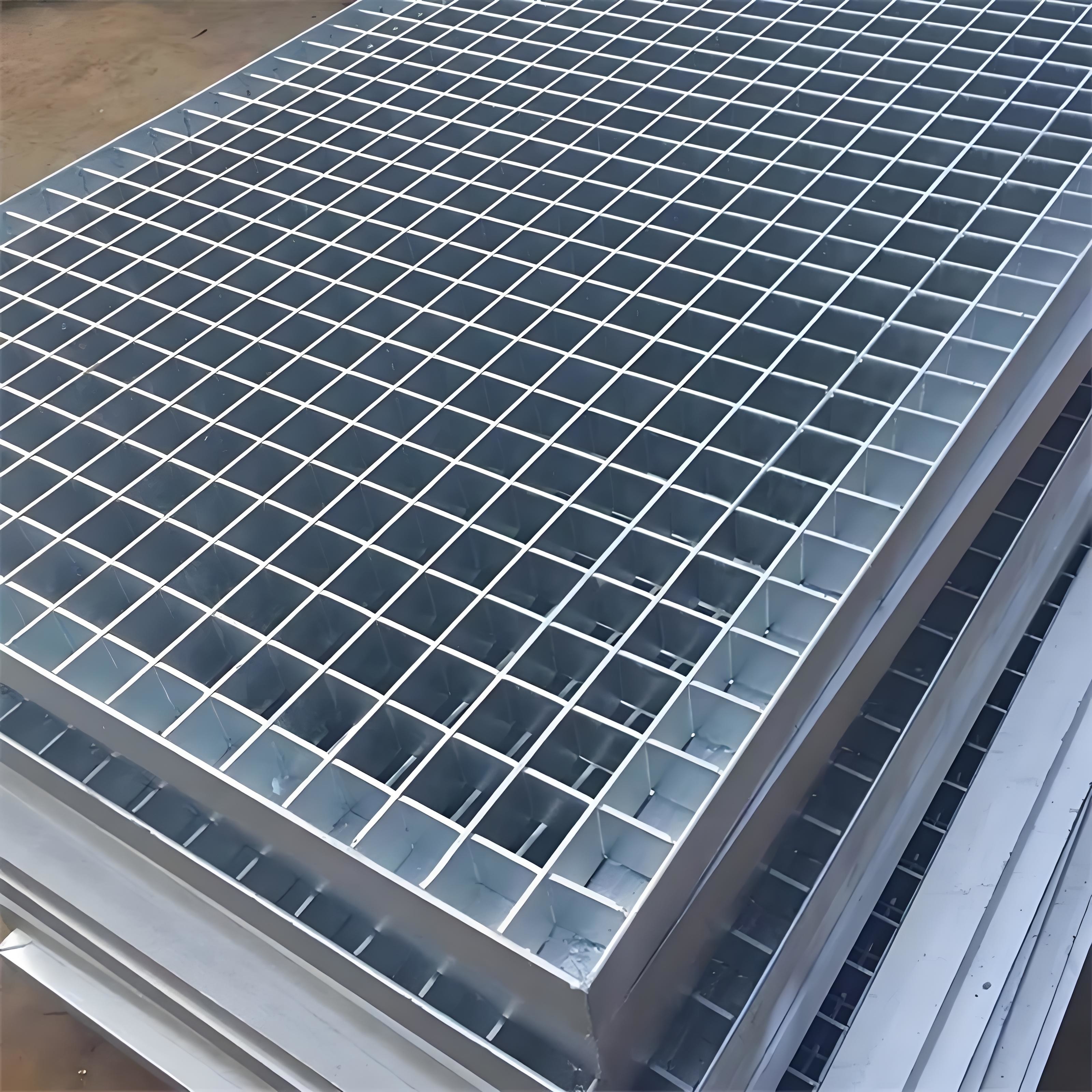

Special Shape Steel Grating 5CM Galvanized Composite Steel Grating
Galvanized Steel Grating Description
Bar Grating brings safety, strength, durability and character when installed in either industrial or architectural applications. It regularly appears on catwalks, factory floors, platforms, railing infill panels and as Stair Treads. A series of bearing bars are welded, swage-locked or press-locked together with perpendicular crossbars to form the panels. Bar Grating is a rugged, high-performance, low-maintenance and slip-resistant product capable of handling pedestrian or vehicular loads. Material types include Aluminum, Carbon Steel, Powder Coated Carbon Steel, Galvanized Steel and Stainless Steel.
Galvanized Steel Grating Specification
Material: steel, aluminum, stainless steel, etc.
Bearing Bar (Width x Thickness): 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10, 100x10mm etc;
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar Pitch: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc.
Twisted Cross Bar Pitch: 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2" & 4" etc
Grating size: 3x20ft,3x24ft,3x30ft,5800x1000, 6000x1000, 6096x1000,6400x1000, as request
Surface Treatment: Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Grating Style: Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Standard: China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),UK: BS4592-1987, Australia: AS1657-1985,Germany: DIN24537-1-2006, Japan: JIS.
| Item | Description |
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc |
| Material Grate | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Type | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
| Application | -Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength . |
Steel Grating Type
Versatile and high quality
Steel grating has been widely used in all walks of life all over the world. Steel grating is mainly used as platform plate, ditch cover, stair tread and building ceiling.
Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and
other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and
other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
Features
1.Resistant to extremely high temperature;
2.Corrosion resistance and alkaline resistance.
3.Anti-rust.
4.Skid resistance.
5.Very rigid surface can stand heavy wear and tear.
Quality Control

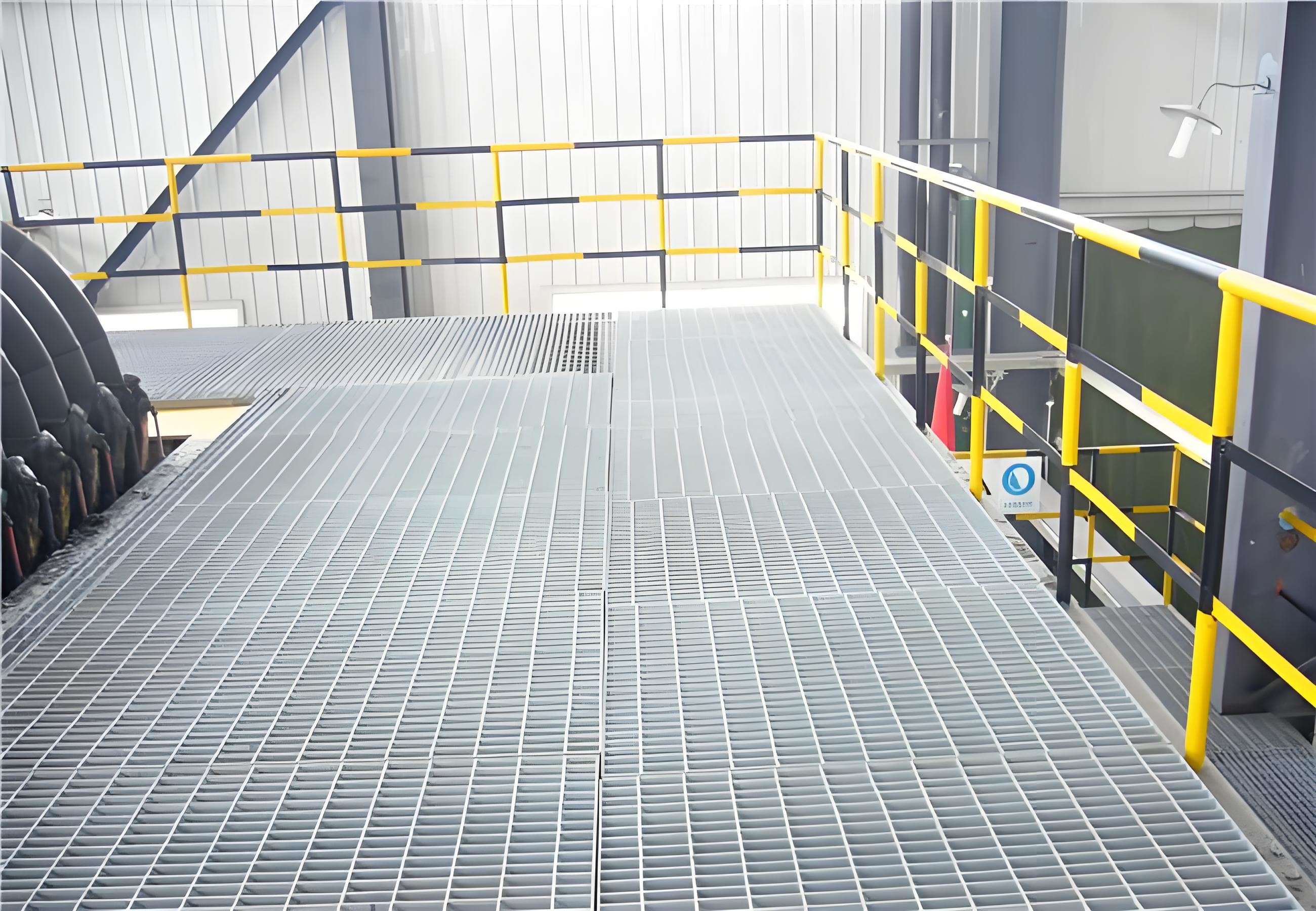

Steel grating application
Application: electro forged step Steel griting are widely used by various plants such as electric power,petroleum,chemical industry,machinery industry,shipbuilding,harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.
It also used in bridges for vehicles and pedestrians.
Packing & Delivery
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
(3) Steel Pallet: Traditional export packing.
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
