Heavy Duty Galvanized Steel Grating 3CM Brico Depot Steel Grates For Driveways Grate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Cross Bar |
| Certificate | ISO9001 | Application | Office Building |
| Brand Name | LaiDi | Warranty | 1 Year |
| Grate Mesh | 40x100mm | Steel Thcikness | 5.0mm |
| Highlight | Heavy Duty Galvanized Steel Grating,Galvanized Steel Grating 3CM,Galvanised Steel Grating |
||
Product Description
Heavy Duty Galvanized Grating 3CM Brico Depot Steel Grates For Driveways Grate
Galvanized Steel Grating Description
The press-lock steel grid is constructed with two close-tolerance slotted bars bonded together
by tremendous hydraulic pressure. And this production can let press-locked grating be a permanent
locking. With high strength and firm structure, it's widely used in industrial factories or parks,
commercial buildings, municipal engineering as stair treads, platforms, walkways, security screens,
tree covers, trench covers, drainage covers and so on.
Only the bearing bars are notched, the cross bars are common plain steel. And they have
different height.
Welded metal grating is joined at the intersection of the bearing bars and cross bars. Welded bar grating is a versatile option for light to moderate loads. When heavy duty loads are present, the Heavy Duty metal grating provides a nice option. This is appropriate for highways, airport runways, bridge floors and all wheel traffic applications.
Light Duty bar grating ranges in size from 3/4" x 3/16" to 2-1/2" x 3/16". Heavy Duty bar grating ranges in size from 1-1/4" x 1/4" to 6" x 1/2"
Galvanized Steel Grating Specification
Material :Mild steel & Low carbon steel, etc.
Surface treatment: hot-dipped galvanized, electric galvanized.
1)Bearing bar shapes: plain or serrated or I bar type.
2)Bearing Bar Pitch (center to center): 30, 40, 60mm are recommended,but we can also do it under customer's request.
3)Bearing Bar (Load Bar) Specifications (mm):The specification(thickness of bearing bar)of plain type and serrated type is 20 x 3 to 100 x 10;
4)Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 etc.
Flat steel: the material is Q235 or stainless steel, there are ordinary plane type, anti-skid tooth type and section I type,
usually specifications are 20*5, 25*5, 30*3, 32*5, 40*5, 40*3, 50*5, 65*5, 100*8, 100*10 and so on.
Rail: material and flat steel, the use of twisted square steel, it is made of the disk by square horizontal drawing and twisting,
its common specifications are 5*5, 6*6, 8*8, etc.
| Material | Low carbon, Middle carbon, stainless steel, Q235 |
| Bearing Bar Type | Flat bar, serrated bar, I bar, etc |
|
Bearing Bar ( Width* Thickness) |
25*3m 25*4, 25*4.5, 25*5, 30*3, 30*4, 30*4.5, 30*5, 32*5, 40*5, 50*5, 65*5, 75*6, 75*10...100*10mm etc; I bar: 25*5*3, 30*5*3, 32*5*3, 40*5*3 etc US standard: 1''*3/16'', 1/4''*3/16'', 1/2''*3/16'', 1''*1/4'', 1/4''*1/4'', 1/2''*1/4'', 1''*1/8'', 1/4''*1/8'', 1/2''*1/8'' etc |
|
Bearing Bar Pitch ( Bearing Bar Spacing) |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross Bar Pitch | 24 to 200mm |
| Cross Bar Size | 6*6, 8*8, 10*10, 12*12mm etc. |
| Surface Treatment | Hot dipped galvanized, painted, self-color, etc. |
Versatile and high quality
Steel grating has been widely used in all walks of life all over the world. Steel grating is mainly used as platform plate, ditch cover, stair tread and building ceiling.
Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and
other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and
other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
Production Process
Features
1.Resistant to extremely high temperature;
2.Corrosion resistance and alkaline resistance.
3.Anti-rust.
4.Skid resistance.
5.Very rigid surface can stand heavy wear and tear.
Steel grating application
• Flooring and Platforms
• Pedestrian ,Walkway and Ramps

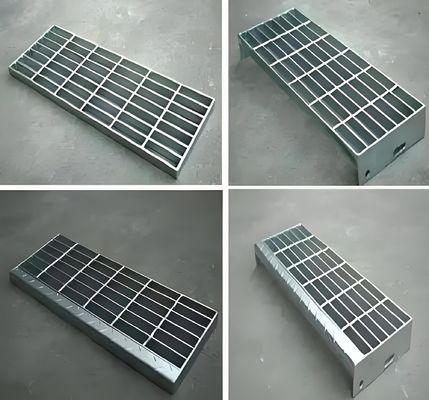

• Stair Treads
• Drain and Manhole Covers
• Trench Grates
• Bridge Decking
Packing & Delivery
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
