Hot Dipped Galvanized Metal Grating 505 Serrated Bar Safety Walkway Steel Grating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Mild Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Plain Bar |
| Certificate | ISO9001 | Application | Office Building |
| Brand Name | LaiDi | Grate Mesh | 30x100mm |
| Steel Thcikness | 3.0mm | Bearing Bar Pitch | 30mm |
| Highlight | Hot Dipped Galvanized Metal Grating,Galvanized Steel Bar Grating,Safety Walkway Steel Grating |
||
Product Description

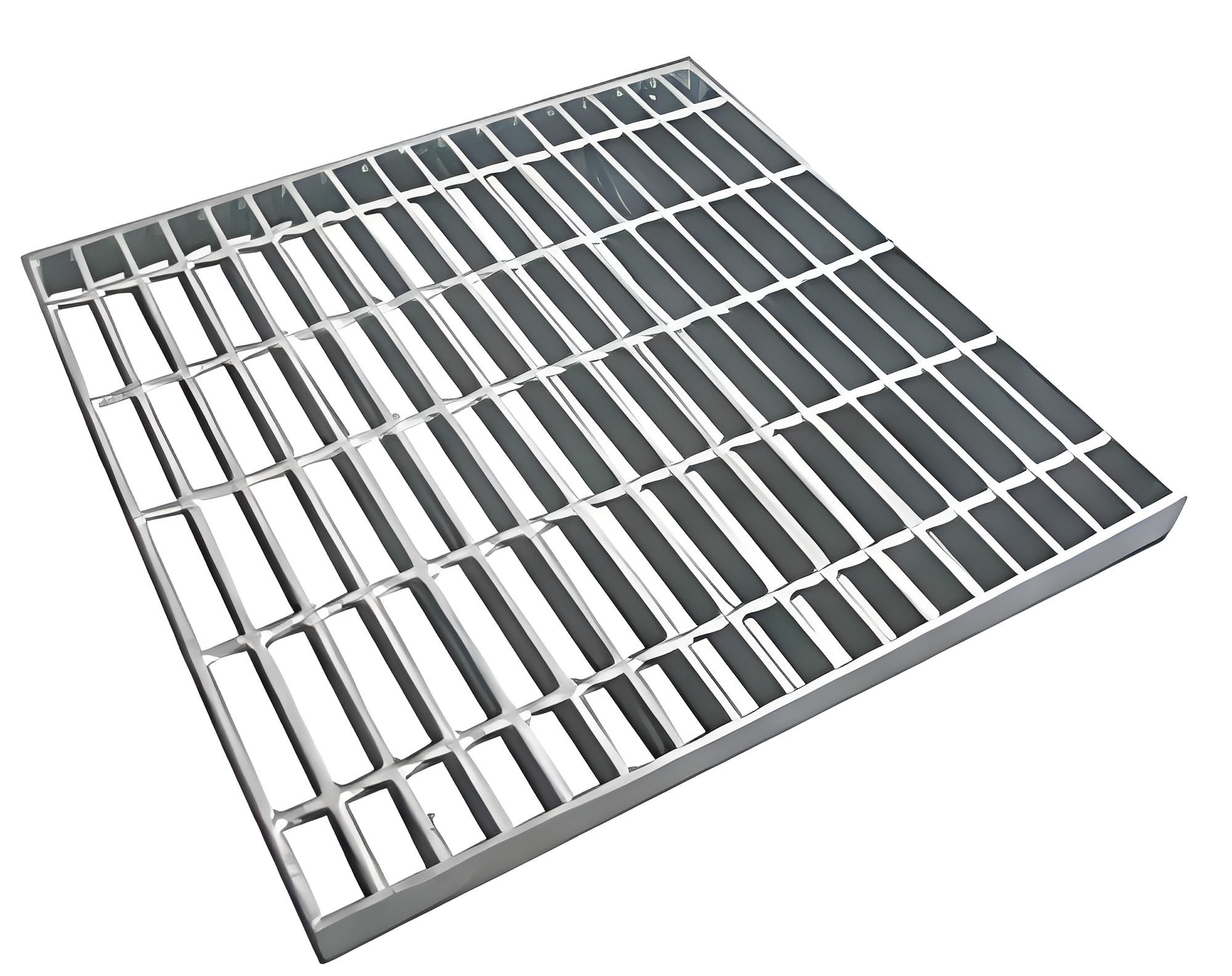

Hot Dipped Galvanized Metal Grating 505 Serrated Bar Safety Walkway Steel Grating
Galvanized Steel Grating Description
The press-lock steel grid is constructed with two close-tolerance slotted bars bonded together
by tremendous hydraulic pressure. And this production can let press-locked grating be a permanent
locking. With high strength and firm structure, it's widely used in industrial factories or parks,
commercial buildings, municipal engineering as stair treads, platforms, walkways, security screens,
tree covers, trench covers, drainage covers and so on.
Only the bearing bars are notched, the cross bars are common plain steel. And they have
different height.
Welded metal grating is joined at the intersection of the bearing bars and cross bars. Welded bar grating is a versatile option for light to moderate loads. When heavy duty loads are present, the Heavy Duty metal grating provides a nice option. This is appropriate for highways, airport runways, bridge floors and all wheel traffic applications.
Light Duty bar grating ranges in size from 3/4" x 3/16" to 2-1/2" x 3/16". Heavy Duty bar grating ranges in size from 1-1/4" x 1/4" to 6" x 1/2"
Galvanized Steel Grating Specification
Material :Mild steel & Low carbon steel, etc.
Surface treatment: hot-dipped galvanized, electric galvanized.
1)Bearing bar shapes: plain or serrated or I bar type.
2)Bearing Bar Pitch (center to center): 30, 40, 60mm are recommended,but we can also do it under customer's request.
3)Bearing Bar (Load Bar) Specifications (mm):The specification(thickness of bearing bar)of plain type and serrated type is 20 x 3 to 100 x 10;
4)Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 etc.
Flat steel: the material is Q235 or stainless steel, there are ordinary plane type, anti-skid tooth type and section I type,
usually specifications are 20*5, 25*5, 30*3, 32*5, 40*5, 40*3, 50*5, 65*5, 100*8, 100*10 and so on.
Rail: material and flat steel, the use of twisted square steel, it is made of the disk by square horizontal drawing and twisting,
its common specifications are 5*5, 6*6, 8*8, etc.
| Item | Description |
| Bearing bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
| Bearing bar pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Cross bar pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc |
| Material Grate | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| Surface treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Type | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS |
| Application | -Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength . |

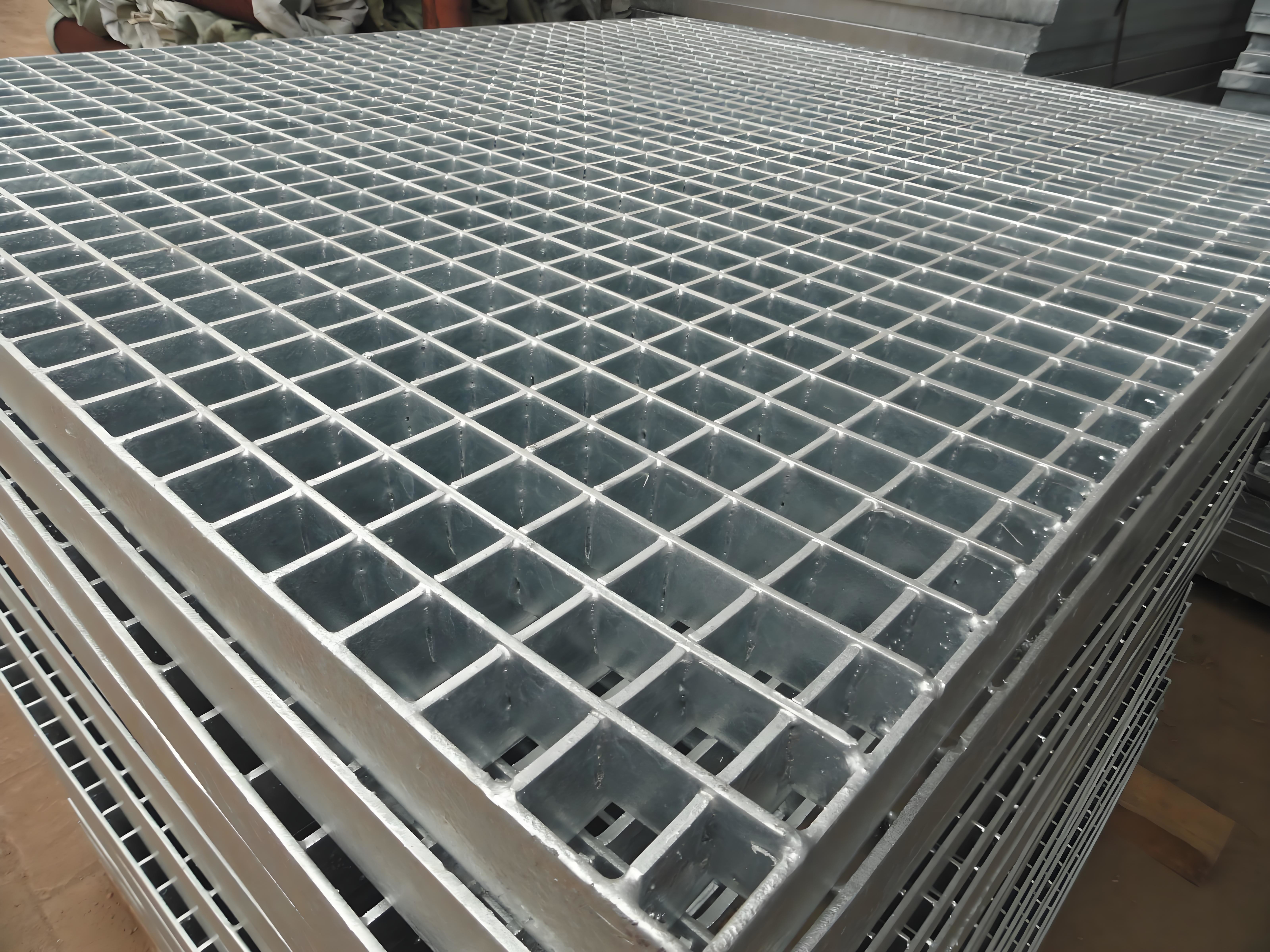

Steel Grating Type
Versatile and high quality

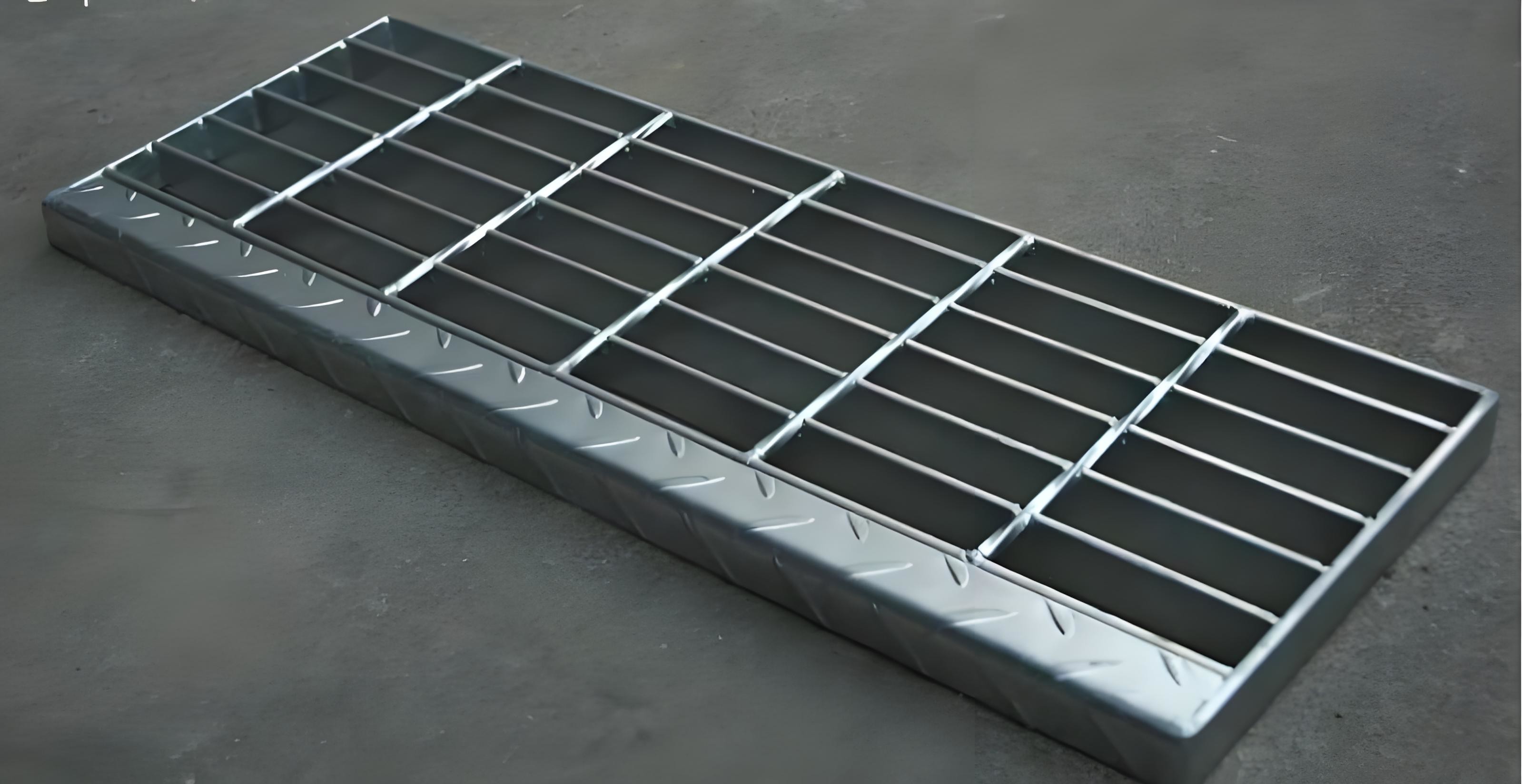

Steel grating has been widely used in all walks of life all over the world. Steel grating is mainly used as platform plate, ditch cover, stair tread and building ceiling.
Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and
other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and
other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
Features
1.Resistant to extremely high temperature;
2.Corrosion resistance and alkaline resistance.
3.Anti-rust.
4.Skid resistance.
5.Very rigid surface can stand heavy wear and tear.
Quality Control
Steel grating application
Application: electro forged step Steel griting are widely used by various plants such as electric power,petroleum,chemical industry,machinery industry,shipbuilding,harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.
It also used in bridges for vehicles and pedestrians.

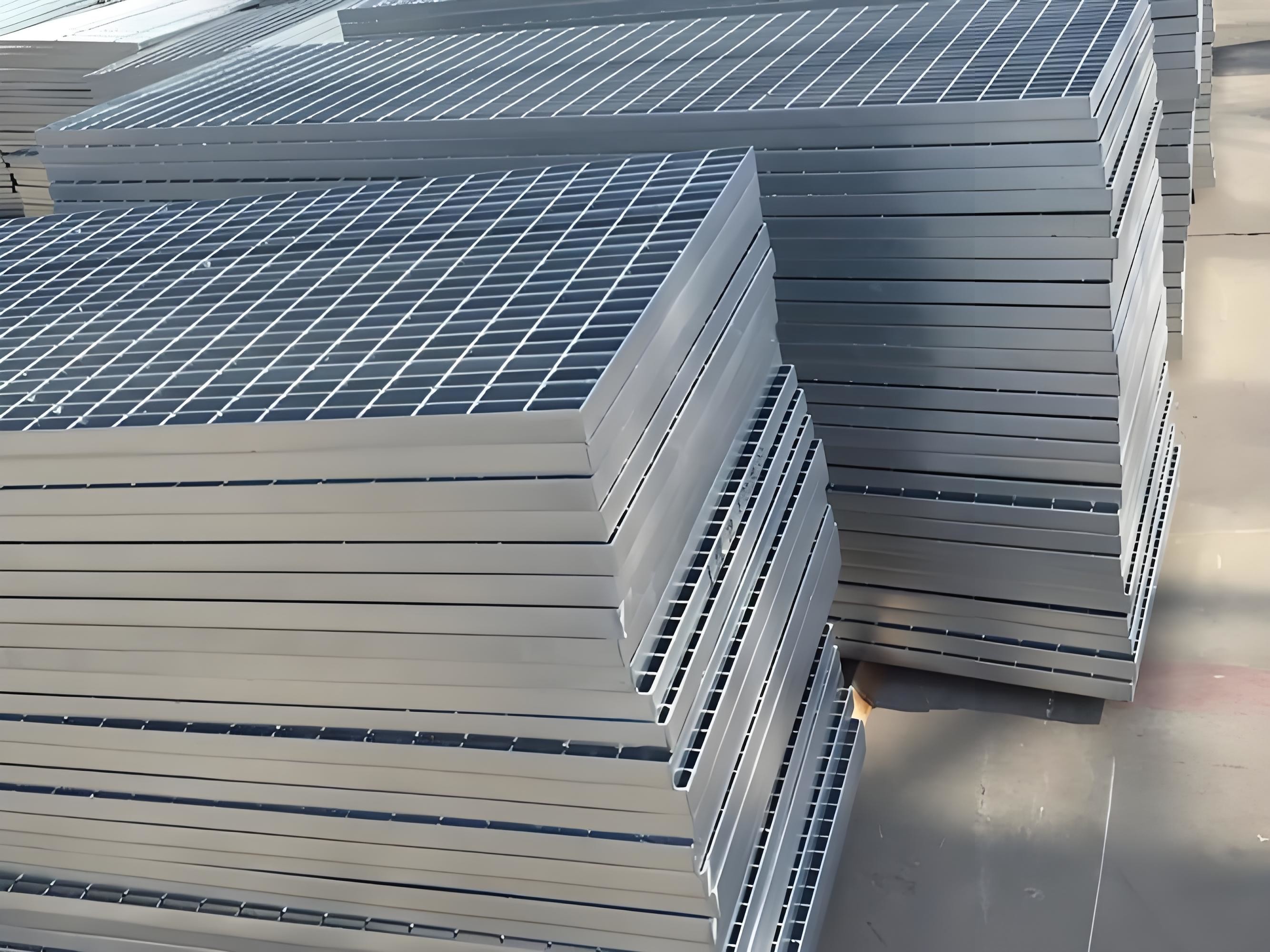

Packing & Delivery
(1) Bandage and Paperboard: Generally applies to neat steel plate;
(2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
(3) Steel Pallet: Traditional export packing.
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
