Light Duty Galvanized Steel Grating 0.5x1M Welded Floor Bar Grating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Plain Bar |
| Certificate | ISO9001 | Application | Office Building |
| Brand Name | LaiDi | Warranty | 1 Year |
| Grate Mesh | 30x100mm | Steel Thcikness | 3.0mm |
| Highlight | Light Duty Galvanized Steel Grating,Light Duty Galvanized Floor Grating,Welded Floor Bar Grating |
||
Product Description
Light Duty Galvanized Steel Grating 0.5x1M Welded Floor Bar Grads
Galvanized Steel Grating Description
HOT DIP GALVANIZED Carbon Steel bar grating is a nice choice when your project requires a strong material and you are not going to expose the metal grating to an expressly corrosive environment. Choose from plain or serrated bar grating surfaces, galvanized, bare steel or painted finshes. Bar grating is available as Light or Heavy Duty Welded grating. Great for industrial steel flooring and metal grates.
Welded metal grating is joined at the intersection of the bearing bars and cross bars. Welded bar grating is a versatile option for light to moderate loads. When heavy duty loads are present, the Heavy Duty metal grating provides a nice option. This is appropriate for highways, airport runways, bridge floors and all wheel traffic applications.
Light Duty bar grating ranges in size from 3/4" x 3/16" to 2-1/2" x 3/16". Heavy Duty bar grating ranges in size from 1-1/4" x 1/4" to 6" x 1/2"
Galvanized Steel Grating Specification
Material :Mild steel & Low carbon steel, etc.
Surface treatment: hot-dipped galvanized, electric galvanized.
1)Bearing bar shapes: plain or serrated or I bar type.
2)Bearing Bar Pitch (center to center): 30, 40, 60mm are recommended,but we can also do it under customer's request.
3)Bearing Bar (Load Bar) Specifications (mm):The specification(thickness of bearing bar)of plain type and serrated type is 20 x 3 to 100 x 10;
4)Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 etc.
Flat steel: the material is Q235 or stainless steel, there are ordinary plane type, anti-skid tooth type and section I type,
usually specifications are 20*5, 25*5, 30*3, 32*5, 40*5, 40*3, 50*5, 65*5, 100*8, 100*10 and so on.
Rail: material and flat steel, the use of twisted square steel, it is made of the disk by square horizontal drawing and twisting,
its common specifications are 5*5, 6*6, 8*8, etc.
| Specifications of steel gratings: | ||
| No | Item | Description |
| 1 | Bearing bar of steel grating | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| 2 | Bearing bar pitch of steel grating | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 3 | Cross bar of steel grating | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| 4 | Cross bar pitch of steel grating | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as your requirement. |
| 5 | Surface treatment of steel grating | Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, |

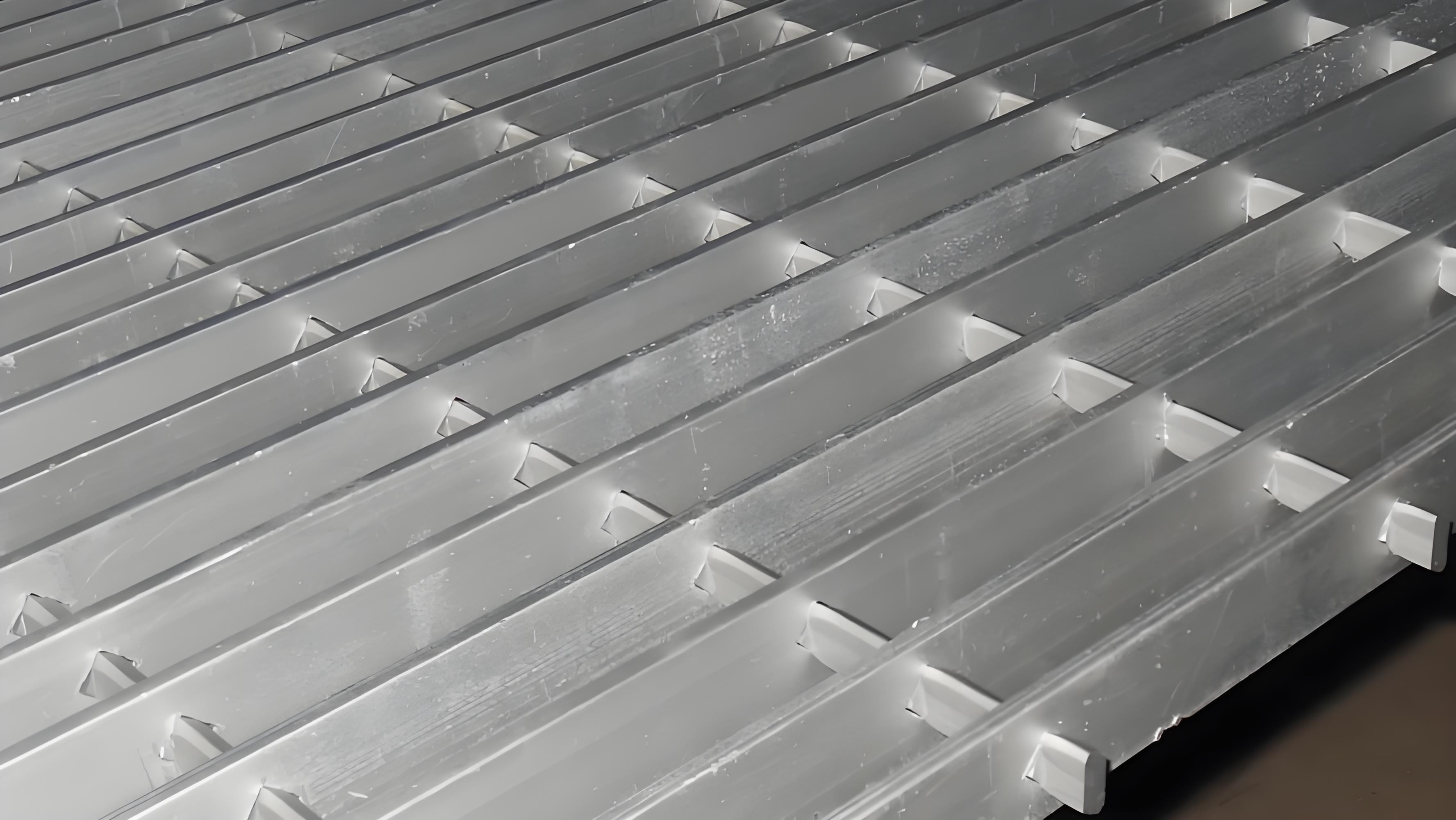

| 6 | Flat bar type of steel grating | Plain, Serrated (tooth-like), I bar (I section) |
Steel Grating Type
Versatile and high quality

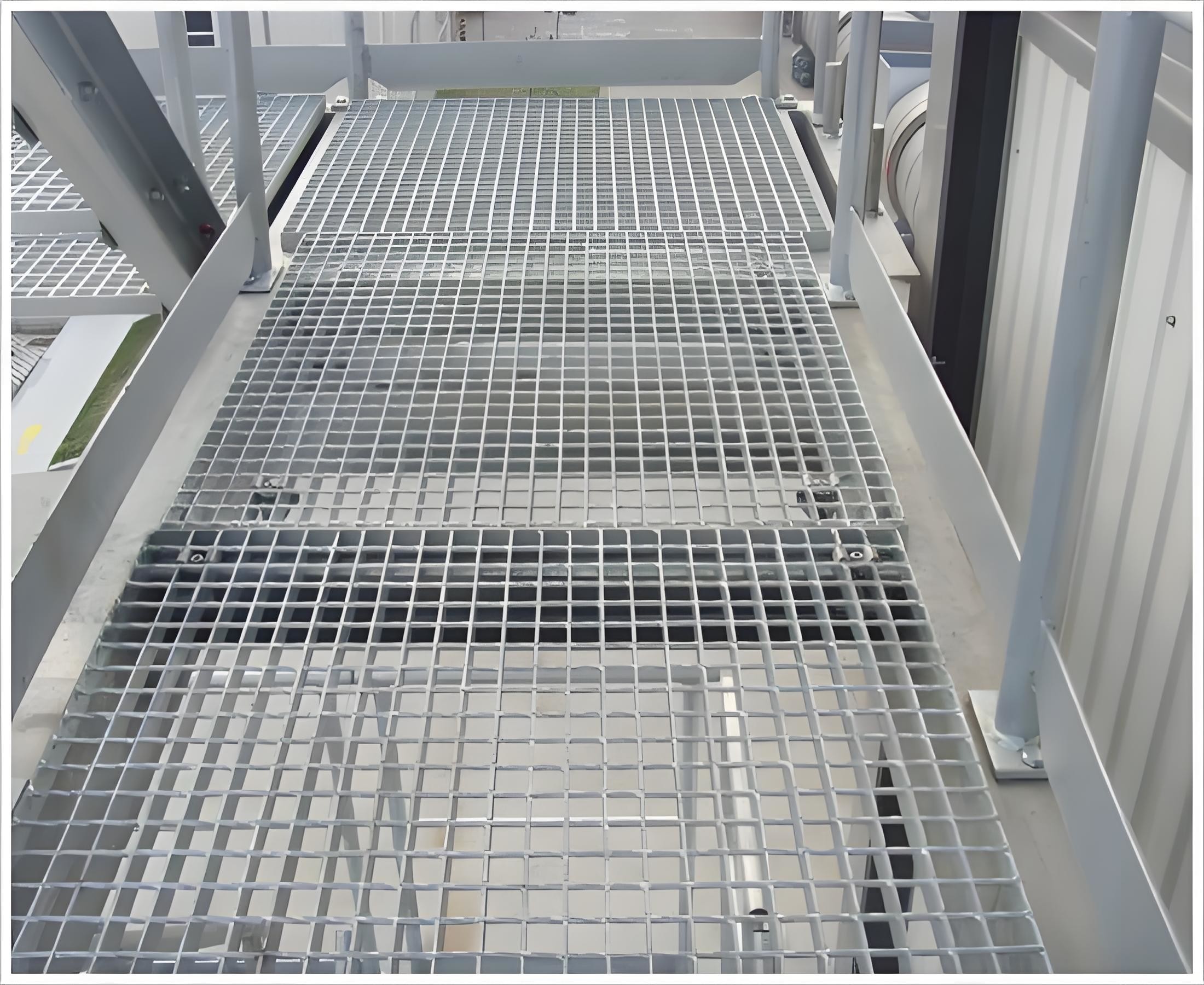

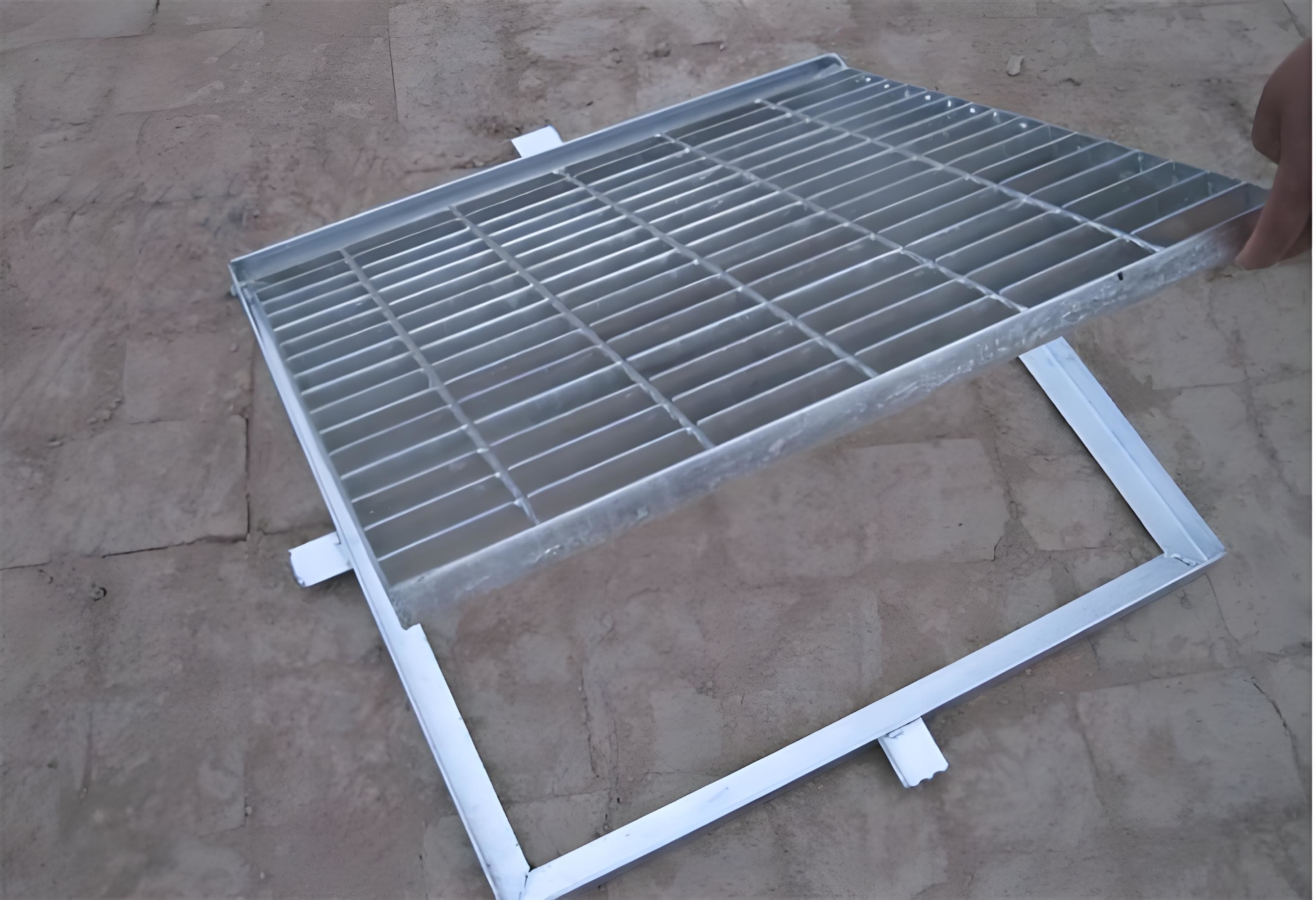

Steel grating has been widely used in all walks of life all over the world. Steel grating is mainly used as platform plate, ditch cover, stair tread and building ceiling.
Steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and
other processes. The products enjoy the features of high strength, light structure, high bearing, convenience for loading and
other properties. The hot dipped zinc coating gives the product excellent anti-corrosion resistance.
Steel grating application
Application: electro forged step Steel griting are widely used by various plants such as electric power,petroleum,chemical industry,machinery industry,shipbuilding,harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.
It also used in bridges for vehicles and pedestrians.

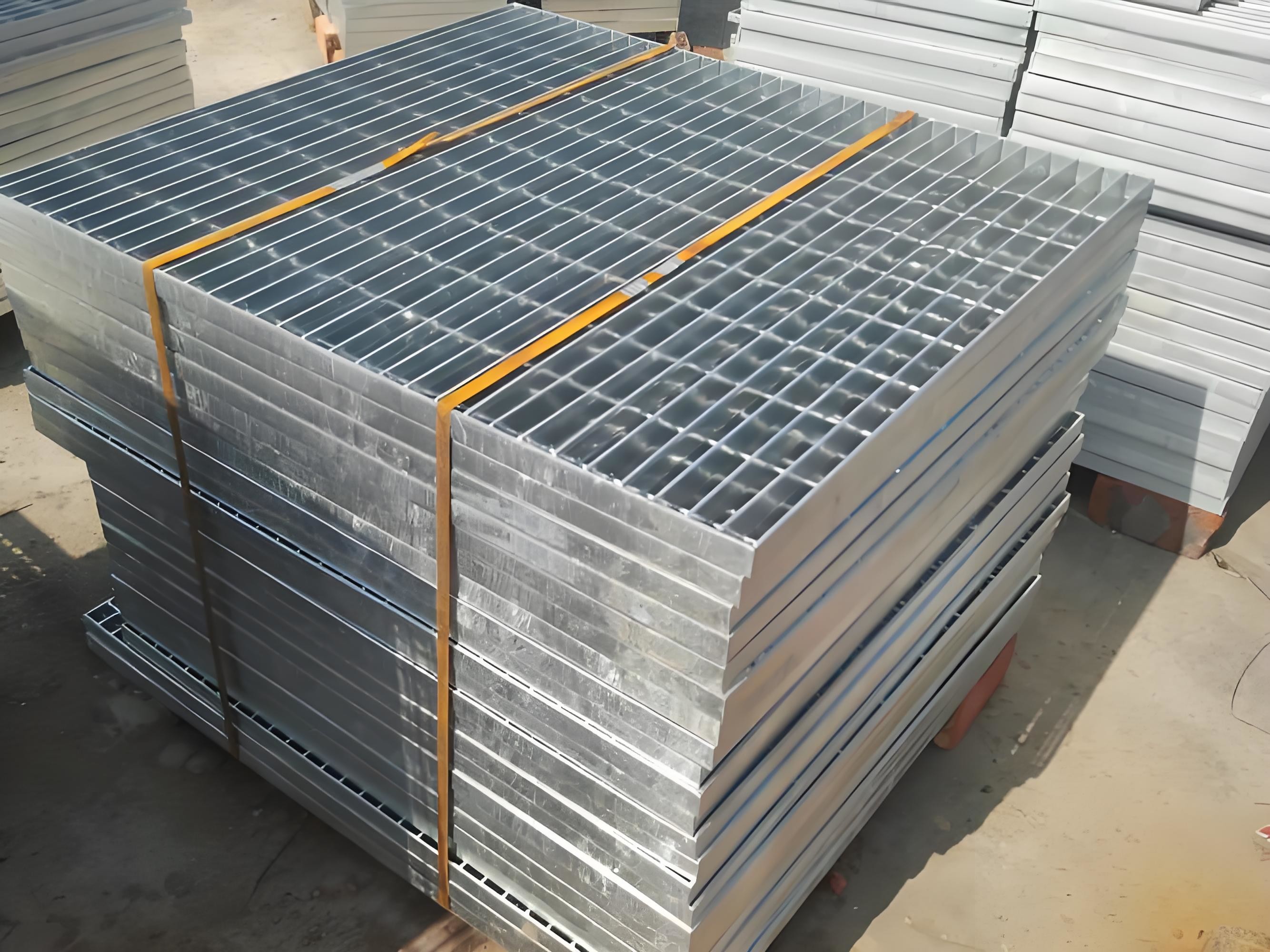

Packing & Delivery
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
