Yellow V Mesh Security Fence Hot Dipped Galvanized Metal Fence Panels
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3D Wire Mesh Fence | Material | Q235 |
|---|---|---|---|
| Place Of Origin | Hebei, China | Usage | Curved Fence |
| Service | Video Of Installation | Frame Finishing | Hot Dipped Galvanized |
| Certificate | ISO9001 | Wire Diameter | 3.0-6.0mm |
| Panel Height | 1.0-2.0m | Panel Length | 2.5-3.0m |
| Package | Pallet | Post Shape | Peach Post. Square Post |
| Highlight | Yellow V Mesh Security Fence,Galvanized V Mesh Security Fence,Hot Dipped Galvanized Metal Fence Panels |
||
Product Description

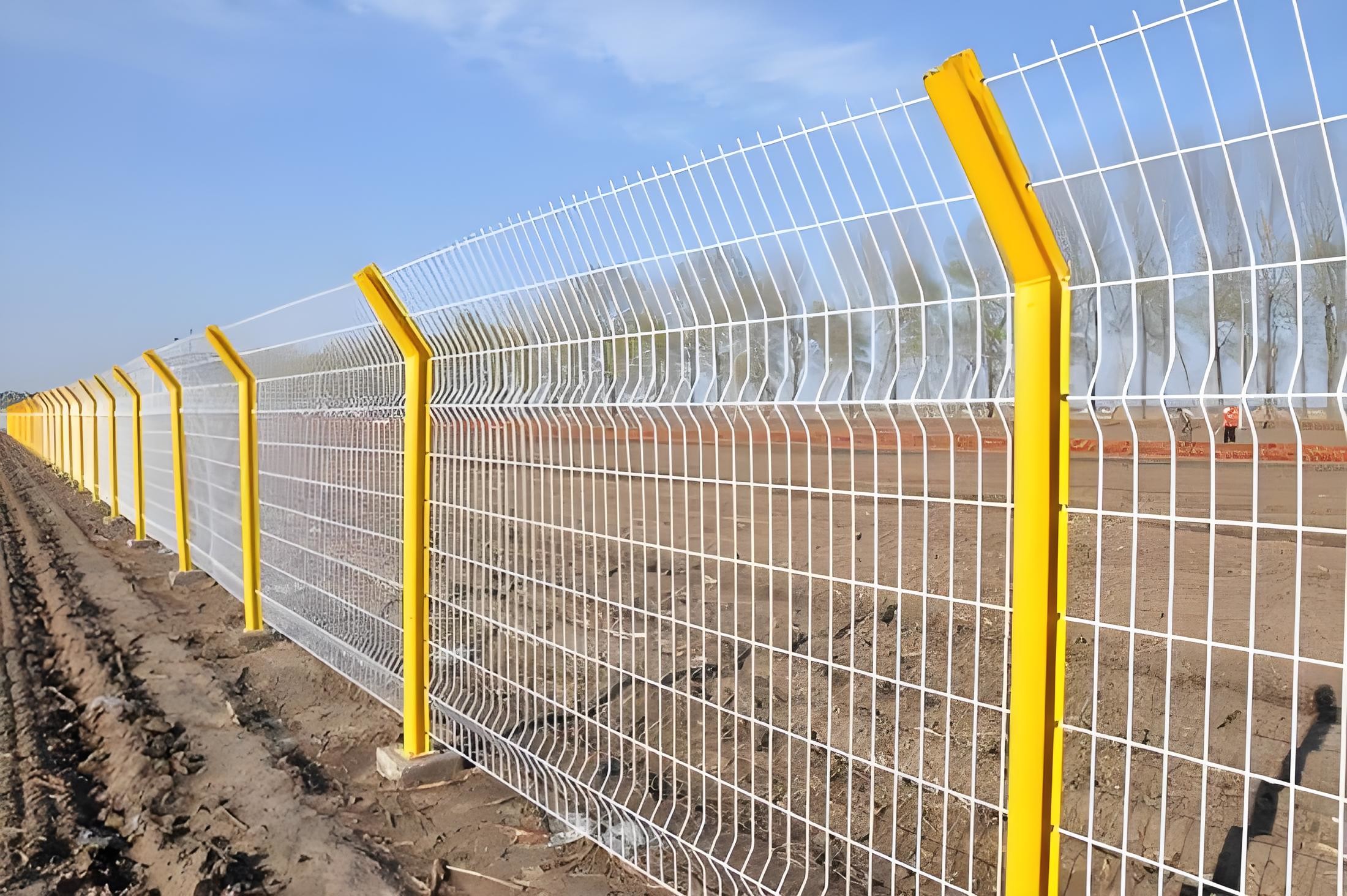

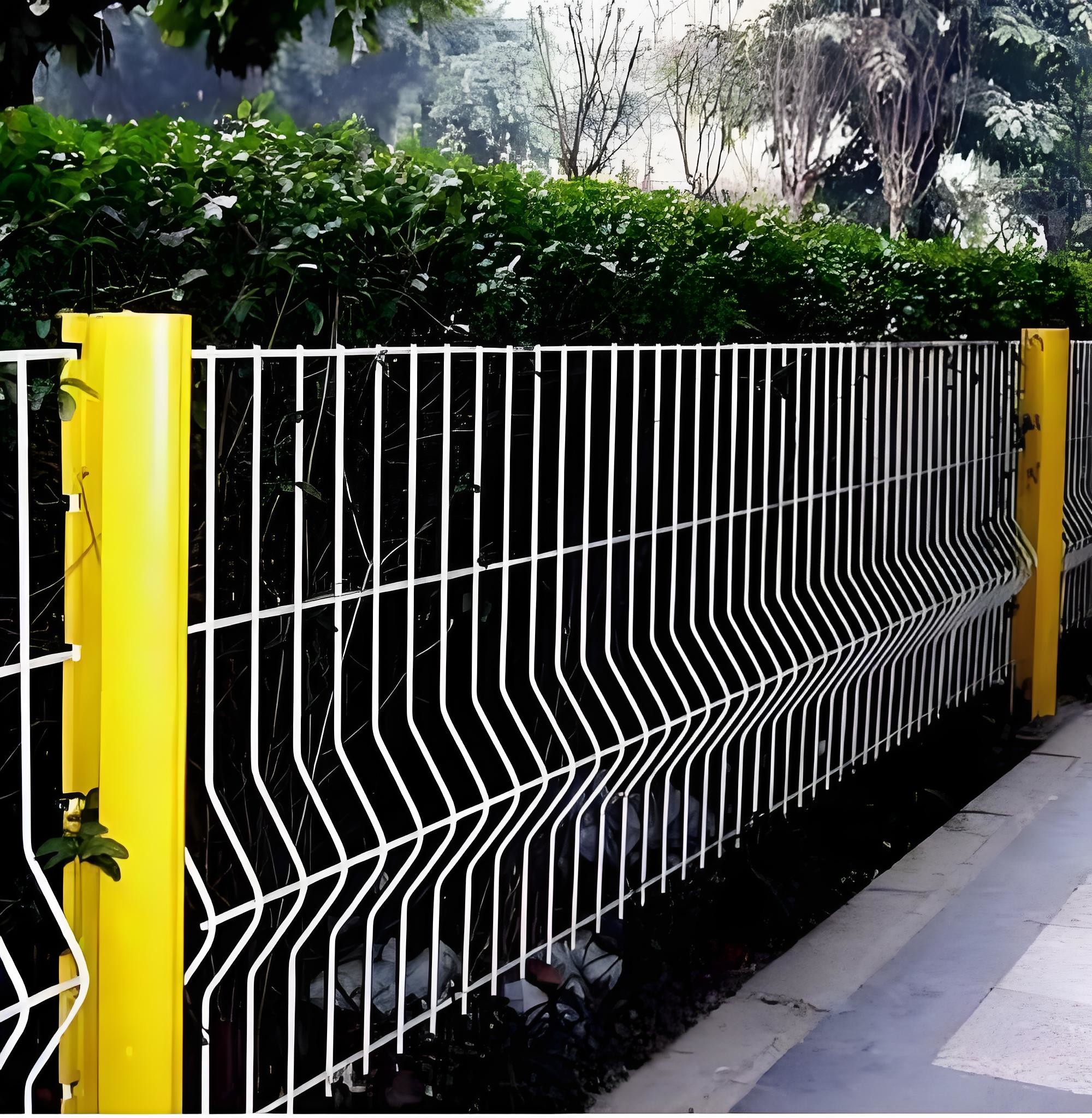

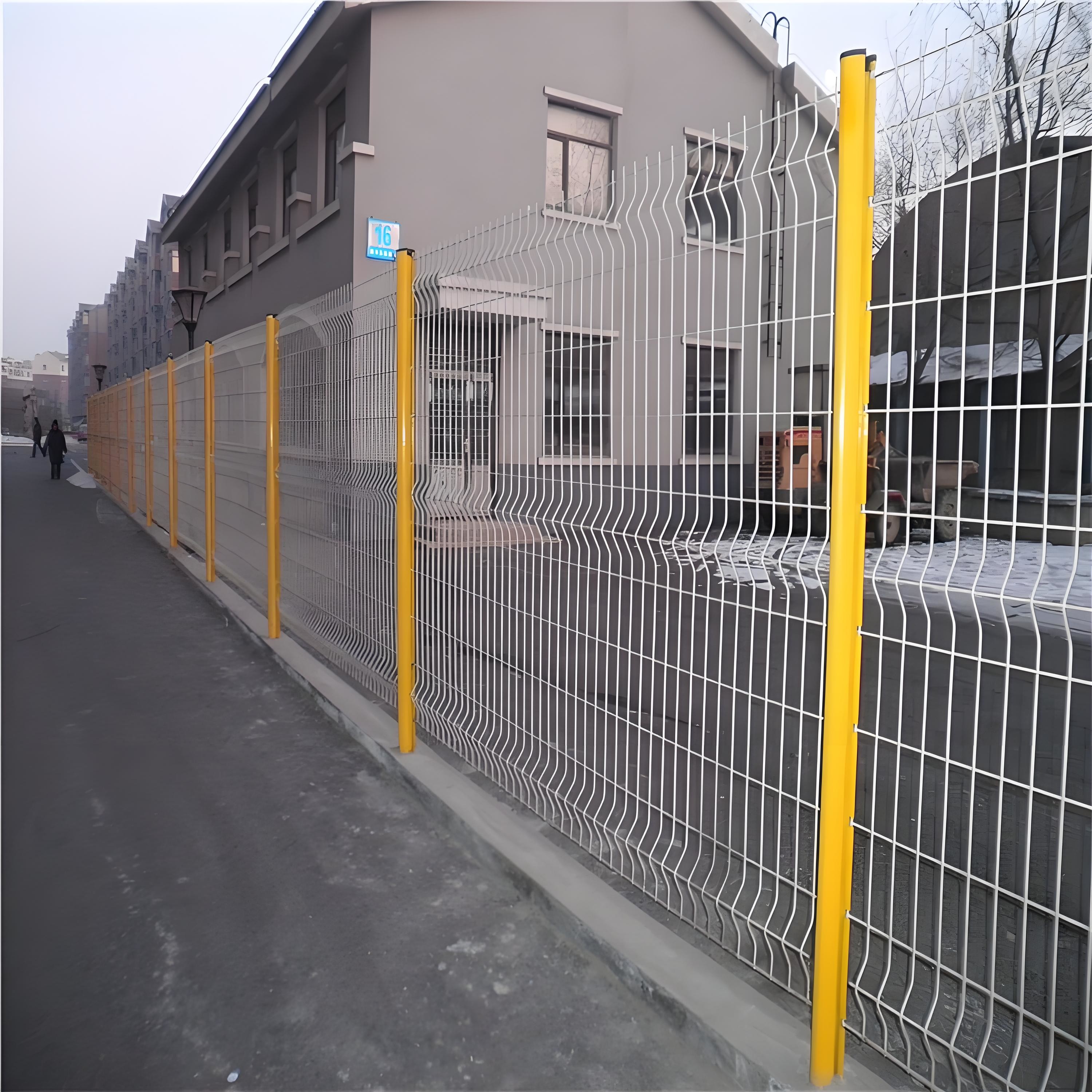

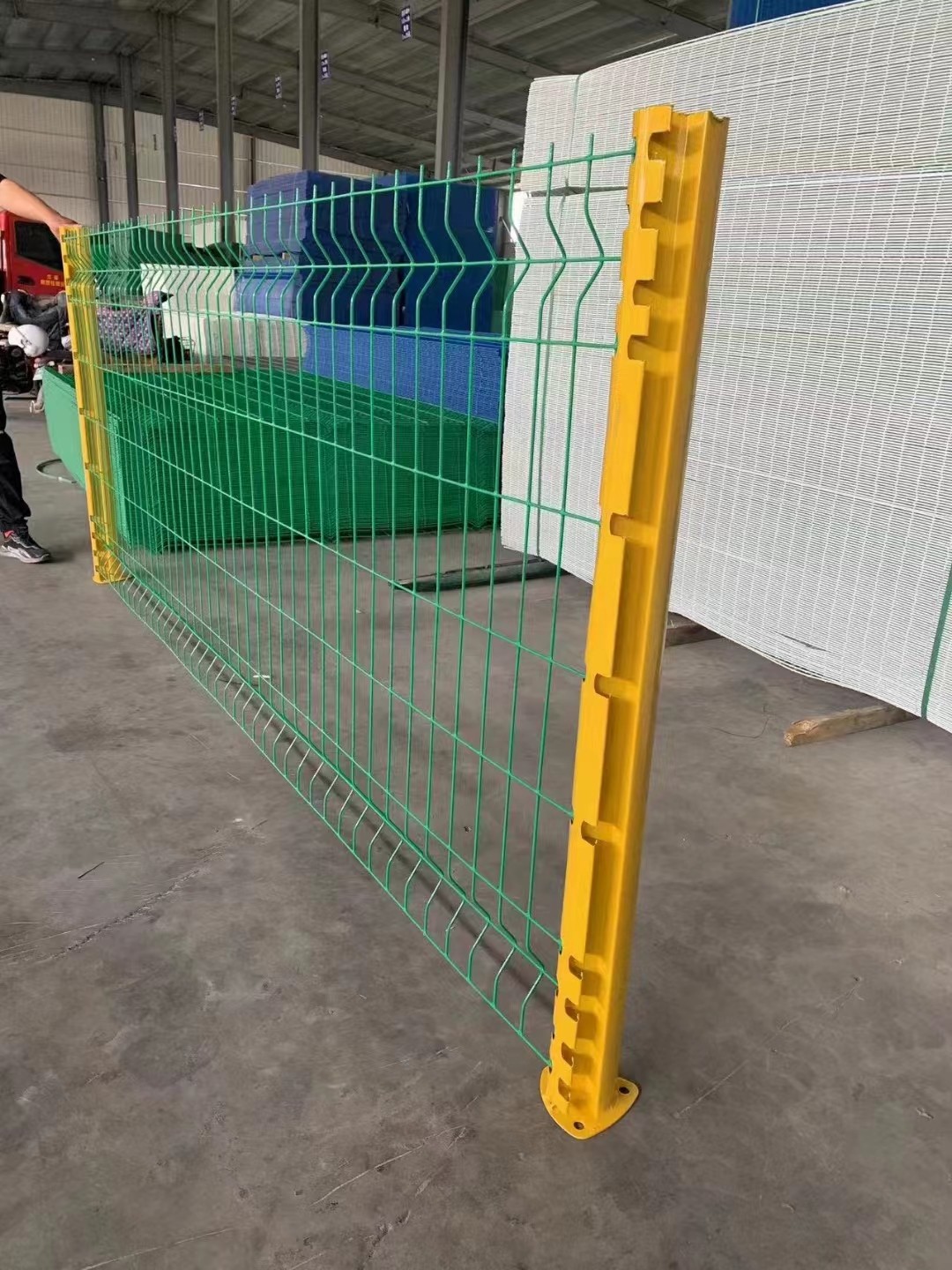

Yellow Curved 3D Wire Mesh Fence Hot Dipped Galvanized Metal Fence Panel
3D Wire Mesh Fence Description
Welded wire mesh fence panel is one of the most important ways to keep your home safe and secured from all forms of attacks by armed robbers and so on.
Welded wire mesh fence panel is very affordable and inexpensive that is why we see most homes using wire fencing for their walls and also very durable and easy to make and fix on fences.
Widely used for prevention for road, highway, railway, garden, airport, residential district, seaport, feeding and husbandry
3D Wire Mesh Fence Specification
1.Wire Mesh Fence Material:
high quality low carbon steel wire Q235,Q195
2.Wire Mesh Fence Process:
material---straighten and cutting---welded---making folds---parkerising---galvanized/hot-dipped---PVC coated--packing
3.Wire Mesh Fence Colors:
green(RAL6005), white(RAL9010), gery(RAL7004)yellow(RAL1021), black (RAL9005), blue(RAL5005), etc as your request
4.Wire Mesh Fence Common specification:
| Height | Wire diameter | Mesh opening | Bending mesh | Panel width | Post type | |
| 830mm | 3.0mm-6.0mm |
50*100mm 55*100mm 50*200mm 55*200mm |
50*200mm 55*200mm 50*100mm 55*100mm |
2.5m or 3.0m |
Type 1 SHS TUBE |
50*50mm 60*60mm 80*80mm 100*100mm |
| 1030mm | ||||||
| 1230mm | ||||||
Type 2 RHS TUBE |
40*60mm 40*80mm 60*80mm 80*100mm |
|||||
| 1430mm | ||||||
|
1530mm |
||||||
Type 3 Round Pipe |
∅42mm ∅48mm ∅60mm ∅75mm |
|||||
| 1730mm | ||||||
| 1830mm | ||||||
| 2030mm | Type 4 Peach post |
50*70mm 70*100mm |
||||
| 2430mm | ||||||
| 2530mm | ||||||
| Surface treatment: 1: hot dipped galvanized after welding 2: galvanized and electrostatic polyester powder coated 3: galvanized and PVC coated |
||||||
Panels
Welded Wire Mesh Fence Panels have a width of 2500mm and heights ranging from 600mm to 2440mm. The Welded Mesh Fence Panels have vertical barbs of 30mm on one side and are reversible (barbs at top or at bottom). Mesh sizes are 200 x 50mm , and 100mm x 50mmfor the beam sections. The heavy wires guarantee strength and rigidity.Different sizes can be made according to customer detailedrequirements.
Posts
The Welded Mesh Fence Panels are attached with high strength steel posts. The common posts of the Welded Fence are SHS tube, RHS
tube, Peach post, Round pipe or Special-shaped post. Welded Mesh Fence Panels will be fixed to the post by suitable clips
according to different post type.
Gates
The Fence System includes the availability of swing, slide and cantilever gates.
Colors
Linkland welded mesh fence can supply all colors according to international standard RAL Colors, the popular colors as below:
After-sales service
Our after-sales service start immediately after signing the contract.
1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is
no inspection from the third-party.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
FAQ
Question 1: Can you express a free sample first?
Answer 1: Yes. Welcome to chat with our sales for more details. We always express the sample with charged.
Question 2: What is your delivery time?
Answer 2: It is about 15 to 25 days after receiving your 30% deposit.
Question 3: Is that a real factory?
Answer 3: Yes. We have manufactured and exported wire mesh since 2013.
Question 4: What is the payment terms?
Answer 4: There is available by T/T or by Irrevocable L/C at sight.
Question 5: How can I get the quotation?
Answer 5: You can contact us as follows.
Product Quality Contorl
Packing & Delivery
1.Fence panel: plastic film / wooden case + metal/wooden pallet.2.Fence post: plastic bag + metal/wooden pallet (with rainhat installed).
3.Fence accessories: plastic bag + carton box (clips & screws).
Accessories come in different types and materials and can be selected as needed.No special attachment for piping installation, use
propulsion device, easy to grip, fast, reduce cost.
