1.5M Galvanized Cattle Panels , Metal Livestock Panels For Farm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cattle Wire Mesh Fence | Place Of Origin | Hebei, China |
|---|---|---|---|
| Material | Galvanized Wire | Surface Treatment | Galvanized |
| Packing | Metal Pallet | Loading Port | Tianjin Port |
| Height | 1.5m | Length | 100m |
| Key Word | Farm Fence | Fence Style | Woven |
| Wire Diameter | 2.0mm | M.O.Q. | 1000 |
| Highlight | 1.5M Galvanized Cattle Panels,Galvanized Metal Livestock Panels,Farm Metal Livestock Panels |
||
Product Description
1.5M Galvanized Cattle Panels - Metal Livestock Panels For Farm
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Cattle Wire Mesh Fence |
| Place of Origin | Hebei, China |
| Material | Galvanized wire |
| Surface Treatment | Galvanized |
| Packing | Metal Pallet |
| Loading Port | Tianjin Port |
| Height | 1.5m |
| Length | 100m |
| Fence Style | Woven |
| Wire Diameter | 2.0mm |
| M.O.Q. | 1000 |
Product Description
Our 1.5M Galvanized Cattle Panels are high-quality livestock fencing solutions made from durable carbon steel with galvanized surface treatment for superior corrosion resistance. These versatile panels are ideal for containing cattle, horses, sheep, and deer on farms and ranches.
Key Features
- Constructed from low carbon galvanized wire or hot-dipped galvanized high carbon wire
- Available in electro-galvanized or hot-dipped galvanized surface treatments
- Mesh wire diameter options from 1.8mm to 2.5mm
- Edge wire diameter options from 2.0mm to 3.4mm
- Customizable heights from 0.9m to 2.0m (standard 1.5m)
- Lengths available from 50m to 100m (custom lengths available)
- High strength construction for long service life
- Easy installation with minimal maintenance requirements
Technical Specifications
| No. | Type | Line Wire Space (mm) | Weight (kg) |
|---|---|---|---|
| 1 | 7-80-15 | 102+114+127+140+152+178 | 19.3 |
| 2 | 8-80-15 | 89+89+102+114+127+140+152 | 20.8 |
| 3 | 8-90-15 | 89+102+114+127+140+152+178 | 21.6 |
| 4 | 8-100-15 | 102+114+127+140+152+178+203 | 22.6 |
| 5 | 8-115-15 | 114+127+140+152+178+203+229 | 23.6 |
| 6 | 9-100-15 | 89(75)+89+102+114+127+140+152+178 | 23.9 |
| 7 | 9-125-15 | 102+114+127+140+152+178+203+229 | 26 |
| 8 | 10-120-15 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 |
| 9 | 10-135-15 | 89+102+114+127+140+152+178+203+229 | 28.4 |
| 10 | 11-140-15 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 |
Note: Special types can be manufactured according to client specifications.
Wire Specifications
| Fiber Type | Diameter (mm) | Tensile Strength | Hardness | Zinc (gr Zn/m²) |
|---|---|---|---|---|
| Edge fiber | 2.0-3.4 | 300N-1300N | Hard | 40-240 |
| Vertical fibers | 1.8-2.5 | 218-244 | Soft | 40-240 |
| Horizontal fibers | 1.8-2.8 | 300N-1300N | Hard | 40-240 |
Applications
- Fixed knot fence systems
- Hinge joint fencing
- Square deal knot fencing
- Diamond mesh fencing
- Woven wire fencing
- Farm and ranch enclosures
- Livestock containment
- Pasture and grazing management
- Forest and property boundaries
Our Services
- Prompt response to all inquiries within 12 hours
- Sample production and delivery services available
- OEM/ODM services including custom designs and materials
- Custom branding options with printed logos
- Tailored packaging solutions
- Comprehensive after-sales service and support
- Rigorous quality control with factory testing before shipment
Frequently Asked Questions
Are you a manufacturer?
Yes, we have specialized in wire mesh products for over 20 years.
Is customization available?
Yes, we can manufacture products according to your detailed specifications and drawings.
Can I get product samples?
Yes, we provide free samples upon request.
What are your payment terms?
Standard terms are 30% deposit with 70% balance paid before shipment.
What is your delivery timeline?
Stock items ship within 7 working days after deposit. Custom orders typically require 20-30 days for production.

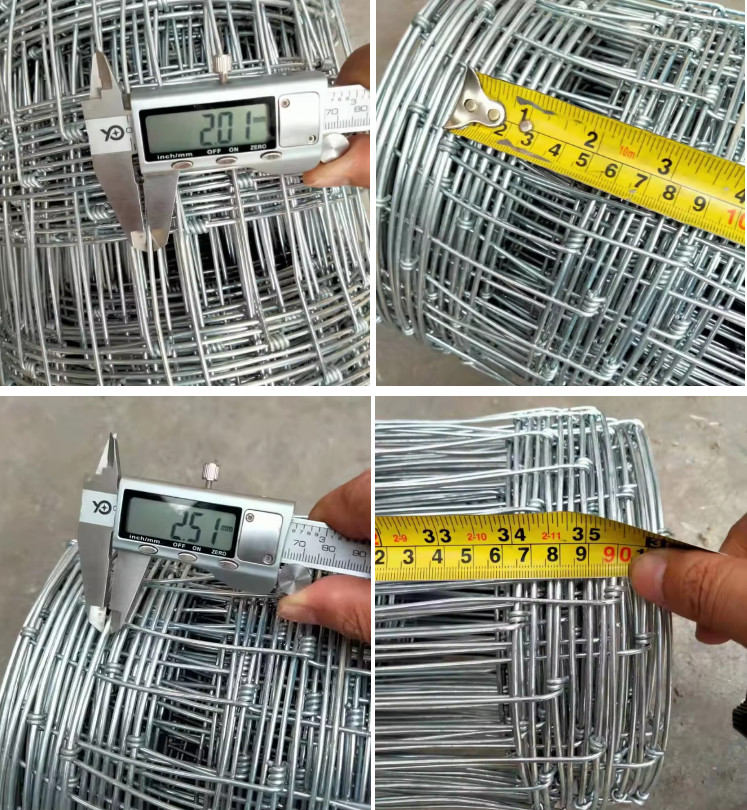

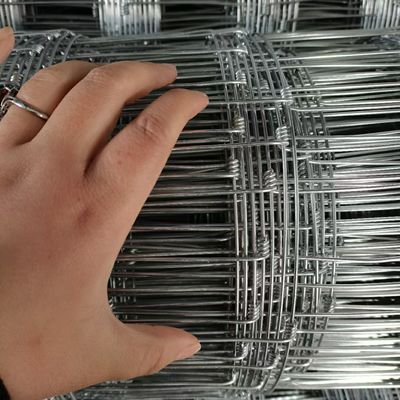

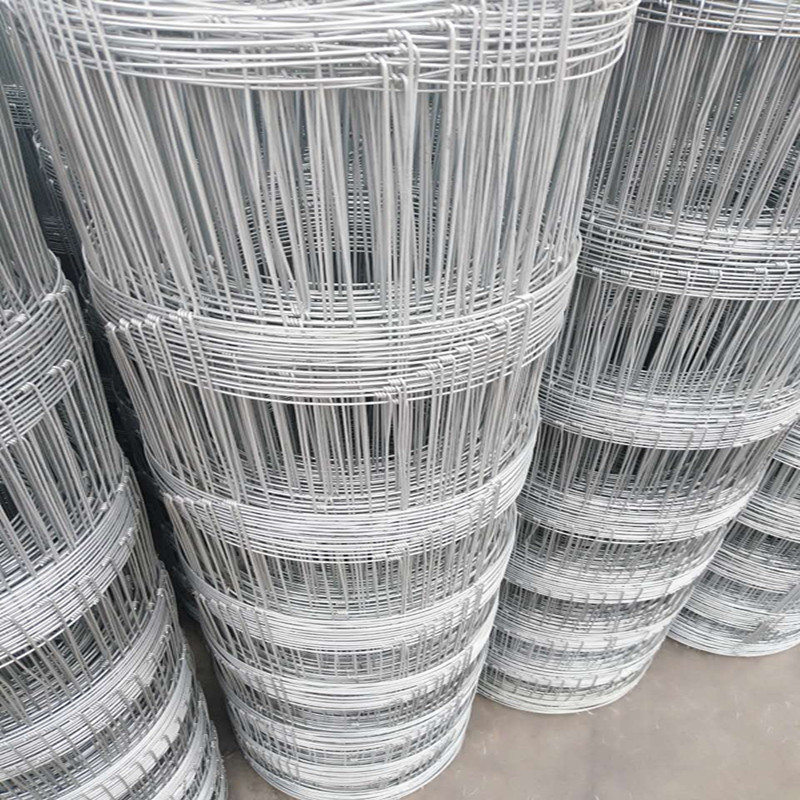

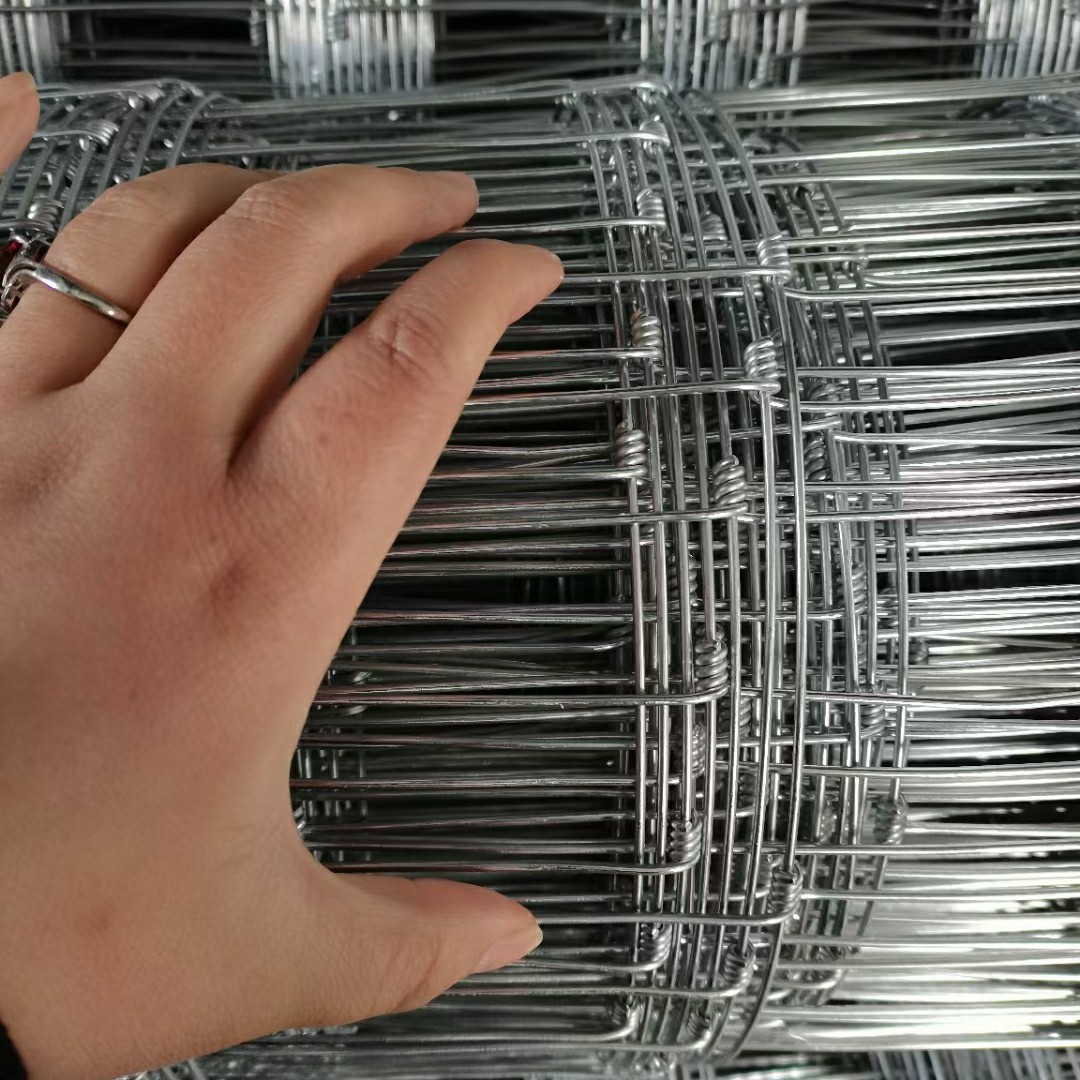

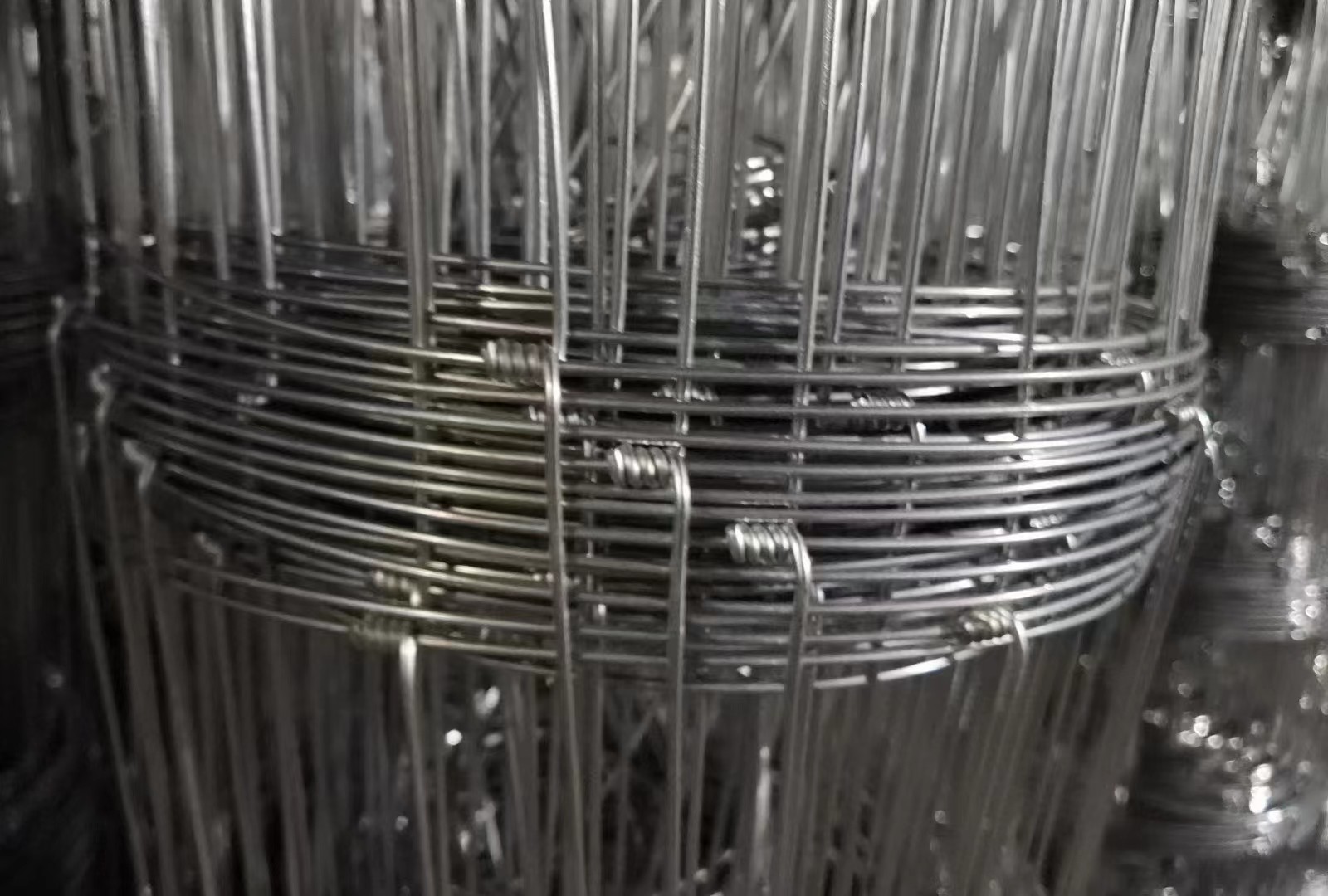

Product Images
