358 Anti-Climb Security Fence 5ft PVC Coated Welded Fence Panel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Anti Climb Fence | Usage | Security Fence |
|---|---|---|---|
| Material | Low Carbon Steel | Surface Treatment | Powder Coated |
| Color | Dark Green | Certificate | ISO9001 |
| Place Of Origin | Hebei, China | Loading Port | Tianjin Port |
| Wire Thickness | 3.5mm | Mesh Opening | 12.7x76.2mm |
| Post Size | 60x60mm | Service | Video Of Installation |
| Highlight | 358 Anti-Climb Security Fence,Anti-Climb Security Fence 5ft,PVC Coated Welded Fence Panel |
||
Product Description

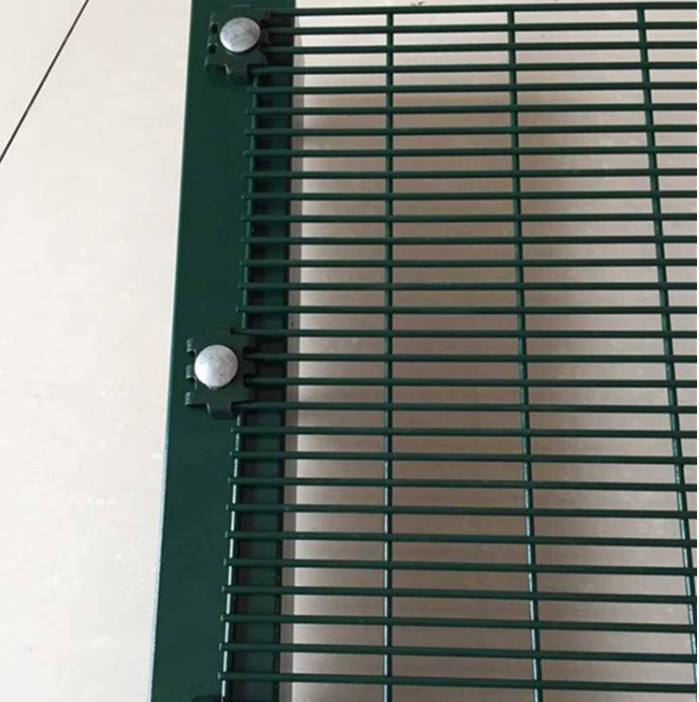

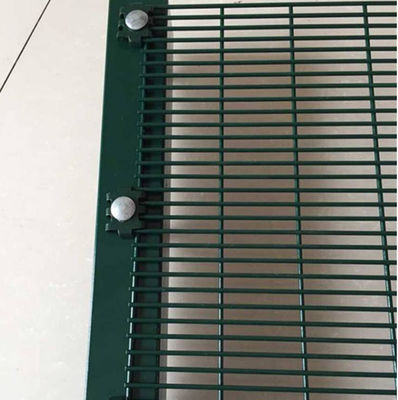

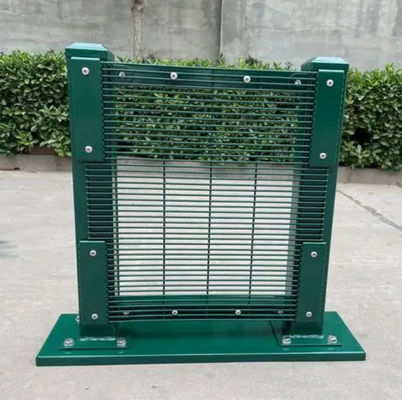

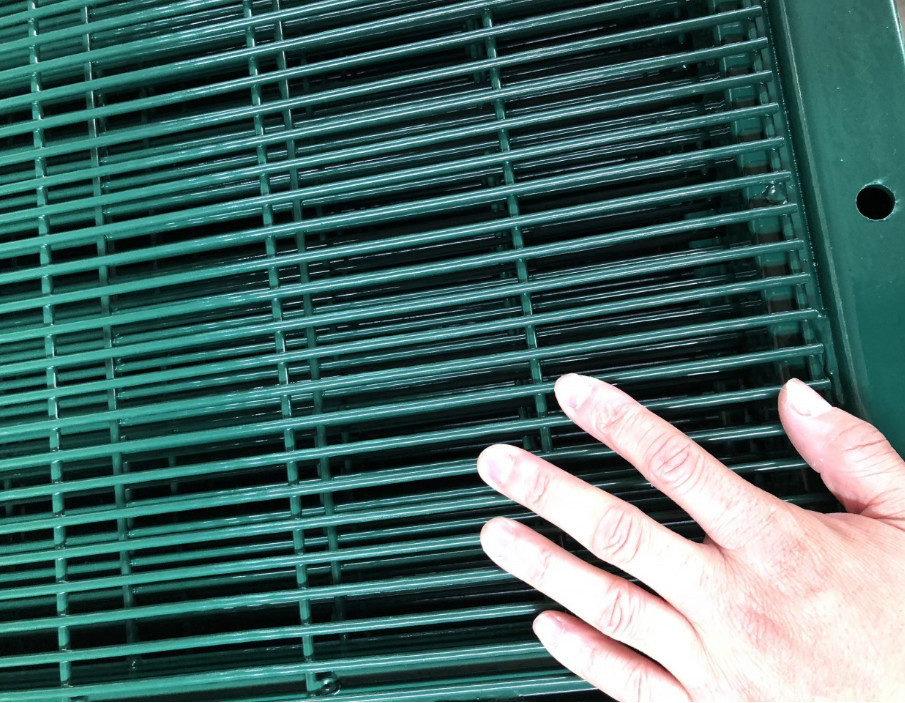

358 Anti Climb Security Fence 5ft PVC Coated Welded Fence Panel
Anti-Climb Fence & 358 High Security Fence
Anti-climb fence, also called High Security Fence,358 Fence, which is well-known as anti-climb & anti-cut.Using high quality carbon steel wire to weld a fence panel, it can provide privacy in some extent.Giant High security fences are used to give enduring and secure protection for the public buildings,commercial properties etc. High security fence can also be worked with electric alarm, detection systems etc. It is also widely used in military, airports, prisons etc.
Specifications of the panels
Wire thickness: 3.5mm, 4.0mm, 4.5mm, 5.0mm,etc
Mesh Opening: 12.7*76.2mm
Panel Size: 1.5*2m, 1.8*2.5m, 2*3m, etc
Post Size: 50*50mm, 60*60mm, 60*80mm, 80*80mm, etc
Post Thickness: 1.0mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, etc
Surface Treatment: Galvanized, Powder Coated
|
Line wire Cross wire |
Hole Size | Length | Height |
Bending No. |
Common Color | Surface Treatment |
|
4x3mm 4x4mm 4.5x3mm 4.5x4.5mm |
76.2x12.7mm 75x12mm |
2m 2.2m 2.4m 3m |
1800mm | 4 |
Green RAL 6005 Grey RAL 7016 Black RAL 9005 |
1.Hot-dipped galvanized after black wire welded
2.PVC coated after galvanized wire welded
3.PE coated after galvanized wire welded |
| 2000mm | 4 | |||||
| 2200mm | 4 | |||||
| 2400mm | 4 | |||||
| 2800mm | 5 | |||||
| 3000mm | 5 |

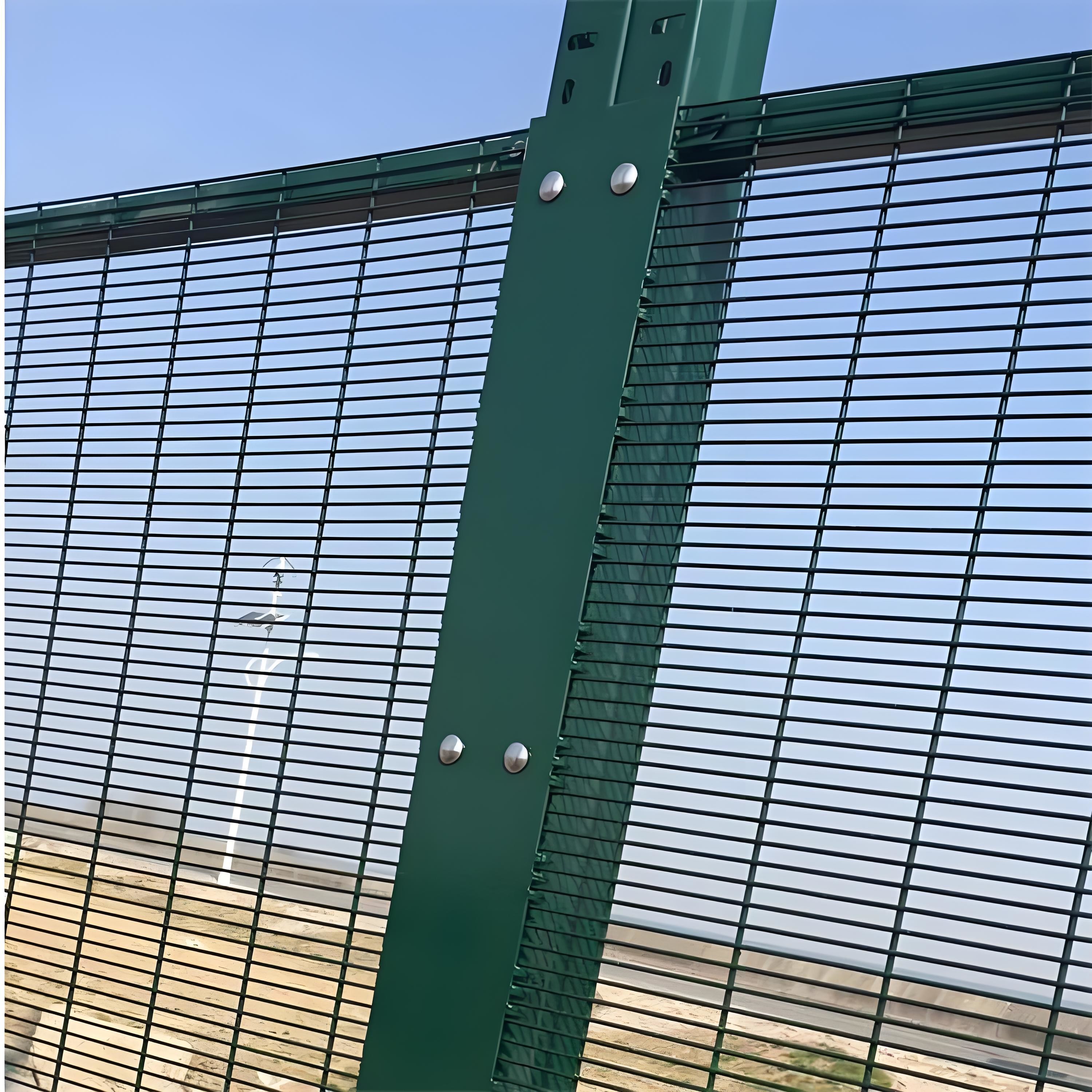

358 Fence With Square Type Post
| Post view | Size | Thickness | Panel height | Post Length | surface treatment |
| Itype post |
44x70mm 55x100mm |
1.8mm 2mm 2.5mm 3mm |
1830mm | 2400mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 2030mm | 2500mm | ||||
| 2230mm | 2800mm | ||||
| square post |
50x50mm 60x60mm 80x80mm 100x100mm |
2430mm | 3000mm | ||
| 2800mm | 3500mm | ||||
| 3000mm | 3700mm |
Surface Treatment
- Hot-Dipped Galvanized After Welding
- Electric Galvanized Then PVC Coated
- Electric Galvanized Then Powder Coated
Security Fence Details
Accessories: Clips and screws are packed by sets, plastic film + carton box. Carton Box Dimensions: 300*300*400m
Application
358 fence is designed as an anti-climbing and anti-cutting barrier with good weldability. It is therefore characterized by
security and durability. It is very suitable for electronic alarm and detection systems, prisons, fencing of military sites and
airports, industrial and commercial properties, warehouses, power plants, offshore petrochemical facilities, harbor perimeters,laboratories, secure hospitals, schools, and parks, recreational and entertainment areas.
Fence packaging
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
Our Service
1> Free Sample can be offered
2> Free Drawings can be offered
3> OEM and ODM order are accepted
4> Good Quality + Factory Price + Quick Response + Reliable Service
5> Provide visualization services to view production progress anytime and anywhere
6> Rich exporting market experience offered to enlarge your market
7> Warranty: Best quality products to be manufactured. if the quality is not meet your demand, we are sure to give you full
compensation in any way, money back or free reorder.
