Hot Dipped Galvanized Steel Grating For Walkway Platform Foot Plate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Galvanized Steel Grating | Material | Carbon Steel |
|---|---|---|---|
| Place Of Origin | Hebei, China | Surface Treatment | Hot Dipped Galvanized |
| Color | Sliver | Type | Plain Bar |
| Certificate | ISO9001 | Application | Office Building |
| Brand Name | LaiDi | Warranty | 1 Year |
| Highlight | Hot Dipped Galvanized Steel Grating,Hot Dip Galvanized Grating,Galvanised Steel Walkway Grating |
||
Product Description
Hot Dipped Galvanized Steel Grating For Walkway Platform Foot Plate
Product Description
Platform steel grid plate is made of flat steel in accordance with a certain distance and cross bar arrangement, and welded into a kind of steel products with a square grid in the middle, mainly used to do drain cover plate, steel structure platform plate,steel ladder step plate.The bar is generally made of twisted square steel.
Platform hot dip galvanized steel grid plate is generally made of carbon steel, hot dip galvanized surface, can play a role in
preventing oxidation.It can also be made of stainless steel.Hot dip galvanized steel grid has ventilation, lighting, heat
dissipation, anti-skid, explosion-proof and other properties.
Specification
Material :Mild steel & Low carbon steel, etc.
Surface treatment: hot-dipped galvanized, electric galvanized.
1)Bearing bar shapes: plain or serrated or I bar type.
2)Bearing Bar Pitch (center to center): 30, 40, 60mm are recommended,but we can also do it under customer's request.
3)Bearing Bar (Load Bar) Specifications (mm):The specification(thickness of bearing bar)of plain type and serrated type is 20 x 3 to 100 x 10;
4)Cross bar pitch(mm) :38, 40, 50, 60, 76, 80, 100, 110, 120 etc.
| Specifications of steel gratings: | ||
| No | Item | Description |
| 1 | Bearing bar of steel grating | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| 2 | Bearing bar pitch of steel grating | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
| 3 | Cross bar of steel grating | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| 4 | Cross bar pitch of steel grating | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as your requirement. |
| 5 | Surface treatment of steel grating | Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, |
| 6 | Flat bar type of steel grating | Plain, Serrated (tooth-like), I bar (I section) |
Steel Grating Type
Steel grating application

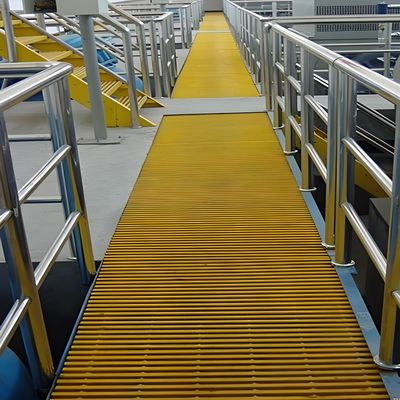

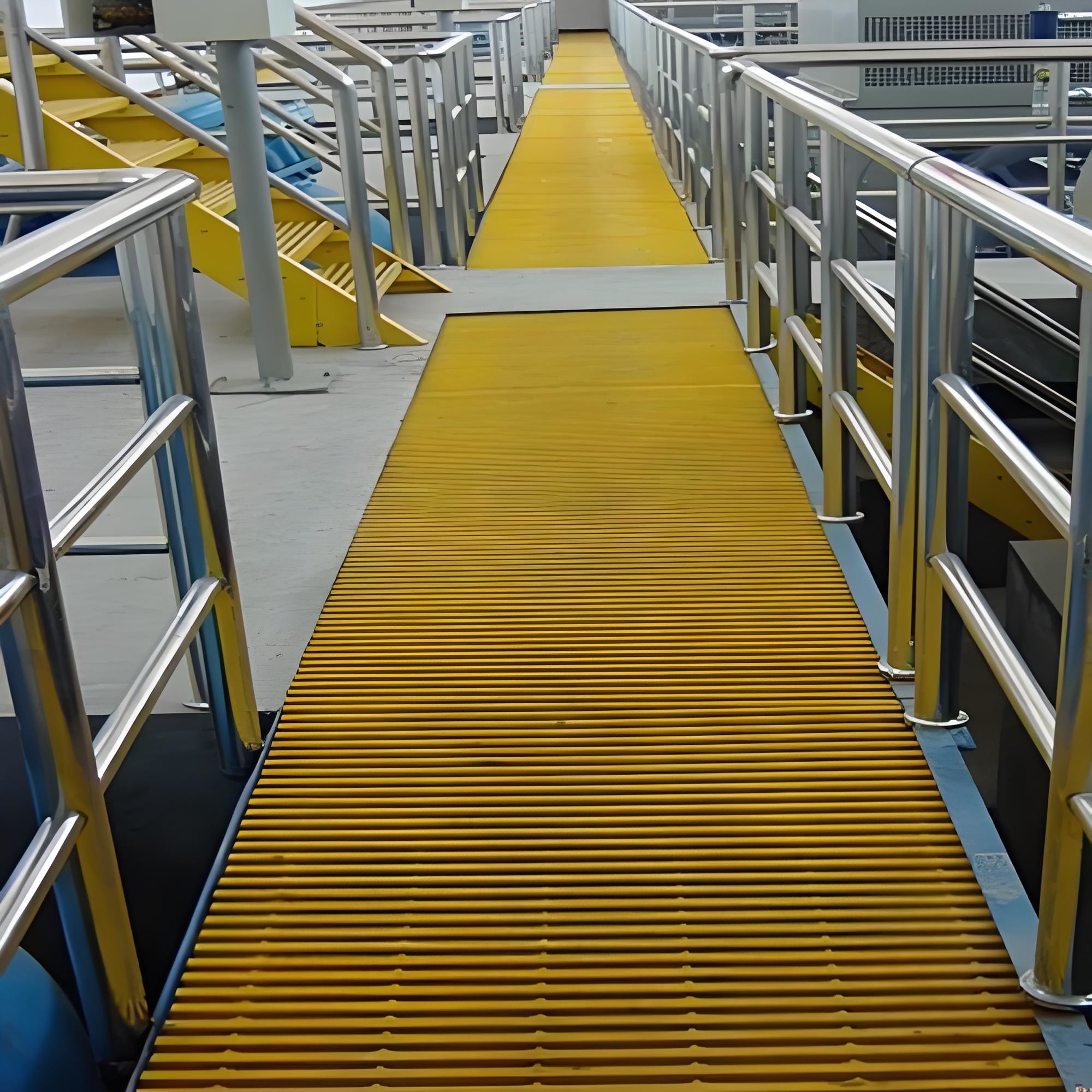

Application: electro forged step Steel griting are widely used by various plants such as electric power,petroleum,chemical industry,machinery industry,shipbuilding,harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.
It also used in bridges for vehicles and pedestrians.

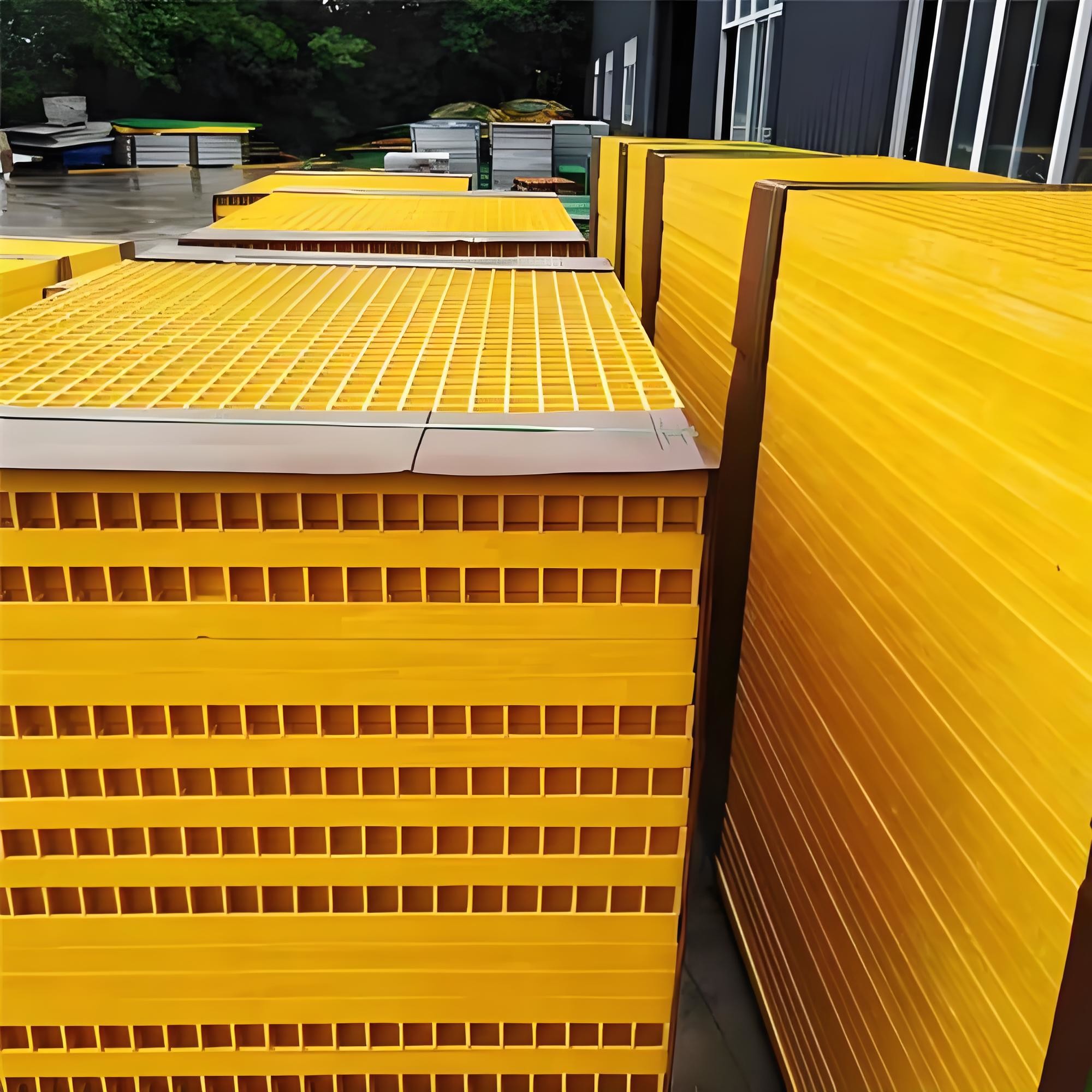

Packing & Delivery
FAQ
1. Are you factory/manufacturer or trader?
We are direct factory who owns production lines and workers. Everything is flexible and there is no need to worry about extra charges by the middle man or trader.
2. Which countries do you export to?
Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand,South Korea and so on.
3. Can I get free samples?
If the sample is available, yes, can be free. If unavailable, need to customize.
4. What is your minimum order quantity?
Actually there is no MOQ for our products. But usually we recommend a quantity based on the price which is easy to accept.
5. Which payment method you can accept?
Generally we adopt T/T, LC, Western Union, PayPal, Escrow and Money Gram.
